1974 Yamaha TW433F Engine Bracket Diagram

← All diagrams

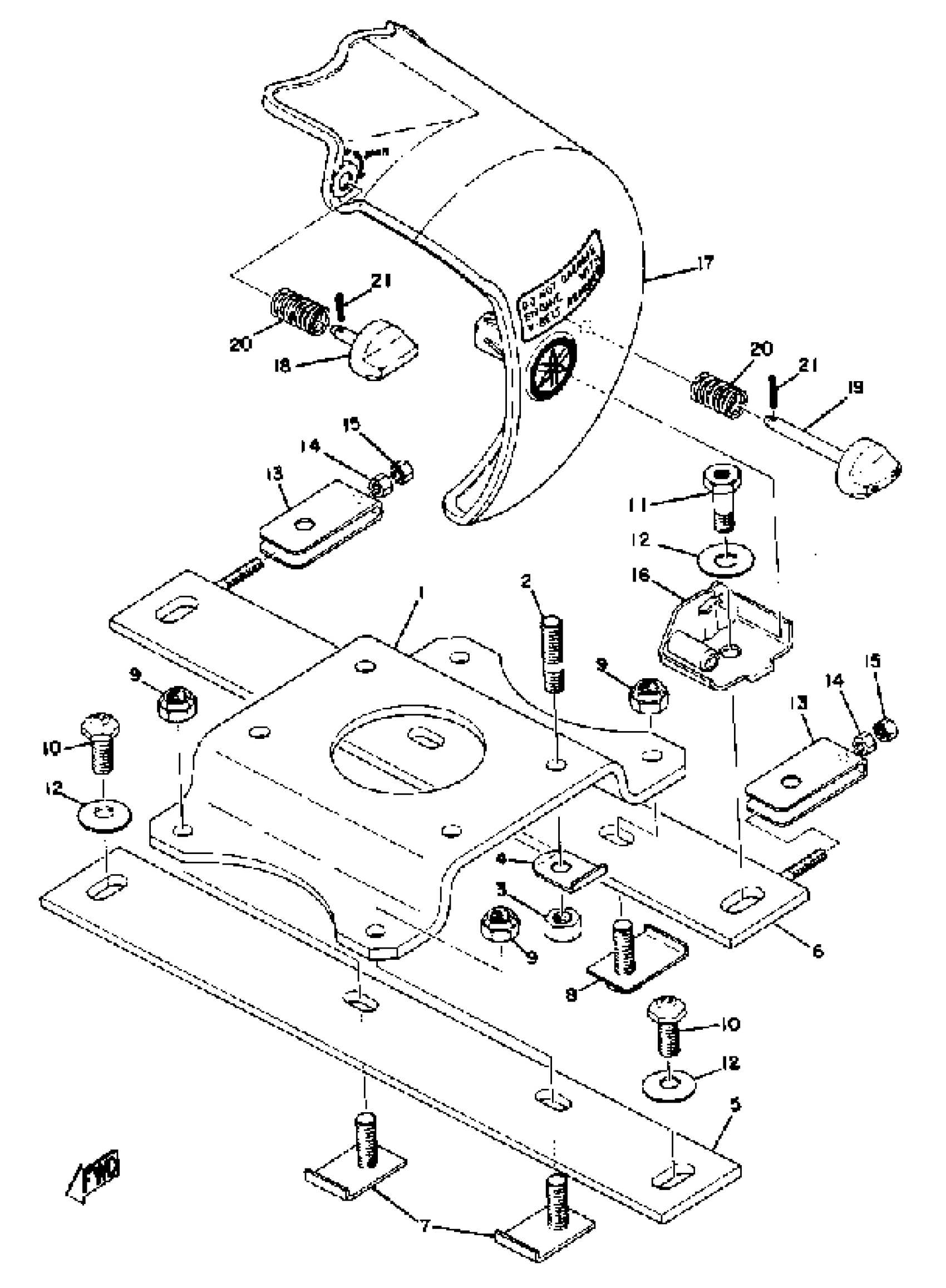

Find the part on the Engine Bracket diagram for your 1974 Yamaha TW433F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha TW433F Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

(838-21411-01-00)

1
Out of stock

2

BOLT, STUD

(90116-10084-00)

1
Out of stock

3

NUT, SELF LOCKING

90185-10031-00

1
Out of stock

4

WASHER, LOCK

(90215-10076-00)

1
Out of stock

5

BRACKET, ENGINE 2

(826-21419-00-00)

1
Out of stock

6

BRACKET, ENGINE 3

(868-21429-00-00)

1
Out of stock

7

BOLT, ENG MNTNG 2

(829-21482-00-00)

1
Out of stock

8

BOLT, ENG MNTNG 2

(838-21482-00-00)

1
Out of stock

9

NUT, SELF-LOCKING

90185-10030-00

1
Out of stock

10

BOLT, DOME HEAD

(90106-10015-00)

1
Out of stock

11

BOLT

(90101-10057-00)

1
Out of stock

12

WASHER, CONICAL SPR

90208-10013-00

1
Out of stock

13

PLATE, ENGINE ADJUSTING

(834-21475-00-00)

1
Out of stock

14

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

15

NUT(650)

95380-06700-00

1

$6.17

In stock

16

BRACKET 1

844-77315-00-00

1
Out of stock

17

GUARD, DRIVE

(841-77311-00-00)

1
Out of stock

18

KNOB

(829-77324-00-00)

1
Out of stock

19

KNOB

(853-77324-00-00)

1
Out of stock

20

SPRING 1

806-77325-00-00

1
Out of stock

21

PIN SPRING(664)

91690-40018-00

1

$3.23

In stock
