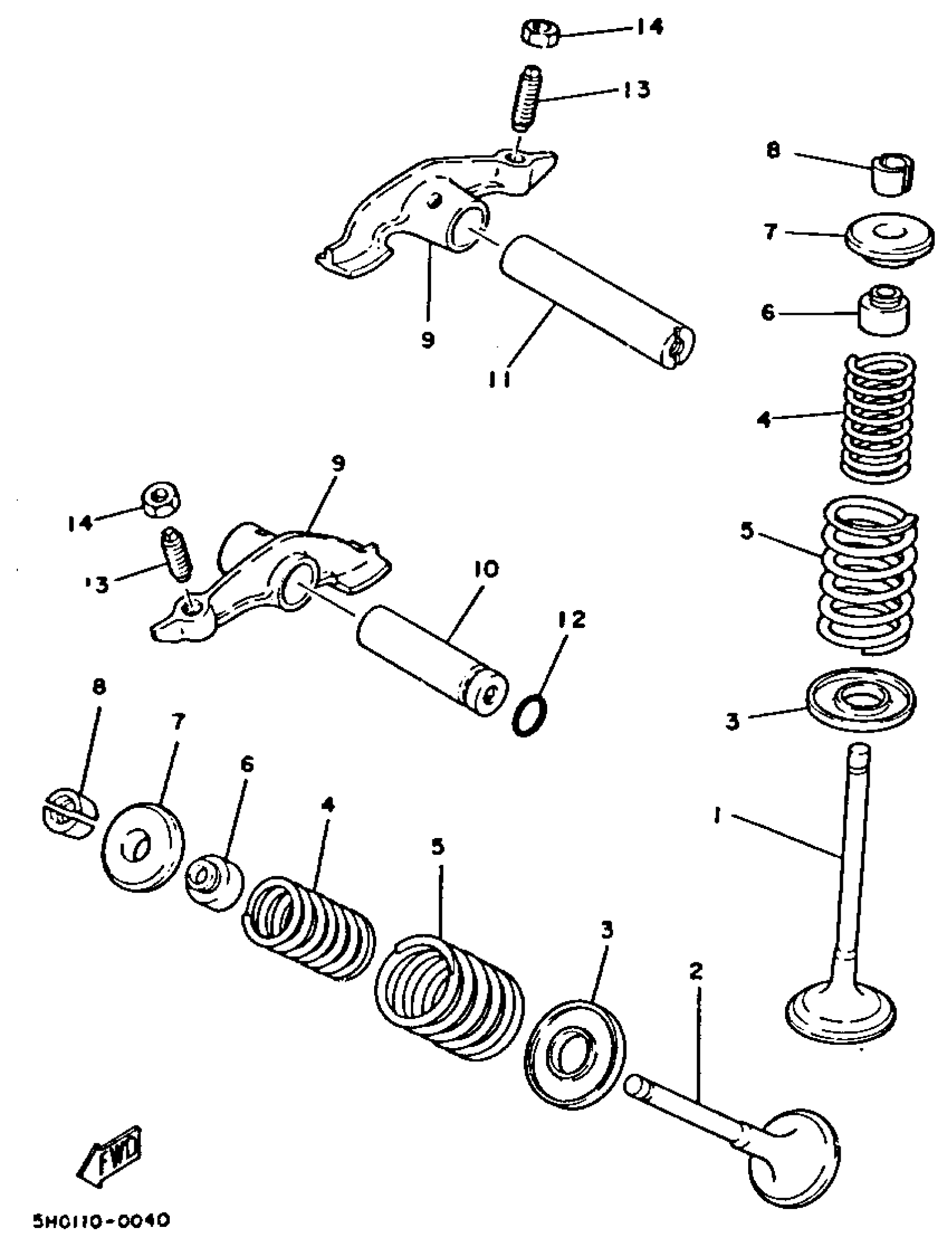

Yamaha TW200TC (TRAILWAY) 1987 VALVE Diagram

#

Description
Price

1

VALVE, INTAKE

5H0-12111-02-00

$34.28

2

VALVE, EXHAUST

5H0-12121-01-00

$51.85

3

SEAT, VALVE SPRING

4G0-12116-01-00

$12.47

4

SPRING, VALVE INNER

11H-12113-00-00

$19.66

5

SPRING, VALVE OUTER

11H-12114-00-00

$20.72

6

SEAL, VALVE STEM

5H0-12119-00-00

$14.04

7

RETAINER, VALVE SPRING

4G0-12117-00-00

$19.48

8

COTTER, VALVE

4G0-12118-00-00

$6.42

9

ARM, VALVE ROCKER

36X-12151-00-00

$39.20

10

SHAFT, ROCKER

5H0-12156-00-00

$32.73

11

SHAFT, ROCKER

5H0-12146-00-00

$24.04

12

O-RING (1J7)

93210-09350-00

$5.53

13

SCREW, VALVE ADJUSTING

2NX-12159-00-00

$9.75

14

NUT HEXAGON 371121580000

90170-06128-00

$5.87
