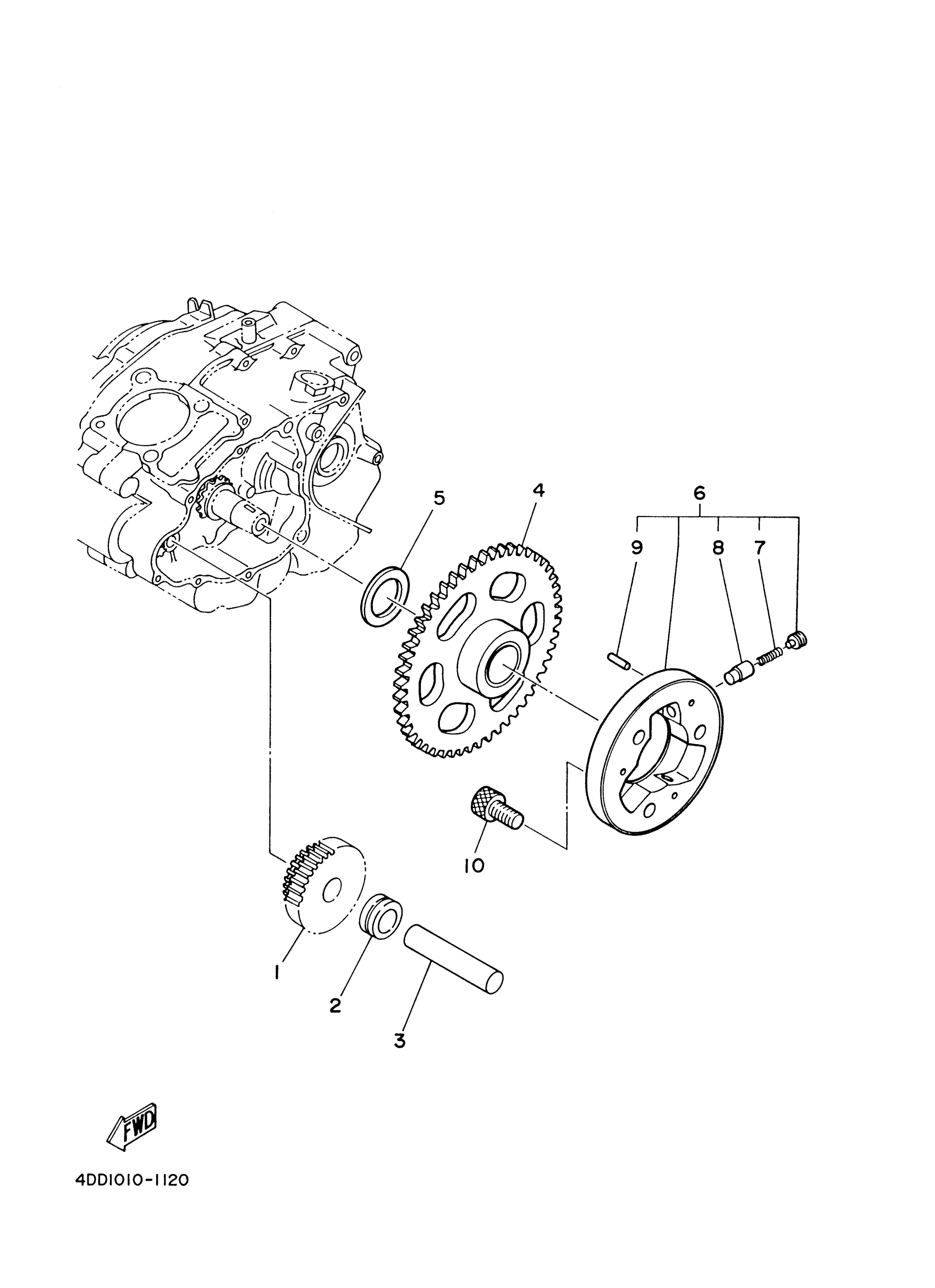

Yamaha TW200T2C (TW200) DC69 2026 STARTER Diagram

#

Description
Price

1

GEAR, IDLER 1

2HT-15512-00-00

Unavailable

2

COLLAR(19W)

90387-125Y0-00

$13.14

3

SHAFT 1

5H0-15521-00-00

Unavailable

4

GEAR, IDLER 2

5H0-15517-00-00

$145.61

5

WASHER, PLATE(1FK)

90201-256K6-00

Unavailable

6

STARTER CLUTCH OUTER ASSY

4H7-15580-10-00

$151.15

7

SPRING, COMPRESSION (4H7)

90501-04596-00

$6.39

8

CAP, STARTER CLUTCH

1J7-15583-01-00

$15.49

9

PIN,DOWEL(341)

93615-12088-00

$5.25

10

BOLT,SOCKET

91314-08020-00

$5.75
