2026 Yamaha TW200 (TW200T2C) Flasher Light Diagram

← All diagrams

Find the part on the Flasher Light diagram for your 2026 Yamaha TW200 (TW200T2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

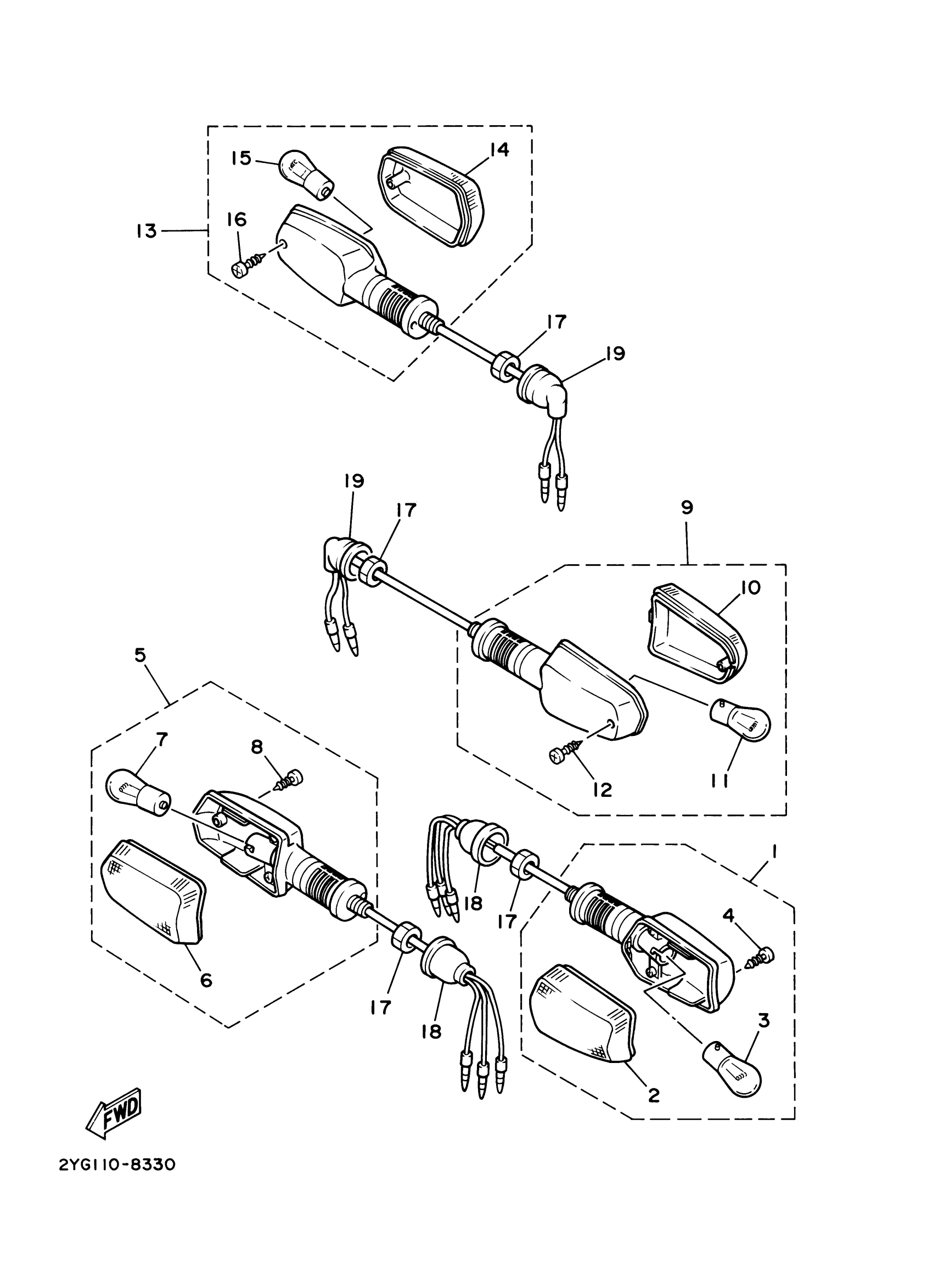

2026 Yamaha TW200 (TW200T2C) Flasher Light Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FLASHER LIGHT ASSY 1

1UF-83310-00-00

1
Out of stock

2

LENS, FLASHER

51L-83332-01-00

—
Out of stock

3

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

1
Out of stock

4

SCREW, PAN TAP.2

97707-40520-00

1
Out of stock

5

FRONT FLASHER LIGHT ASSY 2

1UF-83320-00-00

1
Out of stock

6

LENS, FLASHER 2

51L-83342-01-00

1
Out of stock

7

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

1
Out of stock

8

SCREW, PAN TAP.2

97707-40520-00

1
Out of stock

9

REAR FLASHER LIGHT ASSY 1

1UF-83330-00-00

—
Out of stock

10

LENS, FLASHER 2

51L-83342-01-00

1
Out of stock

11

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

12

SCREW, PAN TAP.2

97707-40520-00

1
Out of stock

13

REAR FLASHER LIGHT ASSY 2

1UF-83340-00-00

1
Out of stock

14

LENS, FLASHER

51L-83332-01-00

—
Out of stock

15

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

16

SCREW, PAN TAP.2

97707-40520-00

1
Out of stock

17

NUT, HEXAGON SMALL

95317-12700-00

—
Out of stock

18

CAP

10V-83365-01-00

—
Out of stock

19

CAP

18G-83365-00-00

—
Out of stock
