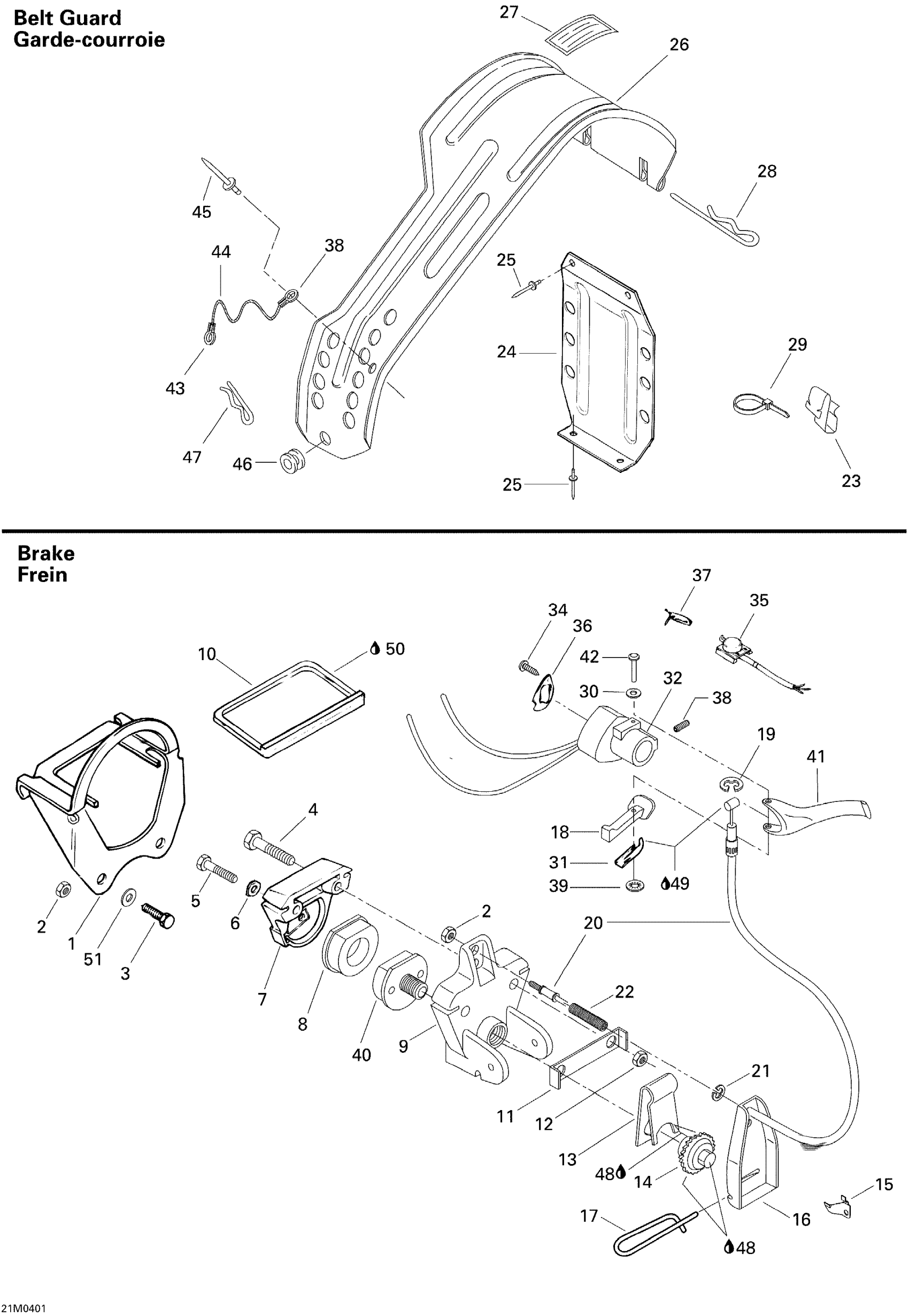

Ski-Doo Tundra R, 2003 06- Brake And Belt Guard Diagram

#

Description
Price

1

Welded Caliper Support

507032201

Unavailable

2

Elastic Stop Nut M6

232561414

$0.55

3

Hex. Screw M6 X 25

207162544

$1.15

4

Hex. Screw M8 X 50

207085044

$1.48

5

Hex. Screw M5 X 14

207151444

$0.87

6

TAB LOCK - Call your local BRP dealership

507023600

Unavailable

7

ANVIL - Call your local BRP dealership

414466800

Unavailable

8

Brake Pad

860700100

$52.99

9

Caliper Machined

507026600

Unavailable

10

Slider

572013500

Unavailable

11

LOCK-TAB - Call your local BRP dealership

507020400

Unavailable

12

Hex. Elastic Stop Nut M8

232581414

$0.56

13

RELEASE SPRING - Call your local BRP dealership

507020200

Unavailable

14

WELDED RATCHET WHEEL - Call your local BRP dealership

507032310

Unavailable

15

RATCHET SPRING - Call your local BRP dealership

507009400

Unavailable

16

LEVER - Call your local BRP dealership

507021500

Unavailable

17

HAIR PIN - Call your local BRP dealership

507032306

Unavailable

18

Brake Lever

572025200

Unavailable

19

Circlip

414274500

$0.90

20

BRAKE CABLE - Call your local BRP dealership

507032347

Unavailable

21

Circlip

371901300

Unavailable

22

SPRING - Call your local BRP dealership

414460600

Unavailable

23

Clip

414227300

$1.67

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Pop Rivet 3/16"

390402400

$0.35

26

Belt Guard Ass'y

417300181

Unavailable

27

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

28

Pin

517164600

Unavailable

29

Tie-Rap 180 mm

414115200

$0.11

30

WAVE SPRING WASHER METALCRAFT - Call your local BRP dealership

414729400

Unavailable

31

SPRING - Call your local BRP dealership

507032317

Unavailable

32

BRAKE HOUSING ASS'Y - Call your local BRP dealership

507032313

Unavailable

33

BRAKE HOUSING - Call your local BRP dealership

572086500

Unavailable

34

Screw

414473200

Unavailable

35

Dimmer Switch

415085800

Unavailable

36

DIMMER SWITCH - Call your local BRP dealership

507032314

Unavailable

37

Brake Switch

507032318

Unavailable

38

Socket Set Screw M8 X 10

414440800

$4.12

39

Push Nut

389804300

$0.53

40

Pad_Brake Kit - Call your local BRP dealership

860700700

Unavailable

41

BRAKE HANDLE - Call your local BRP dealership

572025700

Unavailable

42

PIN - Call your local BRP dealership

517229400

Unavailable

43

Terminal Ring

561502800

Unavailable

44

Not Available As Spare Part - Friction Washer

Unavailable

45

Rivet 3/16"

293150102

$0.70

46

Grommet

414036300

$2.79

47

Hair Pin

414575600

$1.89

48

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

49

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

50

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

51

Flat Washer 6 mm

234061410

$1.36
