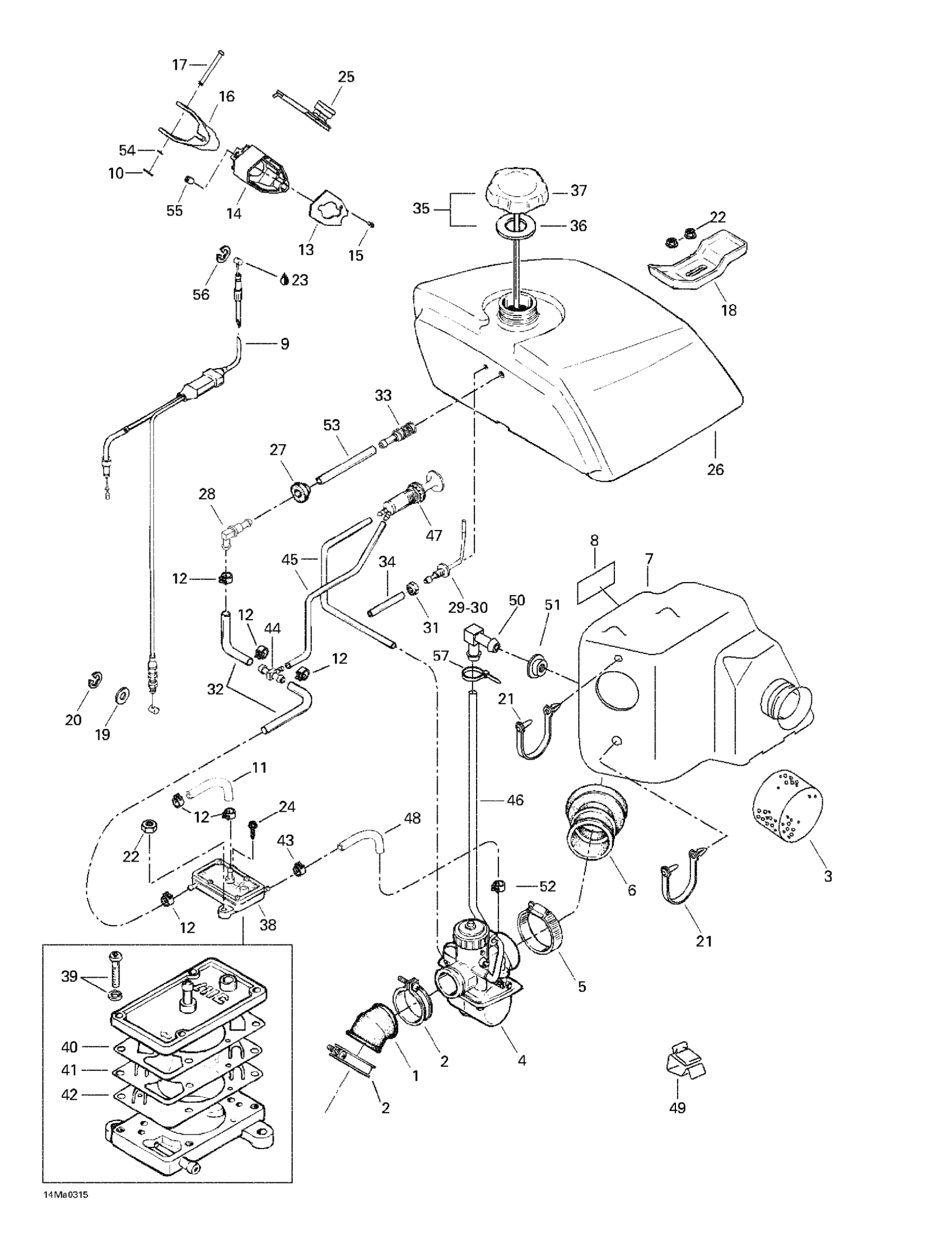

Ski-Doo Tundra R, 2003 02- Fuel System Diagram

#

Description
Price

1

Rubber Flanged

570025400

$62.49

2

TRIDON GEAR CLAMP - Call your local BRP dealership

408801900

Unavailable

3

Air Filter

414819900

Unavailable

4

Carburetor Vm-34

403138753

Unavailable

5

Tridon Gear Clamp

408802000

Unavailable

6

Carburetor Adaptor

570136300

$35.99

7

Not Available As Spare Part - Friction Washer

Unavailable

8

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

9

THROTTLE CABLE - Call your local BRP dealership

512059614

$104.99

10

Circlip | Model-RS

414439000

$4.23

11

Hose

219704549

$50.99

12

Spring Clamp

414415200

$0.88

13

Plate

512060390

$10.33

14

Throttle Housing

512060603

$12.49

15

Screw

414473200

Unavailable

16

Handle Ass'y

512060214

$124.99

17

Lever Pin

414438700

$11.64

18

Bracket Seat-tank

517159500

Unavailable

19

Flat Washer 8 mm, Nylon

234081100

$1.39

20

Circlip

414753500

$0.71

21

CABLE CLIP - Call your local BRP dealership

414379300

Unavailable

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

23

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

24

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

25

Kill Switch

515175410

Unavailable

26

Fuel Tank

513032960

Unavailable

27

Grommet

709200285

$9.69

28

Elbow Male Connector

414580600

$4.23

29

Vent Fitting | Includes Items 4 to 6

513031100

Unavailable

30

Fitting

513031701

Unavailable

31

HEX. NUT 5/16-18 YIC - Call your local BRP dealership

396302200

Unavailable

32

Hose

219704549

$50.99

33

Fuel Filter

414865700

$10.99

34

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

35

Fuel Tank Cap

513033025

$24.49

36

Fuel Tank Cap

513033025

$24.49

37

Fuel Tank Cap

513033025

$24.49

38

FUEL PUMP DF44-226A - Call your local BRP dealership

403800800

$84.99

39

Screw

404118500

Unavailable

40

Packing (Cap)

404901600

Unavailable

41

Diaphragm

404901700

Unavailable

42

Membrane

404901800

Unavailable

43

Spring Clamp

414415200

$0.88

44

T-fitting

414222500

$1.69

45

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

46

HOSE - Call your local BRP dealership

404161880

Unavailable

47

Primer

415060500

$34.99

48

Hose

219704549

$50.99

49

Clip

414227300

$1.67

50

Male Connector

414814100

$2.22

51

Grommet

513032908

$10.49

52

Spring Clamp

513033014

Unavailable

53

Hose

414110000

Unavailable

54

Flat Washer M5, Stainless

234051600

$0.77

55

Socket Set Screw M8 X 10

414440800

$4.12

56

Circlip

293370020

Unavailable

57

Tie Wrap 94 mm | 4X4

293750001

$1.03
