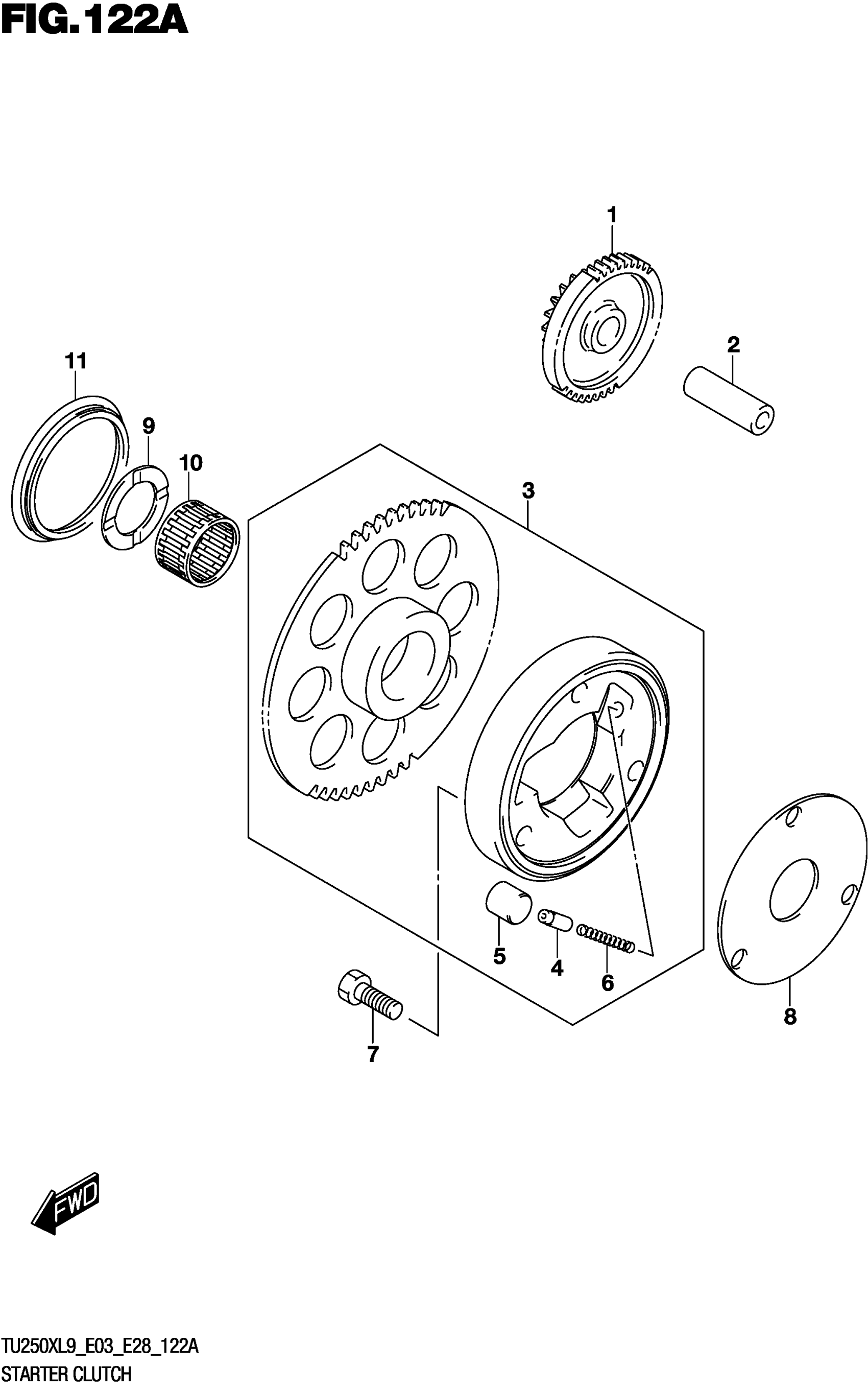

Suzuki TU250XL9 (2019) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR

12611-38301

$93.87

2

PIN (7.4X13X40)

09206-13007

$17.38

3

CLUTCH SET

12600-38815

$290.08

4

.PIECE

12633-31000

$8.27

5

.PIN (14X13)

09261-14001

$5.00

6

.SPRING

09440-04015

$2.24

7

BOLT (8X20)

09100-08299

$4.53

8

SHIM

12649-49300

$20.33

9

WASHER (27X40X2.5)

09160-27005

$14.07

10

BEARING (27X32X21.8)

09263-27004

$36.03

11

OIL SEAL (52X62X6.8)

09289-52002

$34.08
