2019 Suzuki TU250XL9 Frame Cover Diagram

← All diagrams

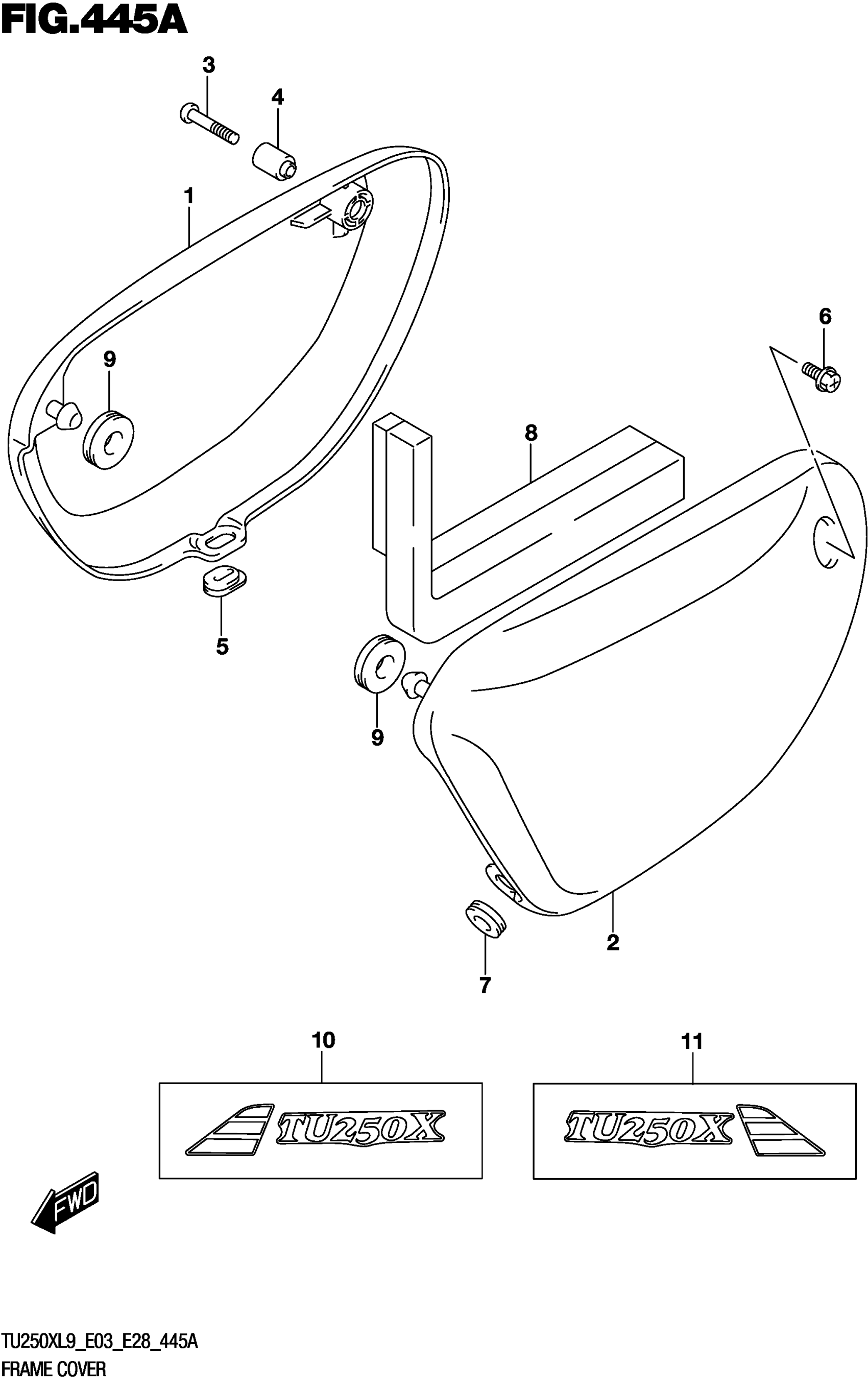

Find the part on the Frame Cover diagram for your 2019 Suzuki TU250XL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki TU250XL9 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

1

$85.72

In stock

1-2

COVER | FOR YVB

47111-26G10-YVB

1

$90.82

In stock

2-1

COVER, FRAME LH (WHITE) | FOR AGT

47211-26G11-YWW

1
Out of stock

2-2

COVER | FOR YVB

47211-26G11-YVB

1

$94.28

In stock

3

SCREW (6X35.5) | RH

09123-06028

1

$2.92

In stock

4

1

$9.67

In stock

5

CUSHION | RH

09320-03004

1
Out of stock

6

BOLT (6X16.5) | LH

09111-06095

1

$2.31

In stock

7

CUSHION (8X22X7) | LH This part replaces 09320-08013.

09320-08509

1
Out of stock

8

CUSHION

47160-26G00

1
Out of stock

9

CUSHION (8x26x7)

09320-08018

2
Out of stock

10-1

1

$29.88

In stock

10-2

1

$29.88

In stock

11-1

1

$29.88

In stock

11-2

1

$29.88

In stock
