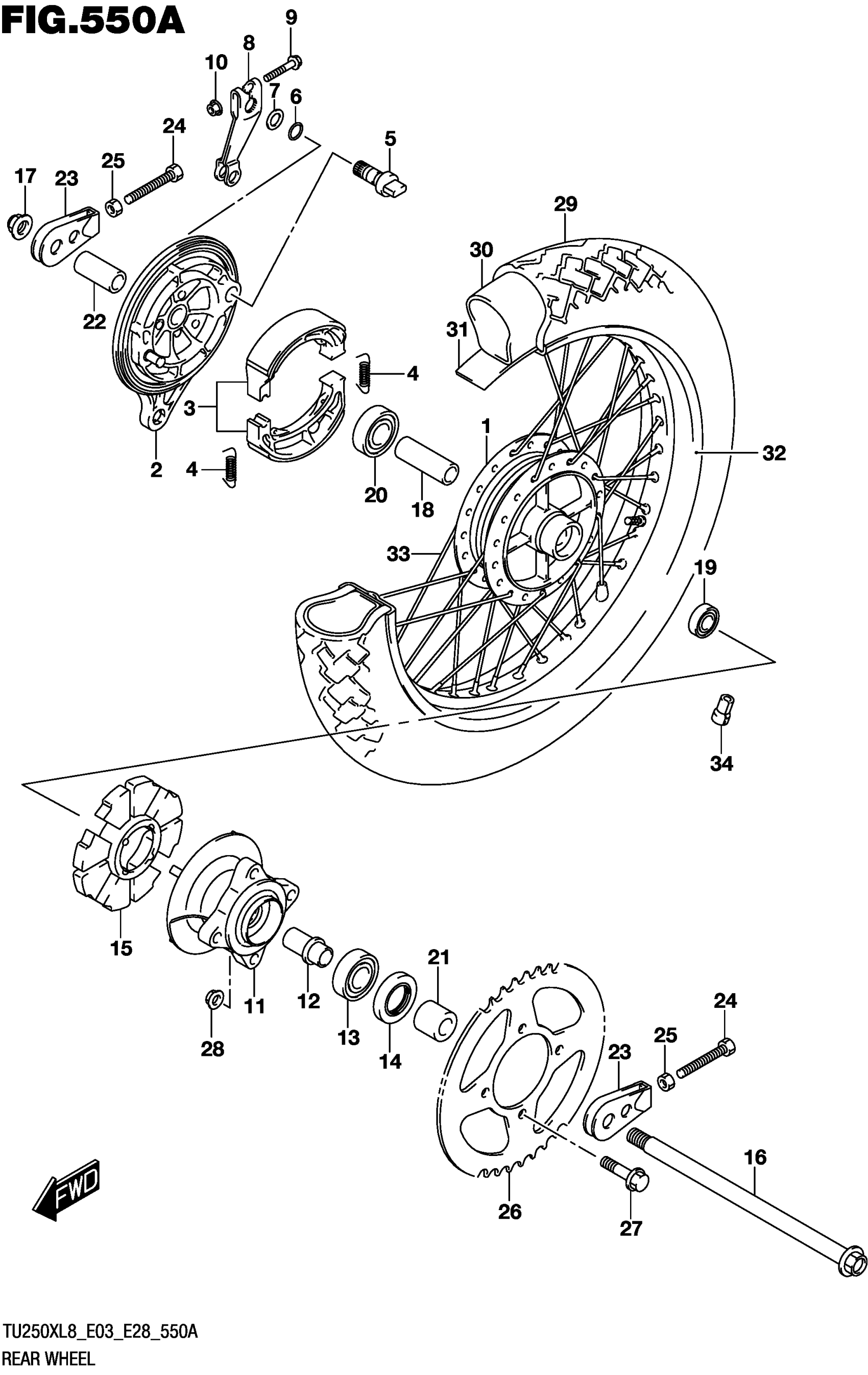

Suzuki TU250XL8 (2018) REAR WHEEL Diagram

#

Description
Price

1

HUB

64110-07005

Unavailable

2

PANEL

64210-39115

$171.37

3

SHOE

54402-07810

$43.85

4

SPRING This part replaces 09443-07001.

09443-07025

$1.68

5

CAM

54441-29305

$22.58

6

O RING (D:2.5,ID:13.8)

09280-14011

$4.30

7

WASHER (14.5X22X1.6)

09160-14055

$2.40

8

LEVER

64451-38210

$38.76

9

BOLT

01550-0635B

$2.75

10

NUT

08316-1006B

$2.50

11

DRUM

64610-38300

Unavailable

12

RETAINER

64733-38300

Unavailable

13

BEARING (20X47X14)

09262-20069

$21.00

14

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$11.27

15

ABSORBER

64651-07001

$18.30

16

AXLE

64711-08320

$62.78

17

NUT

08319-3114A

$8.84

18

SPACER (15.3X21.7X63)

09180-15011

$8.90

19

BEARING | LH

08143-62027

$14.44

20

BEARING | RH

09262-15059

$25.78

21

SPACER (15X28X24.8)

09180-15061

Unavailable

22

SPACER (15X22X46.8)

09180-15060

Unavailable

23

ADJUSTER

61410-38310

$37.52

24

BOLT (8X50)

09100-08303

$3.38

25

NUT

08310-0008B

$2.95

26

SPROCKET

64511-25D00

$112.01

27

BOLT (10X40)

09103-10044

$5.10

28

NUT

08319-3110A

$2.73

29

TIRE | C-822

65110-26G10

$222.10

29

TIRE | CHENG SHIN RUBBER

65110-26G10

$222.10

30

TUBE ASSY

65200-26G10

$53.93

31

PROTECTOR

55261-26G00

$45.43

32

RIM

65311-26G00

Unavailable

33

SPOKE SET

65320-26G00

Unavailable

34

BALANCER WHEEL (15G)

55411-26G00

$8.73

34

BALANCER WHEEL (30G)

55413-41F00

$9.95
