2018 Suzuki TU250XL8 Front Fork Damper Diagram

← All diagrams

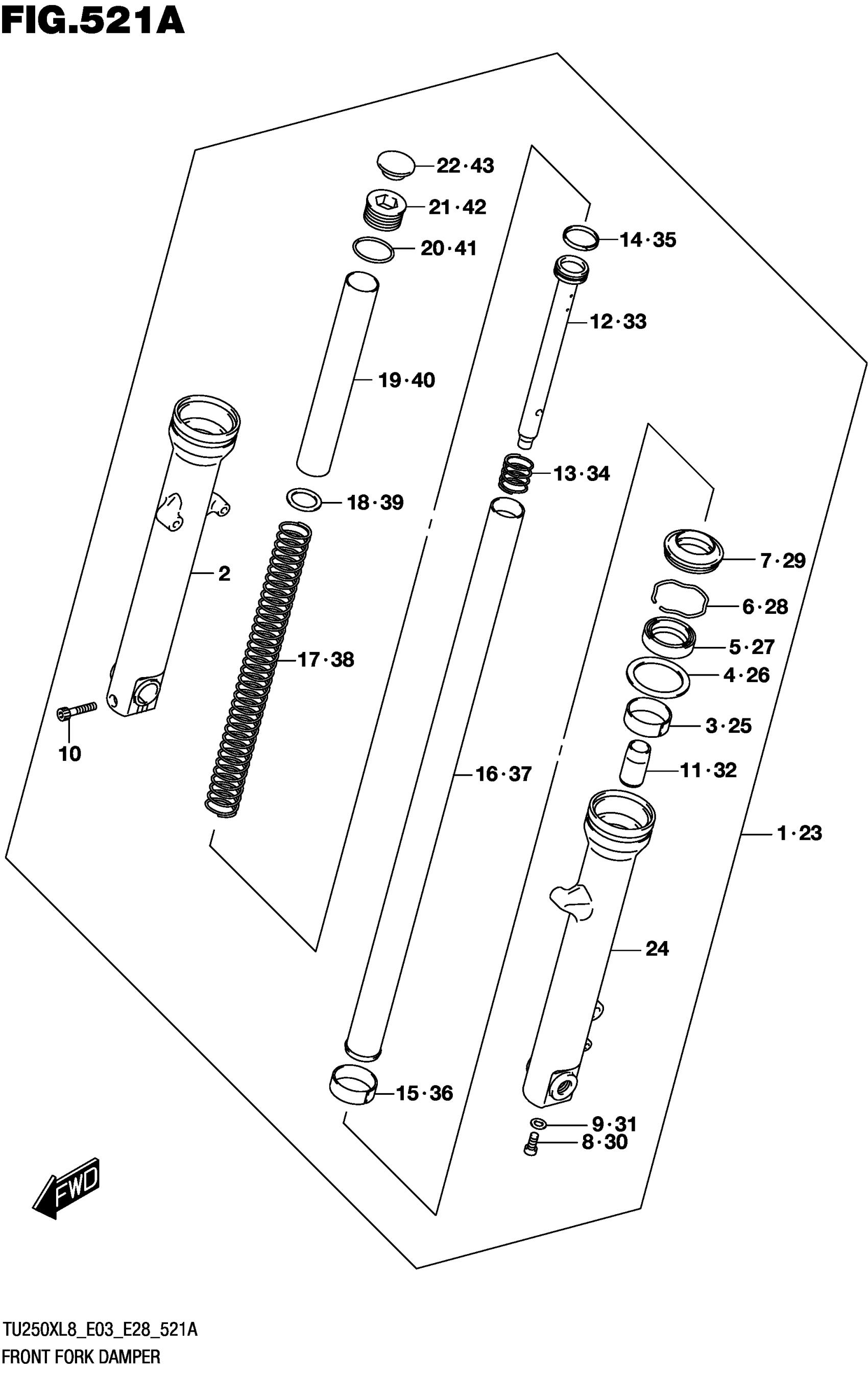

Find the part on the Front Fork Damper diagram for your 2018 Suzuki TU250XL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki TU250XL8 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY

51103-26G00

1
Out of stock

2

.TUBE

51130-26G00

1
Out of stock

3

.BUSH

51152-25D00

1
Out of stock

4

.SPACER,SEAL

51168-38A00

1
Out of stock

5

.SEAL,OIL

51153-03B30

1
Out of stock

6

.RING,STOPPER

51156-03B30

1
Out of stock

7

.SEAL

51173-25D00

1
Out of stock

8

.BOLT (8X27)

51147-48130

1
Out of stock

9

.GASKET (8.2X13X1.5)

51148-36011

1
Out of stock

10

.BOLT

07130-08357

1
Out of stock

11

.PIECE

51195-25D00

1
Out of stock

12

.CYLINDER

51146-25D00

1
Out of stock

13

.SPRING

51177-25D00

1
Out of stock

14

.RING

51196-25D00

1
Out of stock

15

.BUSH,SLIDE

51121-03B30

1
Out of stock

16

.TUBE

51110-25D00

1
Out of stock

17

.SPRING

51171-26G00

1
Out of stock

18

.JOINT

51192-25D00

1
Out of stock

19

.SPACER

51176-25D00

1
Out of stock

20

.O RING

51117-25D00

1
Out of stock

21

.BOLT

51189-25D00

1
Out of stock

22

.CAP

51351-03D00

1
Out of stock

23

DAMPER ASSY

51104-26G00

1
Out of stock

24

.TUBE

51140-26G00

1
Out of stock

25

.BUSH

51152-25D00

1
Out of stock

26

.SPACER,SEAL

51168-38A00

1
Out of stock

27

.SEAL,OIL

51153-03B30

1
Out of stock

28

.RING,STOPPER

51156-03B30

1
Out of stock

29

.SEAL

51173-25D00

1
Out of stock

30

.BOLT (8X27)

51147-48130

1
Out of stock

31

.GASKET (8.2X13X1.5)

51148-36011

1
Out of stock

32

.PIECE

51195-25D00

1
Out of stock

33

.CYLINDER

51146-25D00

1
Out of stock

34

.SPRING

51177-25D00

1
Out of stock

35

.RING

51196-25D00

1
Out of stock

36

.BUSH,SLIDE

51121-03B30

1
Out of stock

37

.TUBE

51110-25D00

1
Out of stock

38

.SPRING

51171-26G00

1
Out of stock

39

.JOINT

51192-25D00

1
Out of stock

40

.SPACER

51176-25D00

1
Out of stock

41

.O RING

51117-25D00

1
Out of stock

42

.BOLT

51189-25D00

1
Out of stock

43

.CAP

51351-03D00

1
Out of stock
