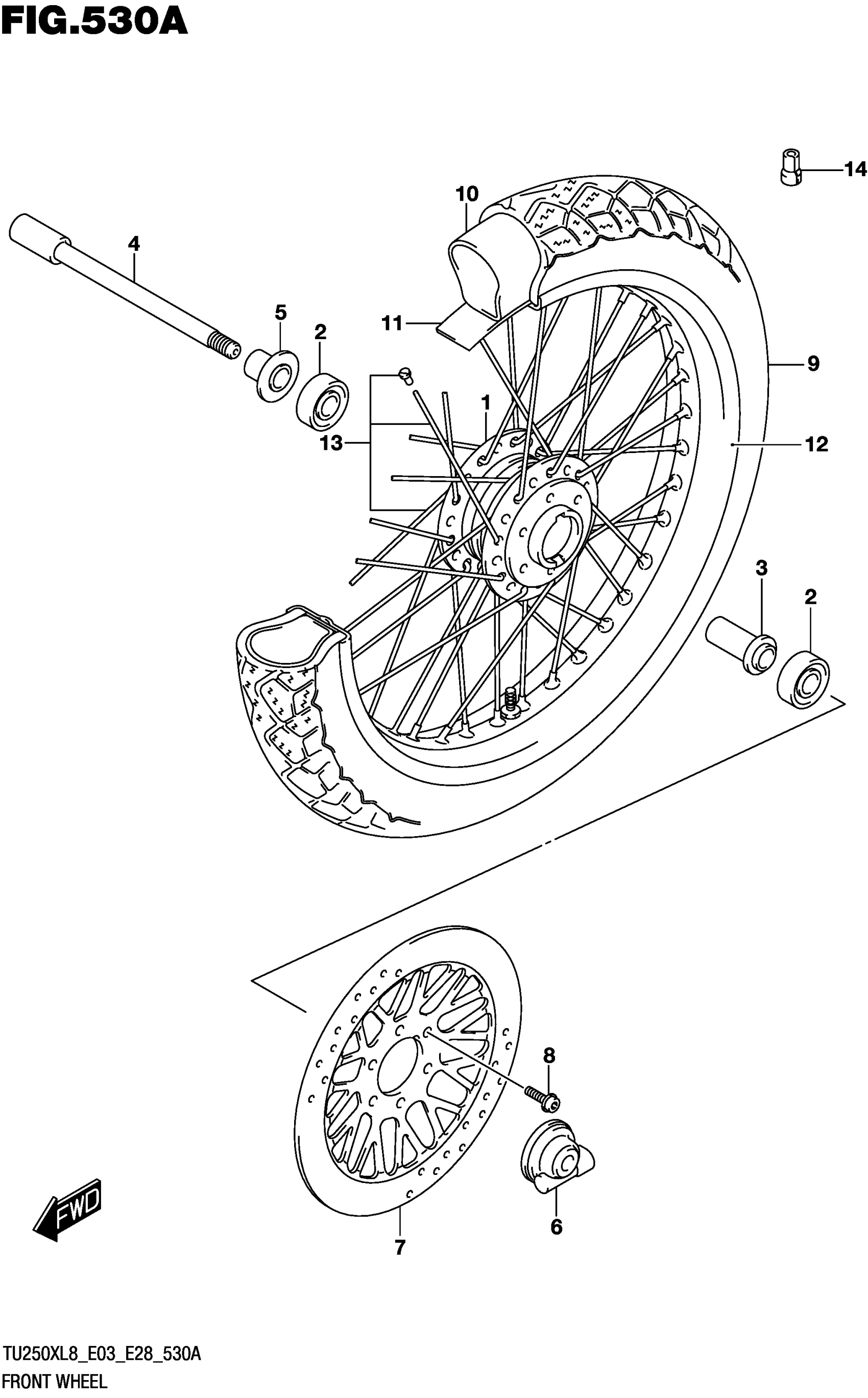

Suzuki TU250XL8 (2018) FRONT WHEEL Diagram

#

Description
Price

1

HUB

54111-25D30

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$20.52

3

SPACER

54730-18400

$23.08

4

AXLE

54711-45C01

Unavailable

5

SPACER

54740-18410

$23.08

6

BOX ASSY,SPEEDO This part replaces 54600-37301.

54600-37302

$103.80

7

DISC

59221-26G00

$358.35

8

BOLT (8X30)

09106-08131

$4.53

9

TIRE | C-6009

55110-26G10

$120.33

9

TIRE | CHENG SHIN RUBBER

55110-26G10

$120.33

10

TUBE

55200-26G10

$54.07

11

PROTECTOR

55261-26G00

$45.43

12

RIM

55311-25D00

$218.98

13

SPOKE ASSY

55320-18420

$83.02

14

BALANCER WHEEL (15G)

55411-26G00

$8.73

14

BALANCER WHEEL (30G)

55413-41F00

$9.95
