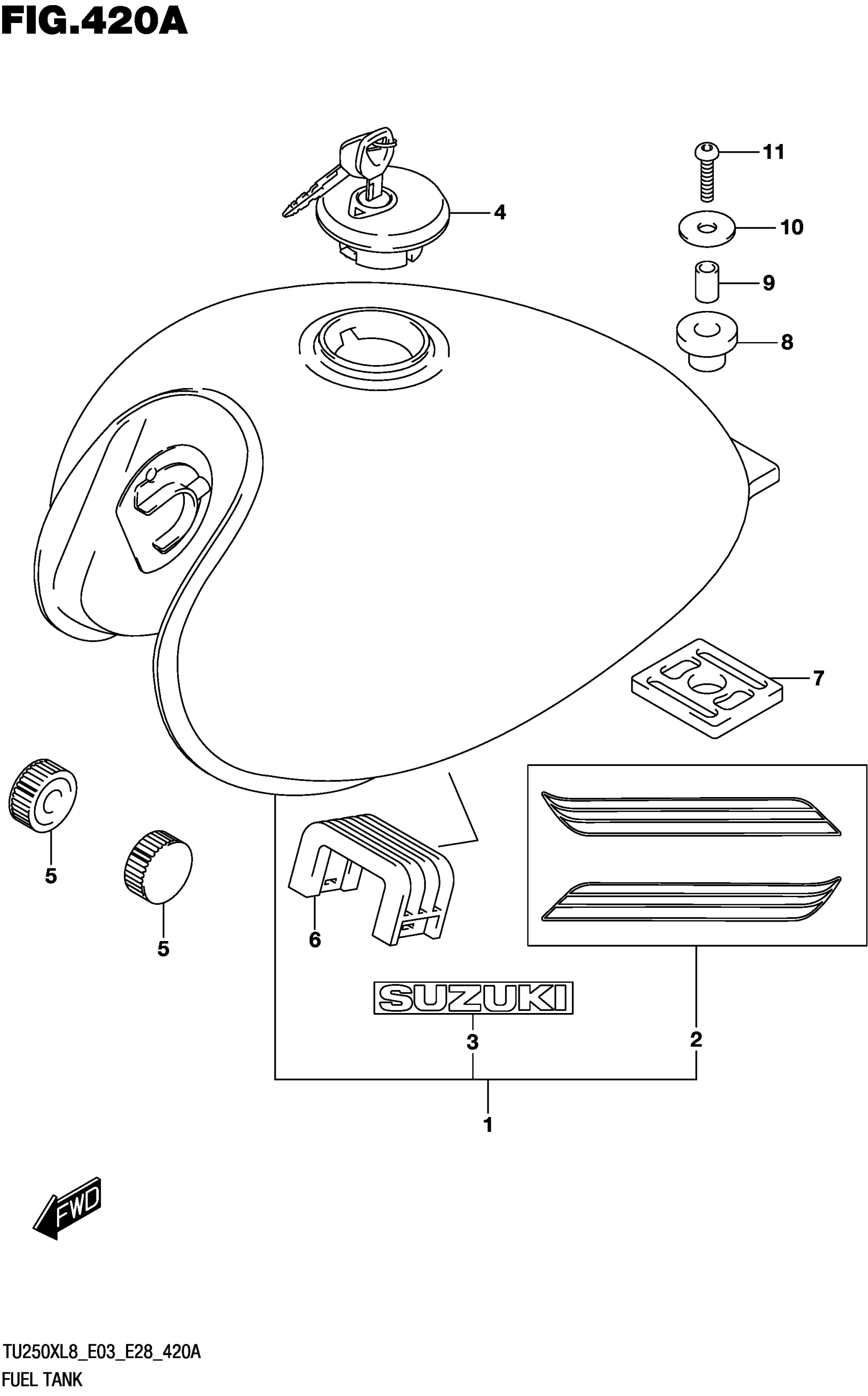

Suzuki TU250XL8 (2018) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY

44100-26G80-YVB

Unavailable

2

.TAPE SET

68110-26G30-BMS

$80.05

3

.EMBLEM

68111-47C10-30H

Unavailable

4

CAP SET,FUEL TA This part replaces 44200-24840.

44200-24842

$188.87

5

CUSHION

09329-10016

$2.80

6

CUSHION

44541-38200

Unavailable

7

CUSHION,FUEL TANK RR LWR This part replaces 44542-41F00.

44542-41F01

$8.02

8

CUSHION,FUEL TANK RR UPR This part replaces 44541-41F01.

44541-41F02

$4.97

9

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

$2.07

10

WASHER (8.5X33X1.5)

09160-08146

$2.58

11

BOLT

07120-0835B

$4.98
