2018 Suzuki TU250XL8 Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2018 Suzuki TU250XL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

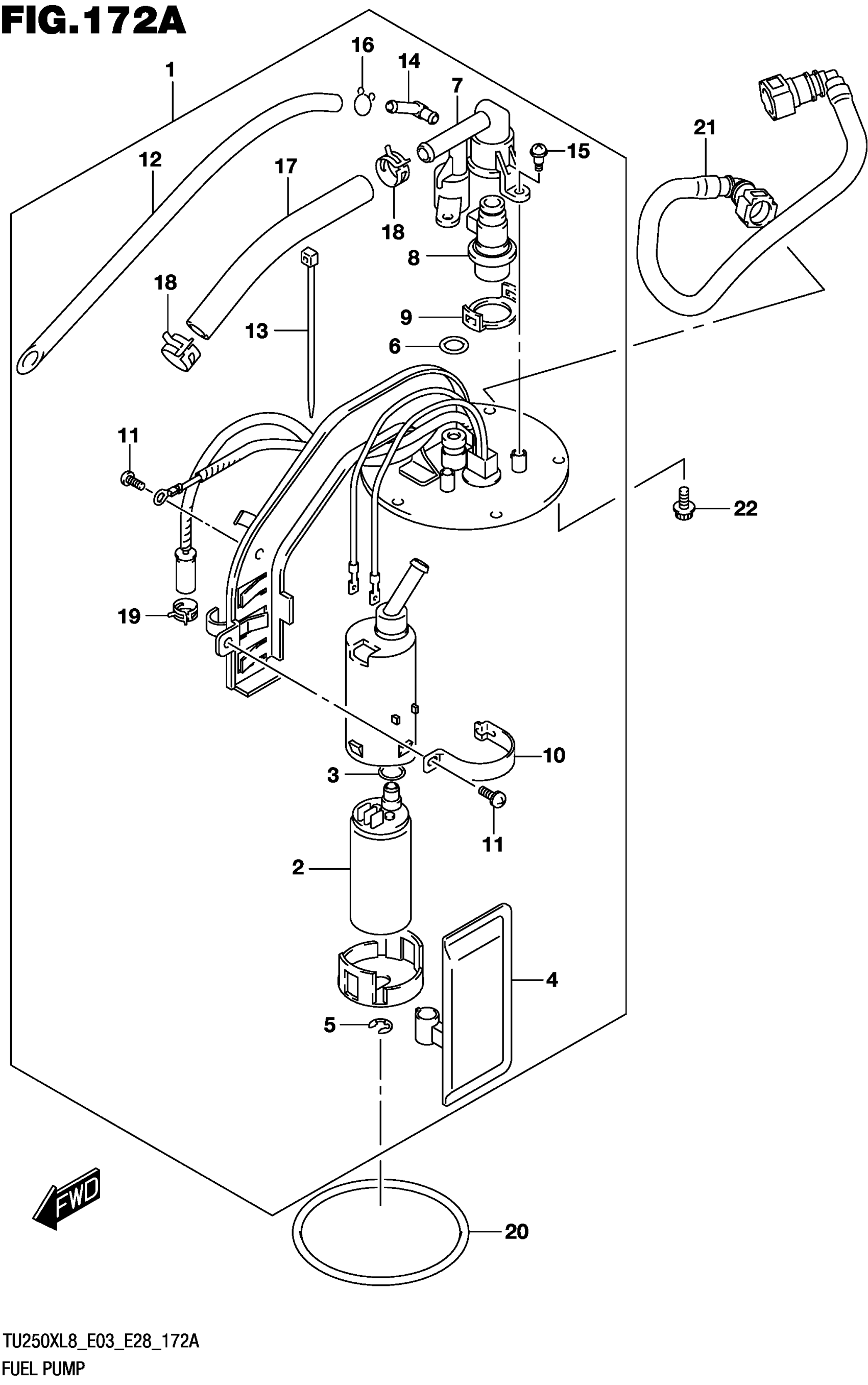

2018 Suzuki TU250XL8 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY

15100-26GA0

1
Out of stock

2

.PUMP

15110-26GA0

1
Out of stock

3

.O RING

13295-26GA0

1
Out of stock

4

.FILTER

15420-26GA0

1
Out of stock

5

.PLATE

15119-14G00

1
Out of stock

6

.O RING

15125-48G00

1
Out of stock

7

.ADAPTER

15131-26GA0

1
Out of stock

8

.REGULATOR,PRESSURE

15610-48G00

1
Out of stock

9

.CLIP

15613-48G00

1
Out of stock

10

.BAND

15426-26GA0

1
Out of stock

11

.SCREW

15116-48G00

2
Out of stock

12

.HOSE

13683-26GA0

1
Out of stock

13

.CLAMP

13432-14G00

1
Out of stock

14

.JOINT

15614-26GA0

1
Out of stock

15

.SCREW

15135-48G00

2
Out of stock

16

CLIP

13693-24F00

1
Out of stock

17

.HOSE

13683-26GB0

1
Out of stock

18

.CLIP

15135-14G00

2
Out of stock

19

.CLAMP

15175-48G00

1
Out of stock

20

O-RING

15201-35F00

1
Out of stock

21

HOSE

15810-26GB0

1
Out of stock

22

BOLT

07120-0612A

5
Out of stock
