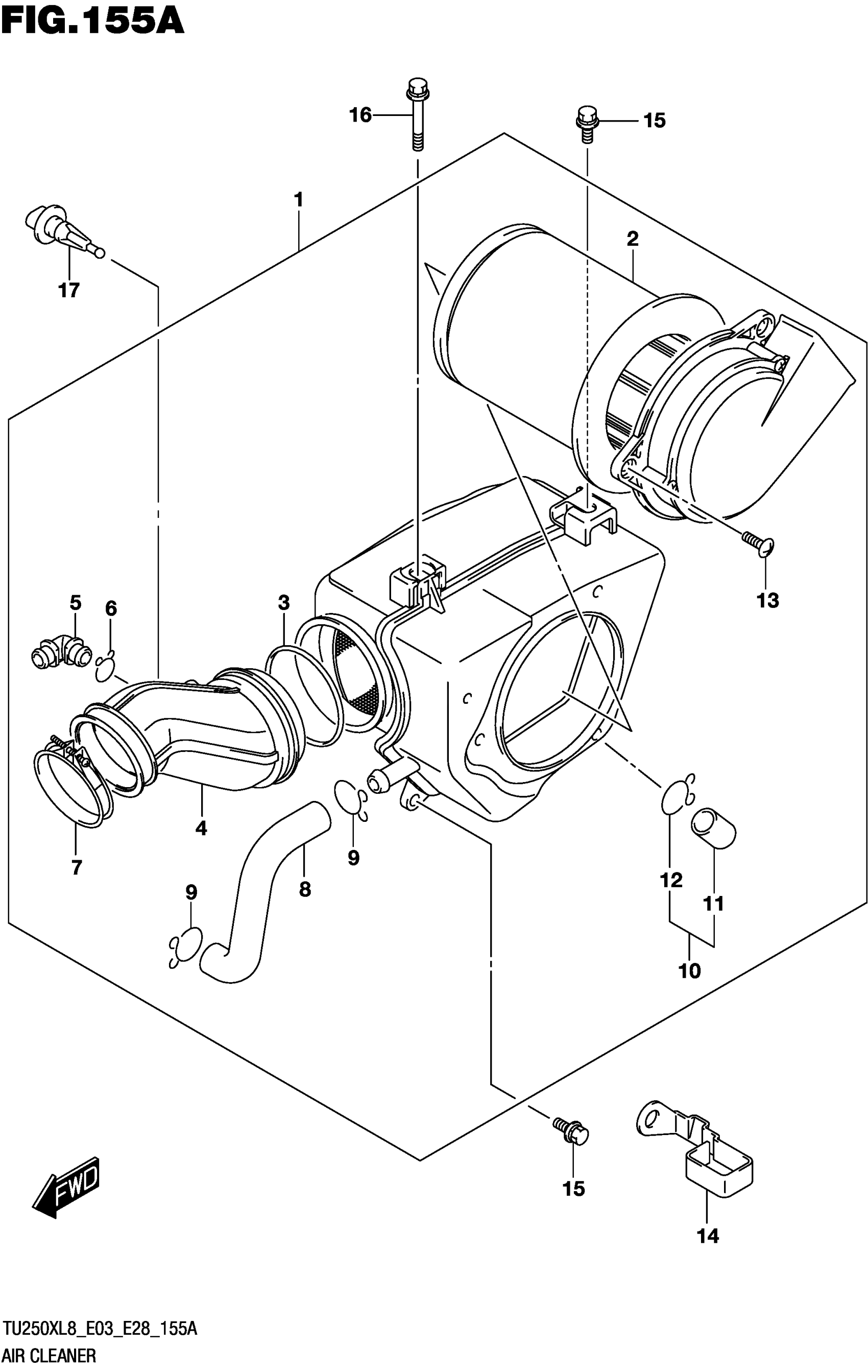

Suzuki TU250XL8 (2018) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY

13700-26GA3

Unavailable

2

.FILTER

13780-25D10

$32.99

3

.CLAMP

13826-38300

$3.26

4

.TUBE

13881-26GA0

Unavailable

5

.JOINT

13858-14D20

$6.80

6

.CLIP (ID:14.5)

09401-14101

$2.37

7

.CLAMP

13826-26GA1

Unavailable

8

TUBE,BREATHER This part replaces 13853-38300.

13853-38301

$10.98

9

.CLIP (ID:16.5)

09401-16401

$2.87

10

.PLUG ASSY,DRAIN

13856-19B03

$12.35

11

.PLUG

13859-41B10

$6.94

12

.CLIP (ID:14.5)

09401-14101

$2.37

13

.SCREW

02142-0512A

$1.37

14

CLAMP

13827-38300

Unavailable

15

BOLT

01580-0616A

$2.43

16

BOLT

01580-0640A

Unavailable

17

SENSOR,INLET AIR TEMP

13650-52G00

$93.45
