2011 Suzuki TU250XL1 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2011 Suzuki TU250XL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

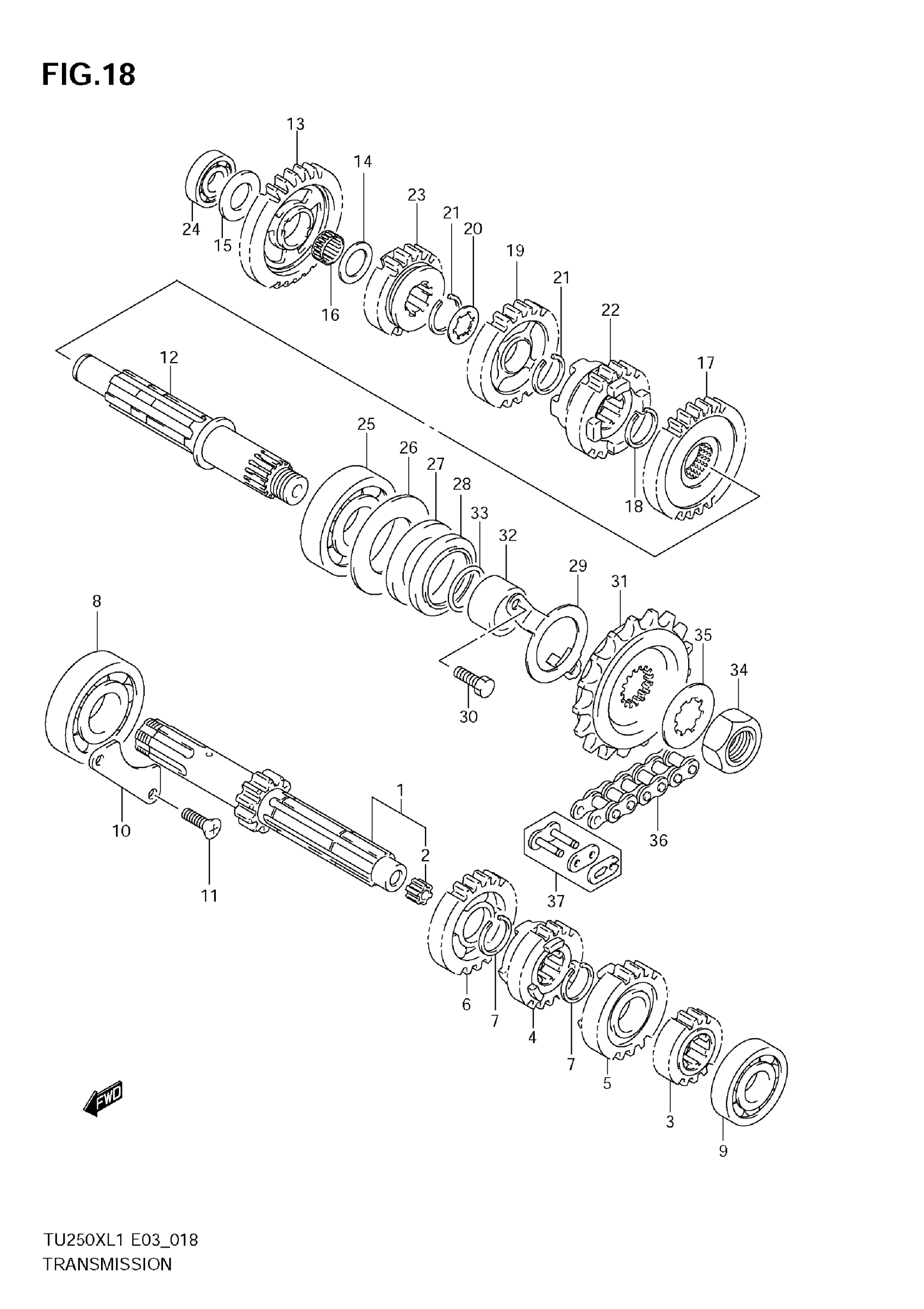

2011 Suzuki TU250XL1 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, COUNTER (NT:11)

24120-38203

1
Out of stock

2

BUSH, COUNTER SHAFT

24125-38201

1
Out of stock

3

GEAR, 2ND DRIVE (NT:16)

24221-32412

1
Out of stock

4

GEAR, 3RD DRIVE (NT:20)

24231-38220

1
Out of stock

5

GEAR, 4TH DRIVE (NT:21)

24241-32420

1
Out of stock

6

GEAR, 5TH DRIVE (NT:22)

24251-32420

1
Out of stock

7

CIRCLIP

09380-22006

2
Out of stock

8

BEARING (22X56X16)

09262-22025

1
Out of stock

9

BEARING (17X40X12)

09262-17046

1
Out of stock

10

RETAINER, CNTR SHAFT BEARING

24741-38200

1
Out of stock

11

BOLT (6X12)

09125-06122

2
Out of stock

12

SHAFT, DRIVE

24130-38301

1
Out of stock

13

GEAR, 1ST DRIVEN (NT:29)

24311-32401

1
Out of stock

14

SHIM (17X28X1)

09181-17195

1
Out of stock

15

WASHER

08211-17283

1
Out of stock

16

BEARING (17X21X9.8)

09263-17004

1
Out of stock

17

GEAR, 2ND DRIVEN (NT:27)

24320-32411

1
Out of stock

18

CIRCLIP

09380-22006

1
Out of stock

19

GEAR, 3RD DRIVE (NT:24)

24330-38202

1
Out of stock

20

LOCK WASHER

09167-22011

1
Out of stock

21

CIRCLIP

09380-22006

2
Out of stock

22

GEAR, 4TH DRIVEN (NT:20)

24341-38220

1
Out of stock

23

GEAR, 5TH DRIVEN (NT:18)

24351-38201

1
Out of stock

24

BEARING, DRIVE SHAFT, R

08110-62030

1
Out of stock

25

BEARING (22X56X16)

09262-22025

1
Out of stock

26

WASHER (35X55X1)

09160-35007

1
Out of stock

27

SEAL, DRIVE SHAFT (30X43X5)

09282-30004

1
Out of stock

28

SEAL, DRIVE SHAFT (30X43X7)

09283-30041

1
Out of stock

29

RETAINER, DRIVE SHAFT OIL SEAL

24751-38210

1
Out of stock

30

SCREW

01500-0612A

2
Out of stock

31

SPROCKET,ENGINE This part replaces 27510-25D00.

27510-25D01

1
Out of stock

32

SPACER, ENGINE SPROCKET

27531-38300

1
Out of stock

33

O RING (D:2.5,ID:21)

09280-21008

1
Out of stock

34

NUT

09140-18008

1
Out of stock

35

LOCK WASHER

09167-22012

1
Out of stock

36

CHAIN ASSY, DRIVE (DID520V0) This part replaces 27600-14A10-108.

27600-14A20-108

1
Out of stock

37

.JOINT SET, CHAIN | OPT This part replaces 27620-14A10.

27620-14A20

1
Out of stock
