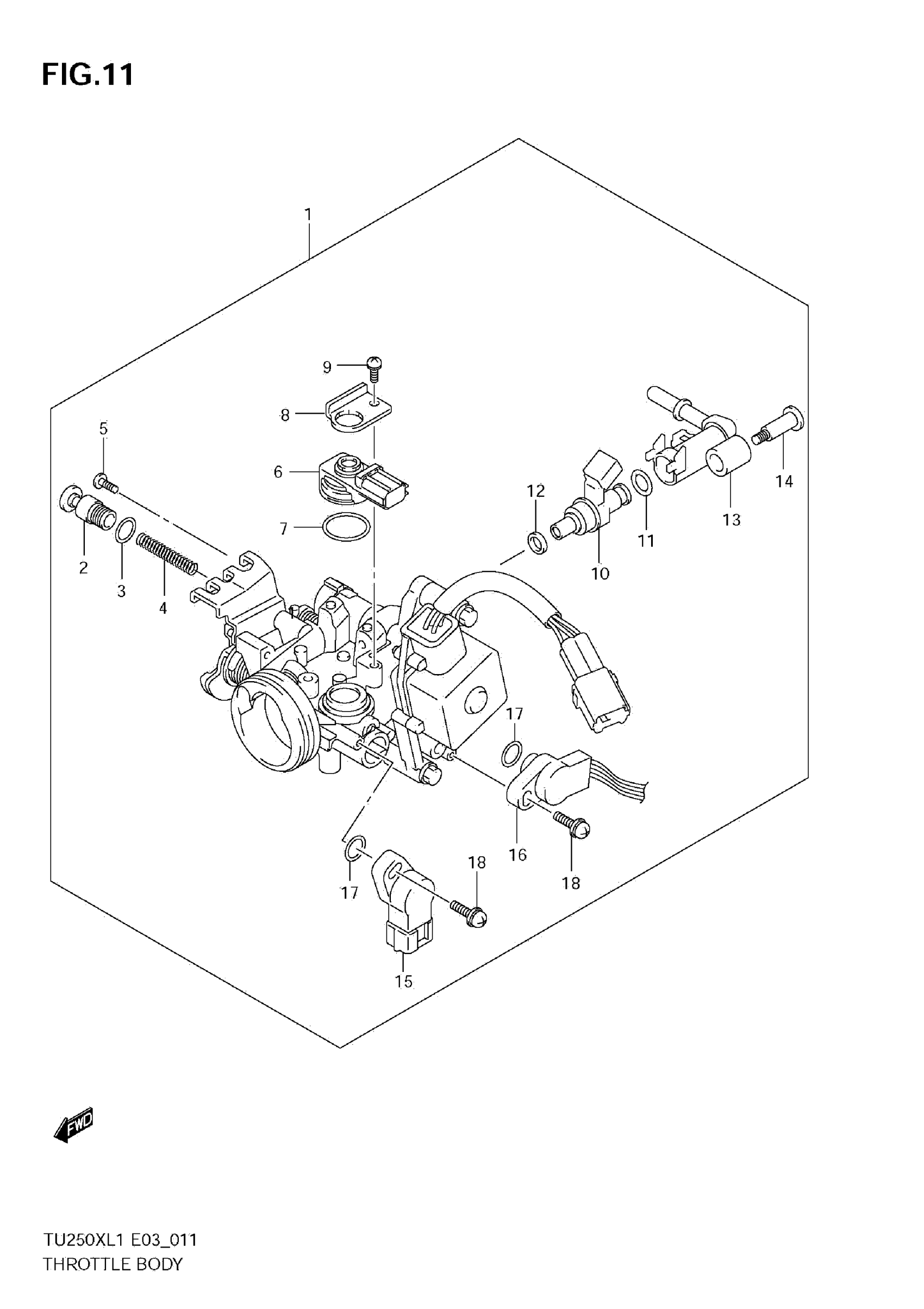

Suzuki TU250XL1 (2011) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY,THROT This part replaces 13400-26GA1.

13400-26GA4

$689.65

2

SCREW

13279-26GA0

Unavailable

3

O RING

13295-14G00

$3.17

4

SPRING

13271-26GA0

Unavailable

5

SCREW

13601-14G00

$3.42

6

SENSOR, MAP

15620-05H00

$304.30

7

.O RING This part replaces 15621-05H00.

15621-05H01

$10.22

8

PLATE, MAP SENSOR

15622-33H00

Unavailable

9

SCREW

02112-14087

$2.58

10

INJECTOR ASSY

15710-26GA0

$245.33

11

.O-RING

15721-21H00

$8.31

12

.RING,SEAL

15722-21H00

$10.30

13

PIPE, FUEL

13471-26GA0

$40.02

14

SCREW

13601-35F00

$6.86

15

SENSOR, THROTTLE This part replaces 13580-33H00.

13580-33H01

$288.30

16

SENSOR ASSY, THROTTLE SUB This part replaces 13580-40F30.

13580-40F31

$197.79

17

O RING

13575-40F00

$3.85

18

SCREW

13605-40F00

$3.50
