2011 Suzuki TU250XL1 Air Cleaner Diagram

← All diagrams

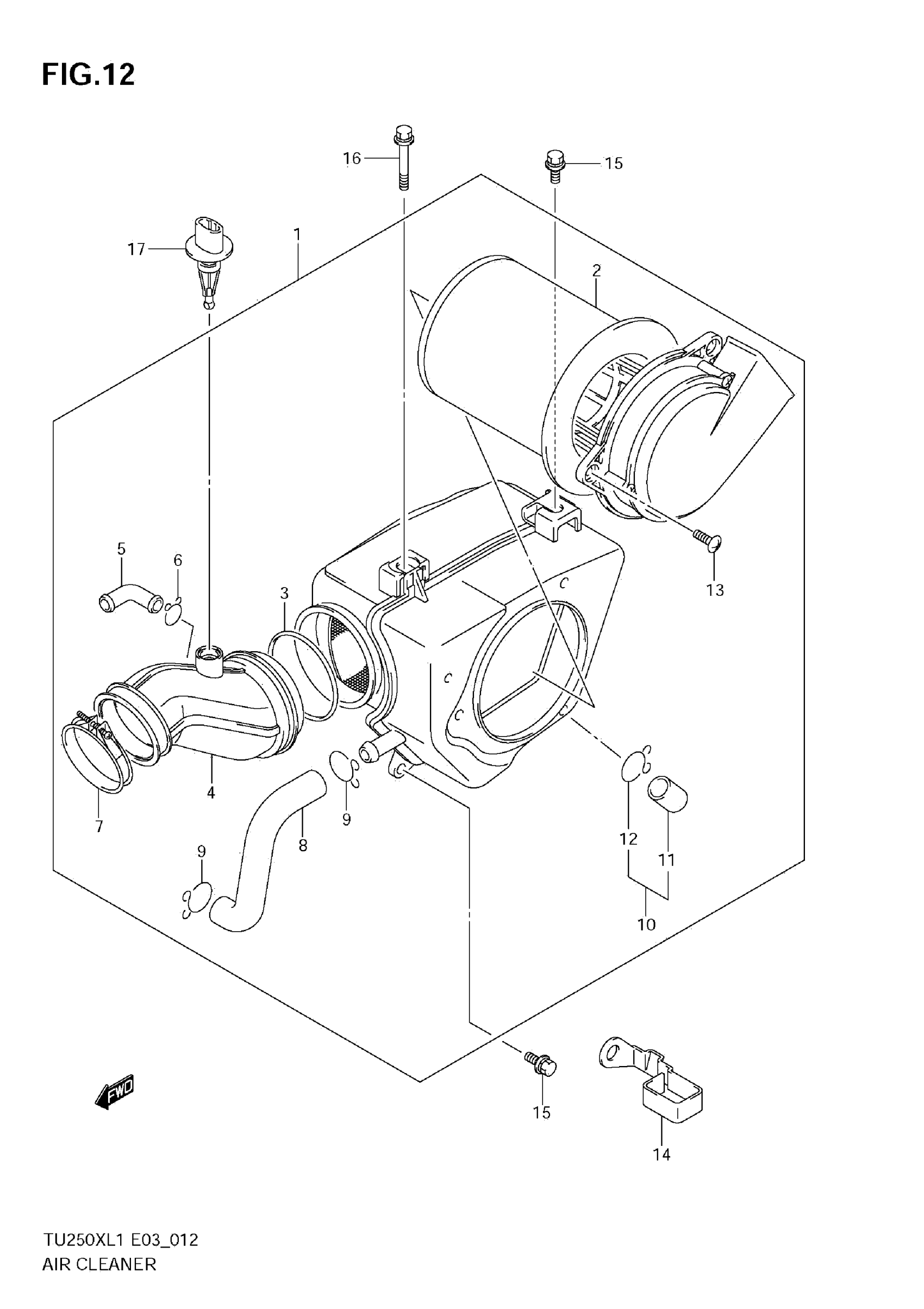

Find the part on the Air Cleaner diagram for your 2011 Suzuki TU250XL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki TU250XL1 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR

13700-26GA2

—
Out of stock

2

FILTER

13780-38301

1

$35.70

In stock

3

CLAMP, AIR CLEANER SIDE

13826-38300

1
Out of stock

4

TUBE, OUTLET

13881-26GA0

1
Out of stock

5

JOINT

13858-14D20

1
Out of stock

6

CLIP

09401-14101

1
Out of stock

7

CLAMP

13826-26GA1

1
Out of stock

8

1

$10.98

In stock

9

CLIP

09401-16401

2

$3.10

In stock

10

PLUG ASSY, DRAIN

13856-19B03

2

$12.35

In stock

11

.PLUG

13859-41B10

1

$7.56

In stock

12

CLIP

09401-14101

1
Out of stock

13

SCREW

02142-0512A

3

$1.47

In stock

14

CLAMP

13827-38300

1
Out of stock

15

BOLT

01580-0616A

2

$2.63

In stock

16

BOLT

01580-0640A

—
Out of stock

17

SENSOR, INLET AIR TEMP

13650-52G00

1
Out of stock
