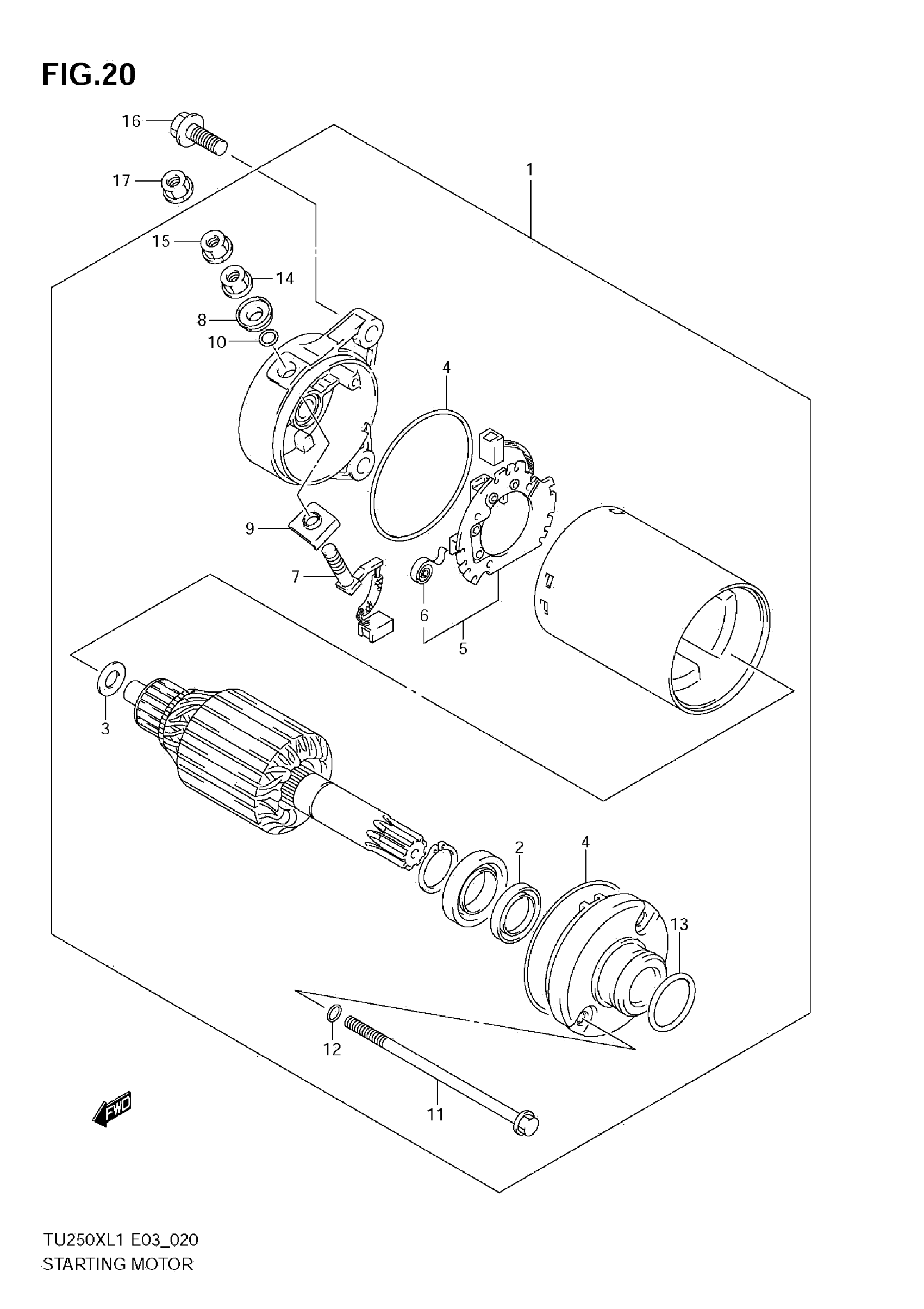

Suzuki TU250XL1 (2011) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING

31100-38300-H17

$674.33

2

OIL SEAL

31153-49210

$24.20

3

SHIM SET

31170-43400

Unavailable

4

O-RING

31264-44110

$11.87

5

HOLDER, BRUSH

31132-27A01

$73.55

6

SPRING

31135-65010

$4.52

7

BRUSH, PLUS

31130-38300

$18.43

8

BUSHING

31172-38300

$6.55

9

BUSH, B

31171-38300

$8.93

10

O-RING

31143-38300

$5.10

11

BOLT

31281-87402

Unavailable

12

O-RING

31156-38300

$4.52

13

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

14

.NUT

08310-00067

$2.13

15

NUT

08361-3506A

$1.80

16

BOLT (6X25)

09103-06212

$2.47

17

NUT

08361-3506A

$1.80
