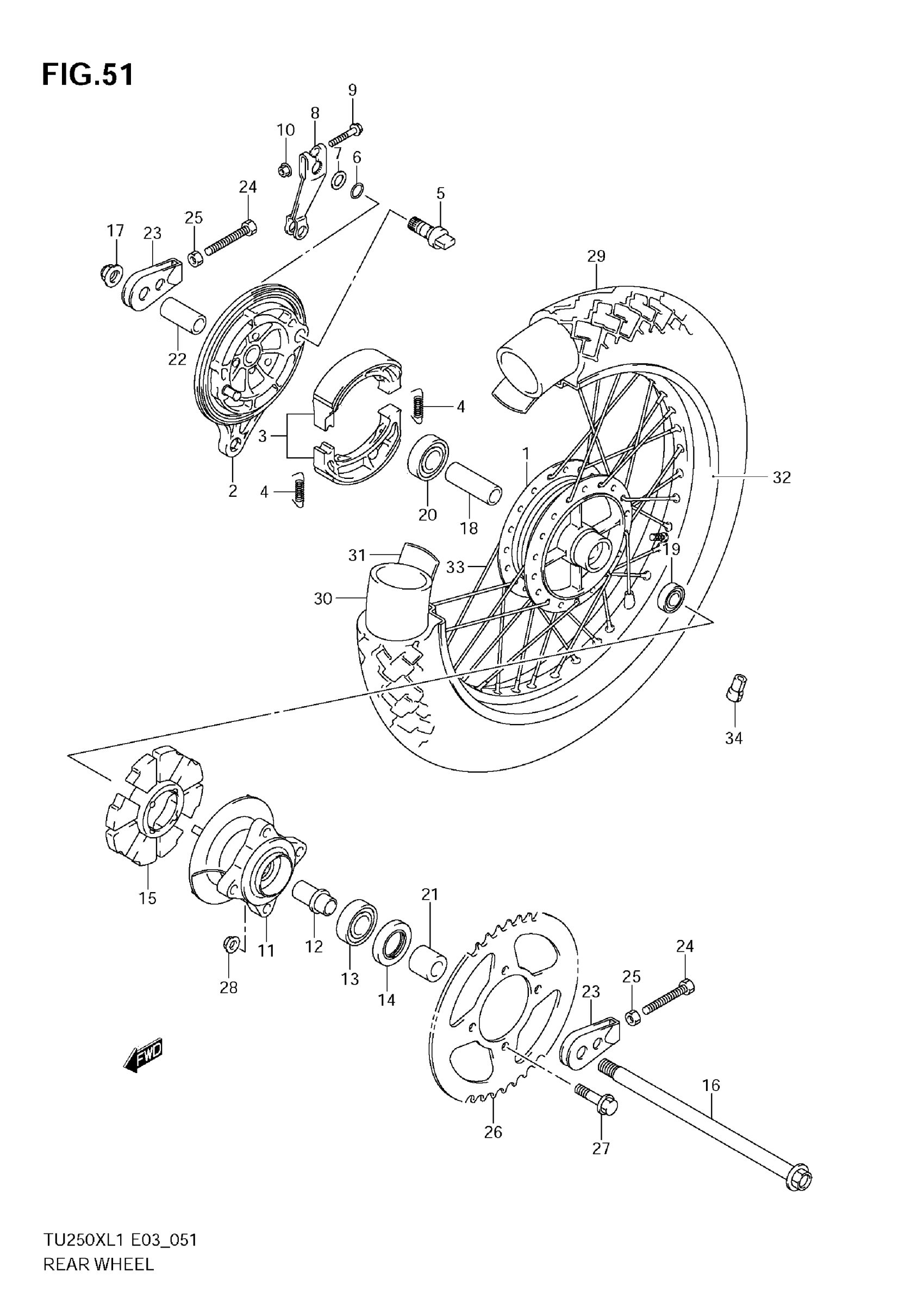

Suzuki TU250XL1 (2011) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL

64110-07005

Unavailable

2

PANEL, REAR BRAKE ANCHOR

64210-39115

$154.00

3

SHOE, REAR BRAKE

54402-07810

$40.23

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

CAM, REAR BRAKE

54441-29305

$20.02

6

O RING (D:2.5,ID:13.8)

09280-14011

$4.77

7

WASHER (14.5X22X1.6)

09160-14055

$2.39

8

LEVER, REAR BRAKE CAM

64451-38210

$34.57

9

BOLT

01550-0635B

$2.73

10

NUT

08316-1006B

$2.50

11

DRUM, REAR SPROCKET MOUNTING

64610-38300

Unavailable

12

RETAINER, REAR SPROCKET DRUM

64733-38300

Unavailable

13

BEARING (20X47X14)

09262-20069

$23.28

14

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$12.49

15

ABSORBER, REAR HUB SHOCK

64651-07001

$19.43

16

AXLE, REAR

64711-08320

$55.63

17

NUT

08319-3114A

$9.66

18

SPACER (15.3X21.7X63)

09180-15011

$8.18

19

BEARING | LH

08143-62027

$16.01

20

BEARING | RL

08153-63027

$25.35

21

SPACER (15X28X24.80)

09180-15061

Unavailable

22

SPACER (15X22X46.80)

09180-15060

Unavailable

23

ADJUSTER, CHAIN

61410-38310

$33.25

24

BOLT (8X50)

09100-08303

$3.03

25

NUT

08310-0008B

$2.70

26

SPROCKET, REAR (NT:43-520)

64511-25D00

$99.25

27

BOLT (10X40)

09103-10044

$4.68

28

NUT

08319-3110A

$2.73

29

TIRE, REAR | 110/90-18M/C 61S

65110-26G10

$201.52

30

TUBE ASSY, WHEEL INNER

65200-26G10

$47.78

31

PROTECTOR, WHEEL INNER TUBE

55261-26G00

$40.25

32

RIM, REAR WHEEL (18M/CXMT2.50)

65311-26G00

Unavailable

33

SPOKE SET, REAR WHEEL

65320-26G00

Unavailable

34

BALANCER WHEEL (15G)

55411-26G00

$7.73

34

BALANCER WHEEL (30G)

55413-41F00

$7.50
