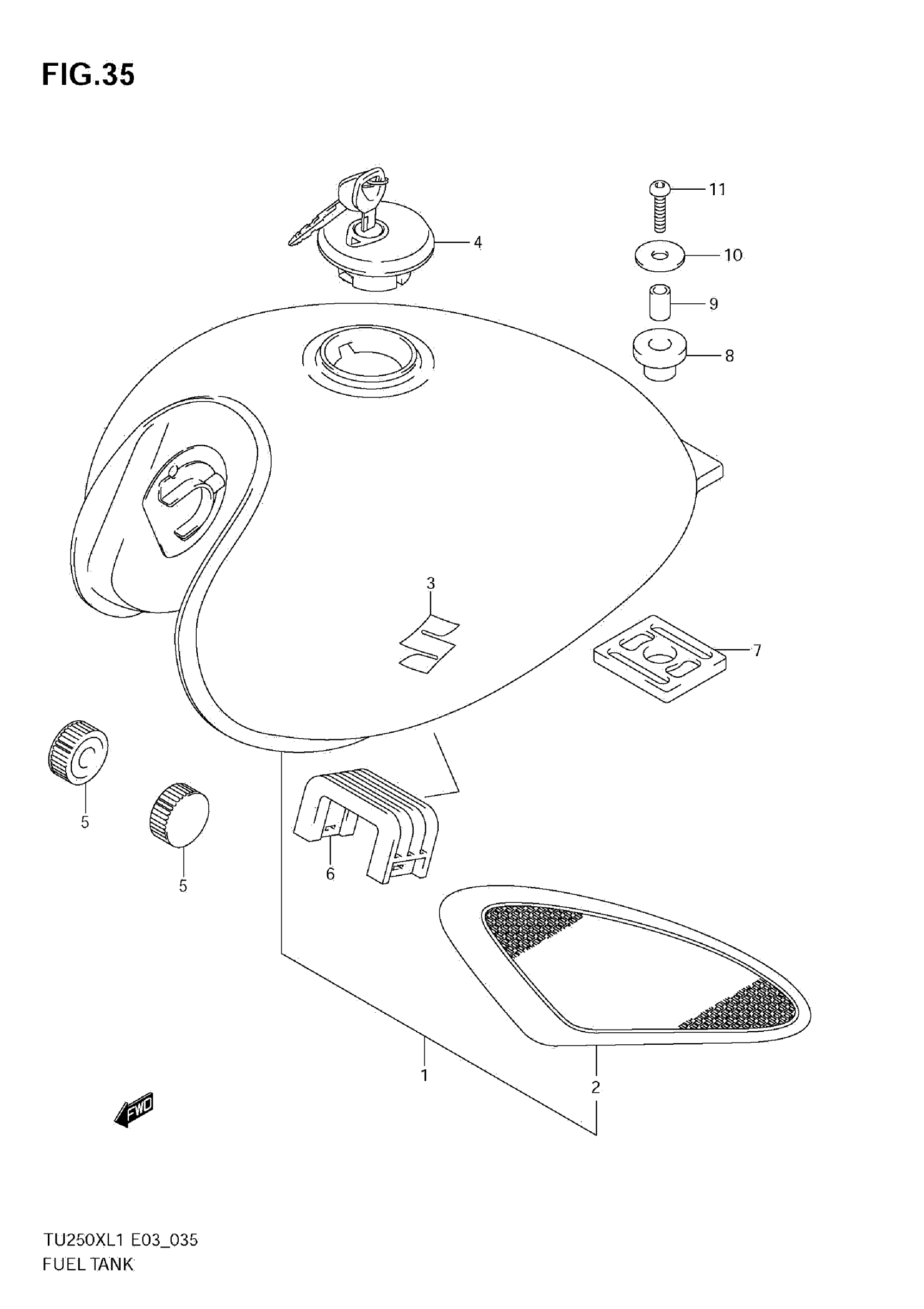

Suzuki TU250XL1 (2011) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL This part replaces 44100-26G50-YWB.

44100-26G51-YWB

Unavailable

2

TAPE SET

68110-26G00

Unavailable

3

EMBLEM "S"

68111-18G20

$32.30

4

CAP SET,FUEL TA This part replaces 44200-24840.

44200-24842

$144.27

5

CUSHION

09329-10016

$3.10

6

CUSHION, CENTER

44541-38200

Unavailable

7

CUSHION,FUEL TANK RR LWR This part replaces 44542-41F00.

44542-41F01

$8.52

8

CUSHION,FUEL TANK RR UPR This part replaces 44541-41F01.

44541-41F02

$5.27

9

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

$2.06

10

WASHER (8.5X33X1.5)

09160-08146

$2.60

11

BOLT

07120-0835B

$4.58
