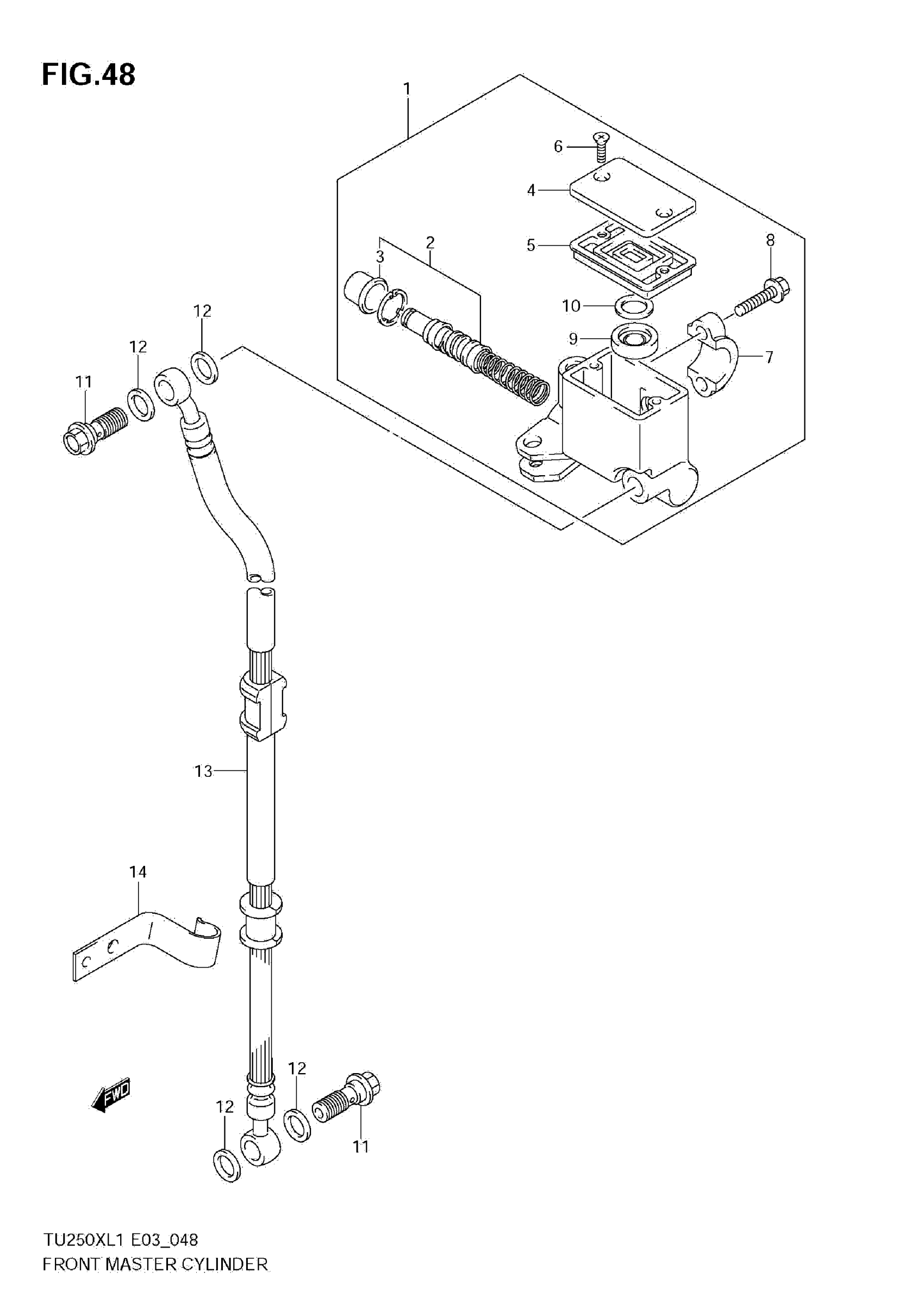

Suzuki TU250XL1 (2011) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-31D20

$303.63

2

PISTON/CUP SET

59600-04810

$45.20

3

BOOT

59666-44300

$5.80

4

CAP

69669-20C00

$19.37

5

DIAPHRAGM

59667-44B00

$9.78

6

SCREW

69689-49300

$1.91

7

.HOLDER

59671-36500

$12.21

8

BOLT HOLDER SET

59675-19C00

$4.02

9

SEPARATOR

59748-15400

$9.38

10

PLATE

59749-15400

$2.79

11

UNION

09360-10062

$6.43

12

WASHER (10X15X1.5)

09161-10009

$1.84

13

HOSE, FRONT BRAKE

59480-26G01

$123.73

14

CLAMP, FR BRAKE HOSE LOWER

59268-26G00

$9.17
