2009 Suzuki TU250X Headlamp Housing Diagram

← All diagrams

Find the part on the Headlamp Housing diagram for your 2009 Suzuki TU250X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

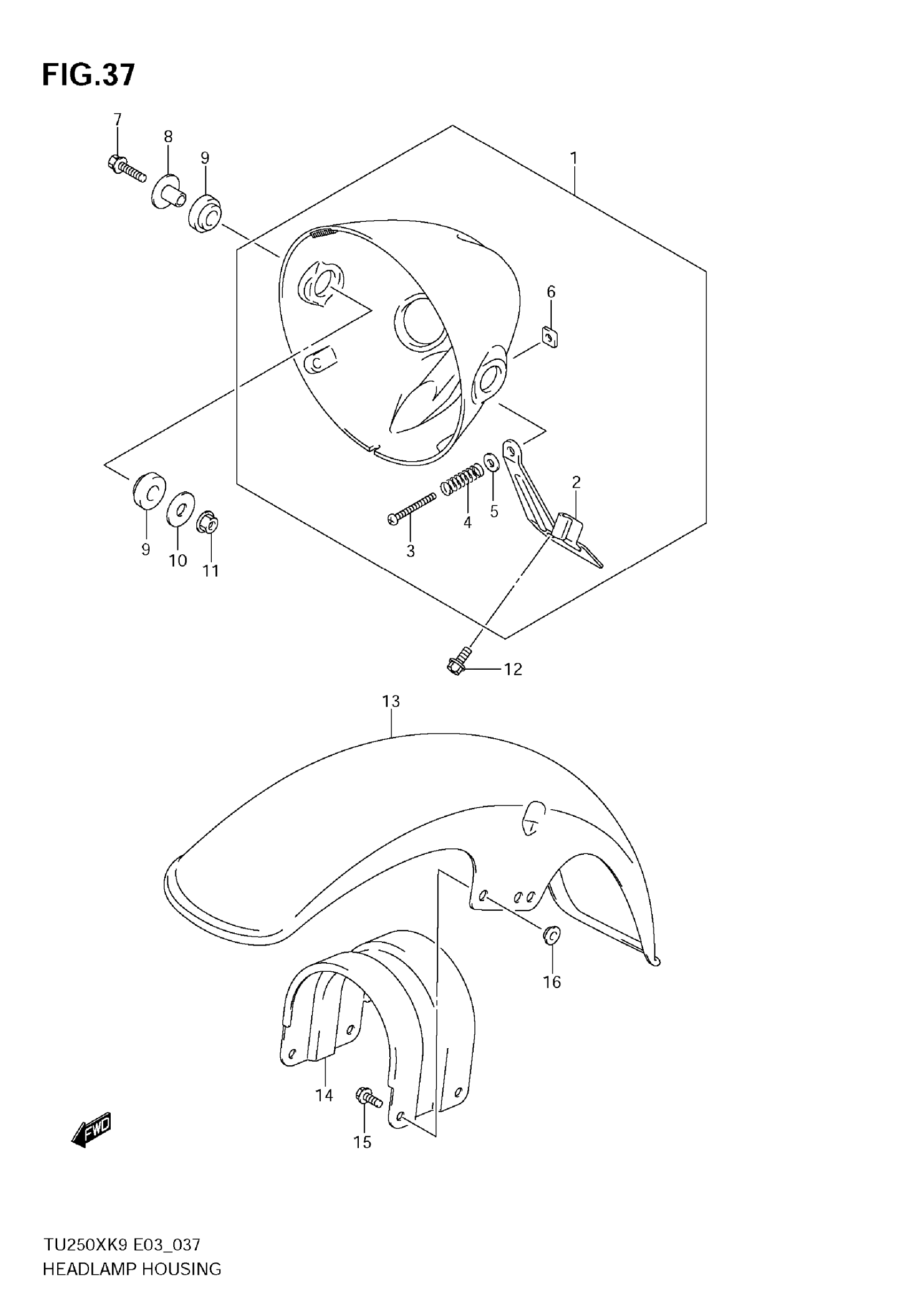

2009 Suzuki TU250X Headlamp Housing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$299.33

In stock

2

PLATE

51840-26G00

1

$49.73

In stock

3

SCREW

09125-05128

1

$3.05

In stock

4

SPRING

51837-25D00

1

$5.75

In stock

5

WASHER

08322-0105B

1
Out of stock

6

NUT

51825-25D00

1

$4.62

In stock

7

BOLT

01244-08357

2

$3.94

In stock

8

SPACER

09180-08217

2

$3.43

In stock

9

4

$2.94

In stock

10

WASHER

09160-08157

2
Out of stock

11

NUT

08316-1008B

2

$2.85

In stock

12

SCREW

02162-0616B

1

$2.22

In stock

13

FENDER, FRONT (RED)

53111-26G10-YHL

1

$298.30

In stock

14

BRACE

53112-26G00

1

$33.02

In stock

15

BOLT

01560-0616B

4

$3.38

In stock

16

WASHER

09169-06071

3
Out of stock
