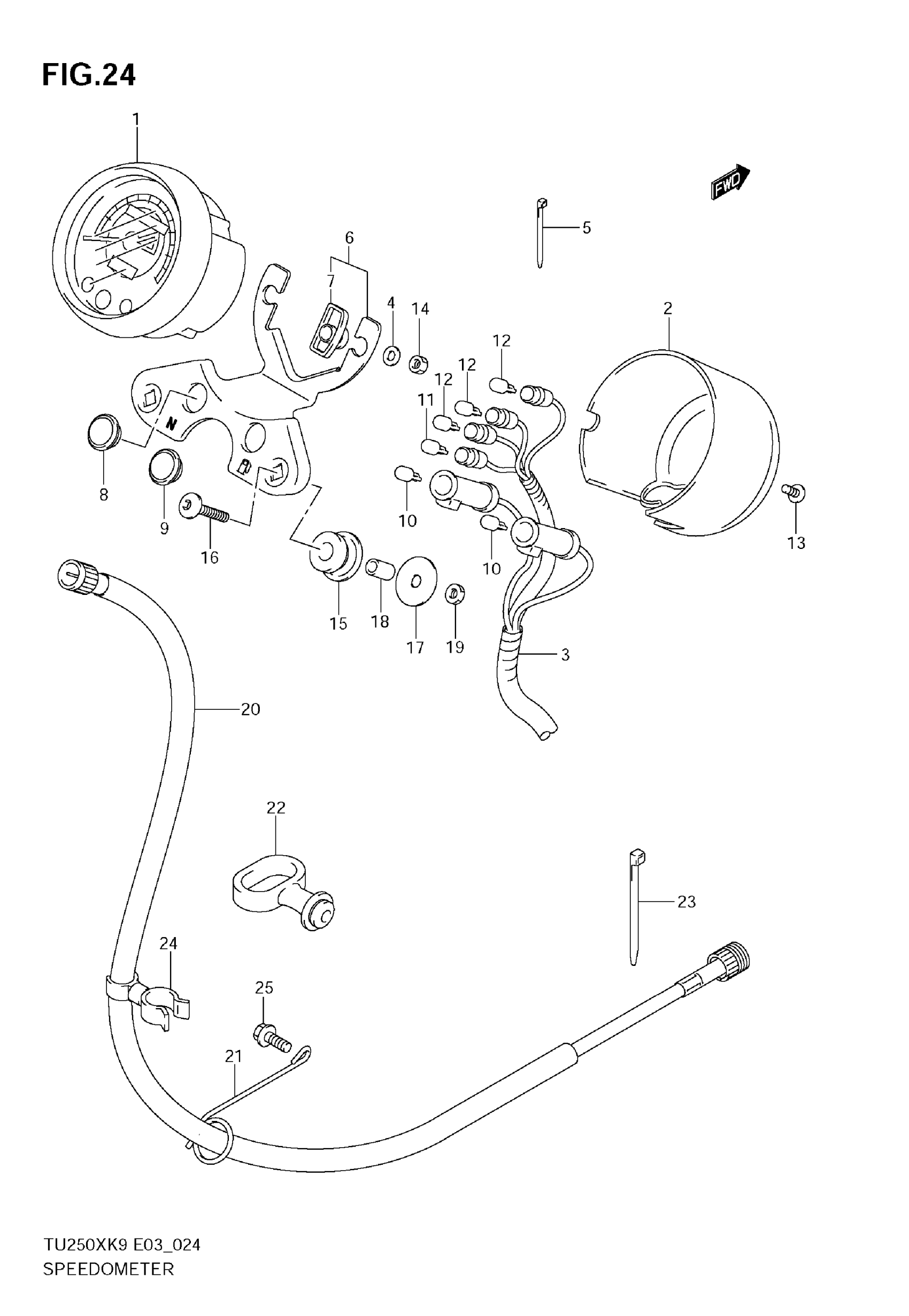

Suzuki TU250X (2009) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER

34110-26G50

$549.88

2

COVER, UNDER

34111-25D00

$81.27

3

CORD ASSY

34170-26G30

Unavailable

4

WASHER This part replaces 34181-45C10.

09160-05013

$1.30

5

CLAMP (L:145) This part replaces 34192-92E00.

09407-14407

$2.84

6

BRACKET ASSY | Includes Item(s) 7

34950-26G30

$146.42

7

CUSHION,DAMPER This part replaces 34191-25D00.

34191-25D01

$9.78

8

LENS (GREEN)

36321-13G00

$6.52

9

LENS (ORANGE)

36331-13GA0

Unavailable

10

BULB (12V,3.4W)

09471-12028

$2.04

11

BULB (12V3.4W)

09471-12103

$3.56

12

.BULB (12V1.7W)

09471-12108

$3.18

13

SCREW This part replaces 03541-14128.

03541-1412A

$2.22

14

NUT This part replaces 08310-11058.

08310-00057

$1.89

15

CUSHION, SPEEDOMETER

34956-31001

$4.29

16

BOLT (6X30)

09107-06003

$2.80

17

WASHER (6.5X28X1.6)

09160-06136

$1.91

18

SPACER (6.5X10X15.7)

09180-06294

$4.28

19

NUT

08310-0006B

$2.44

20

CABLE ASSY, SPEEDOMETER

34910-26G01

$38.68

21

GUIDE, METER CABLE

34938-37000

$4.21

22

GUIDE, METER CABLE

58621-21204

$6.39

23

CLAMP (L:145)

09407-14407

$2.84

24

CLAMP This part replaces 09408-00119.

09408-00056

$3.37

25

BOLT, CABLE GUIDE

01550-0612B

$2.44
