1986 Yamaha TT600 (TT600S) Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1986 Yamaha TT600 (TT600S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

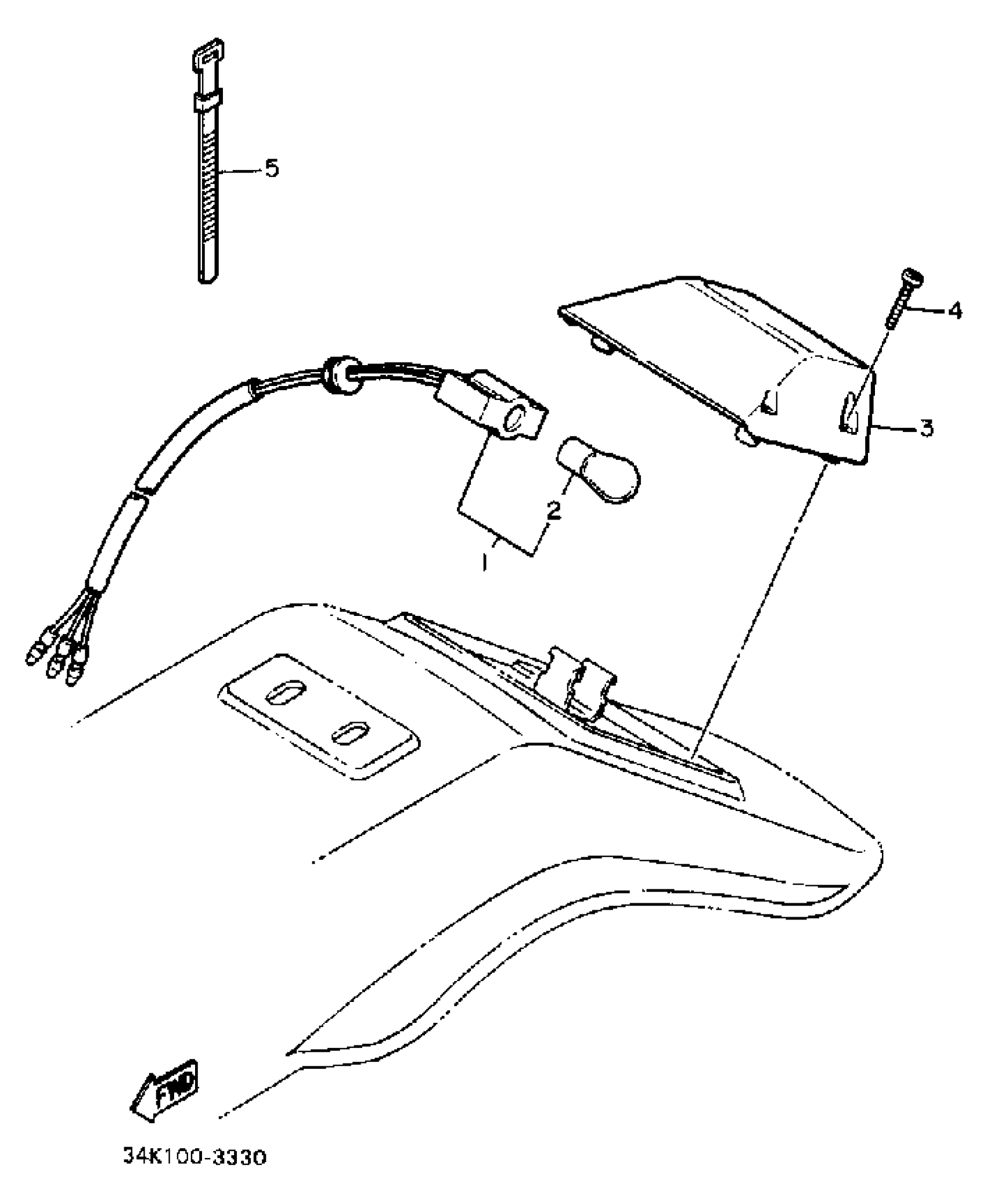

1986 Yamaha TT600 (TT600S) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SOCKET CORD ASSEMBLY

4V5-84536-00-00

1
Out of stock

2

1

$10.02

In stock

3

LENS, TAILLIGHT

26A-84521-00-00

1

$45.13

In stock

4

SCREW, PAN HEAD

98517-04020-00

1

$6.18

In stock

5

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock
