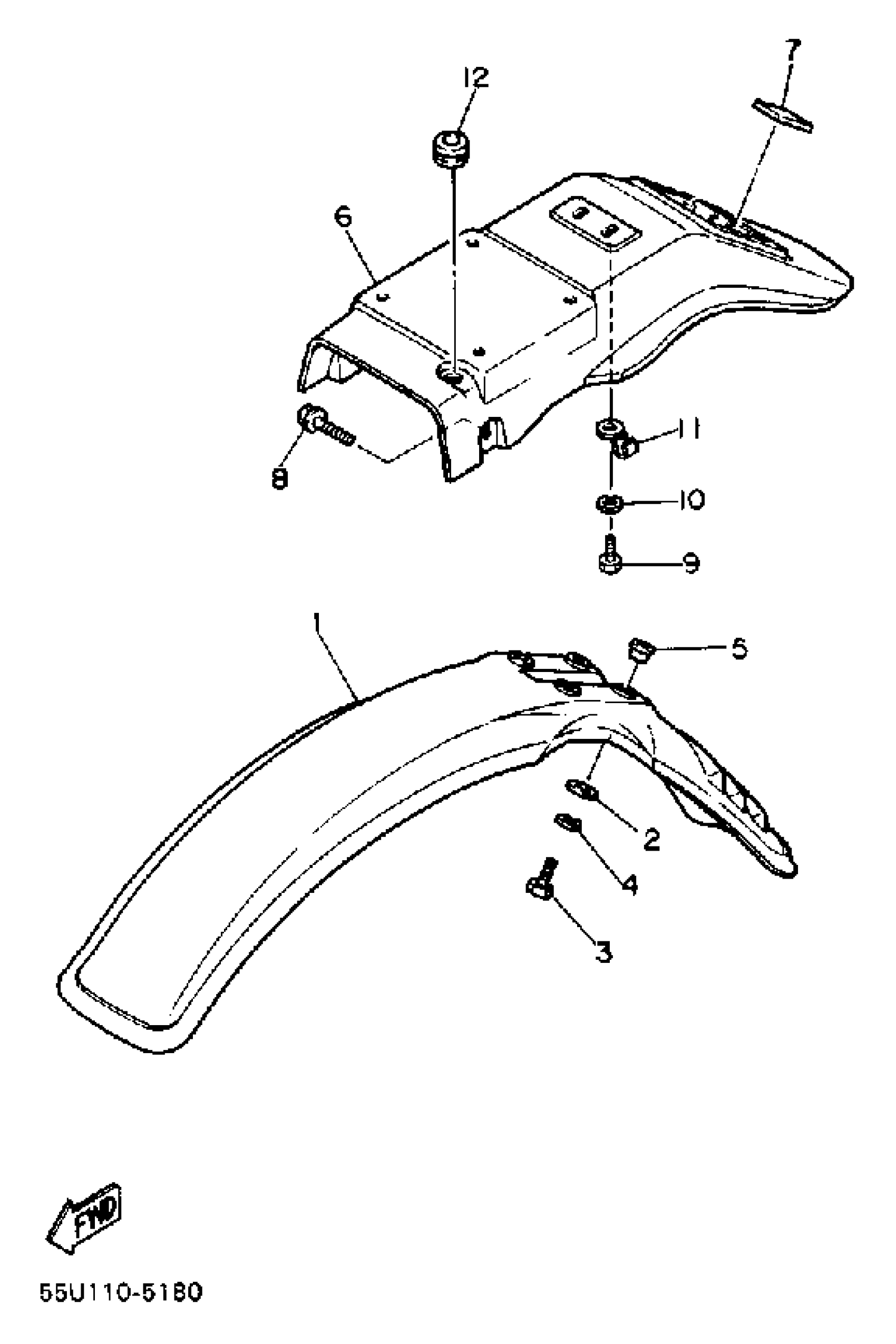

Yamaha TT600S (TT600) 1986 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

34K-21511-00-00

Unavailable

2

WASHER, PLATE

90201-06380-00

$0.54

3

BOLT(3DM)

97024-06020-00

$5.75

4

WASHER, SPRING

92995-06100-00

$2.95

5

WASHER (3R8)

90209-06187-00

$5.76

6

FENDER, REAR

34K-21610-00-00

Unavailable

7

DAMPER

22F-2139X-00-00

$5.96

8

BOLT, WITH WASHER

90119-06152-00

$2.56

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

10

WASHER, SPRING

92995-06100-00

$2.95

11

WASHER, SPECIAL 1

34K-21615-00-00

Unavailable

12

GROMMET (462)

90480-13018-00

$5.81
