1986 Yamaha TT600 (TT600S) Electrical 1 Diagram

← All diagrams

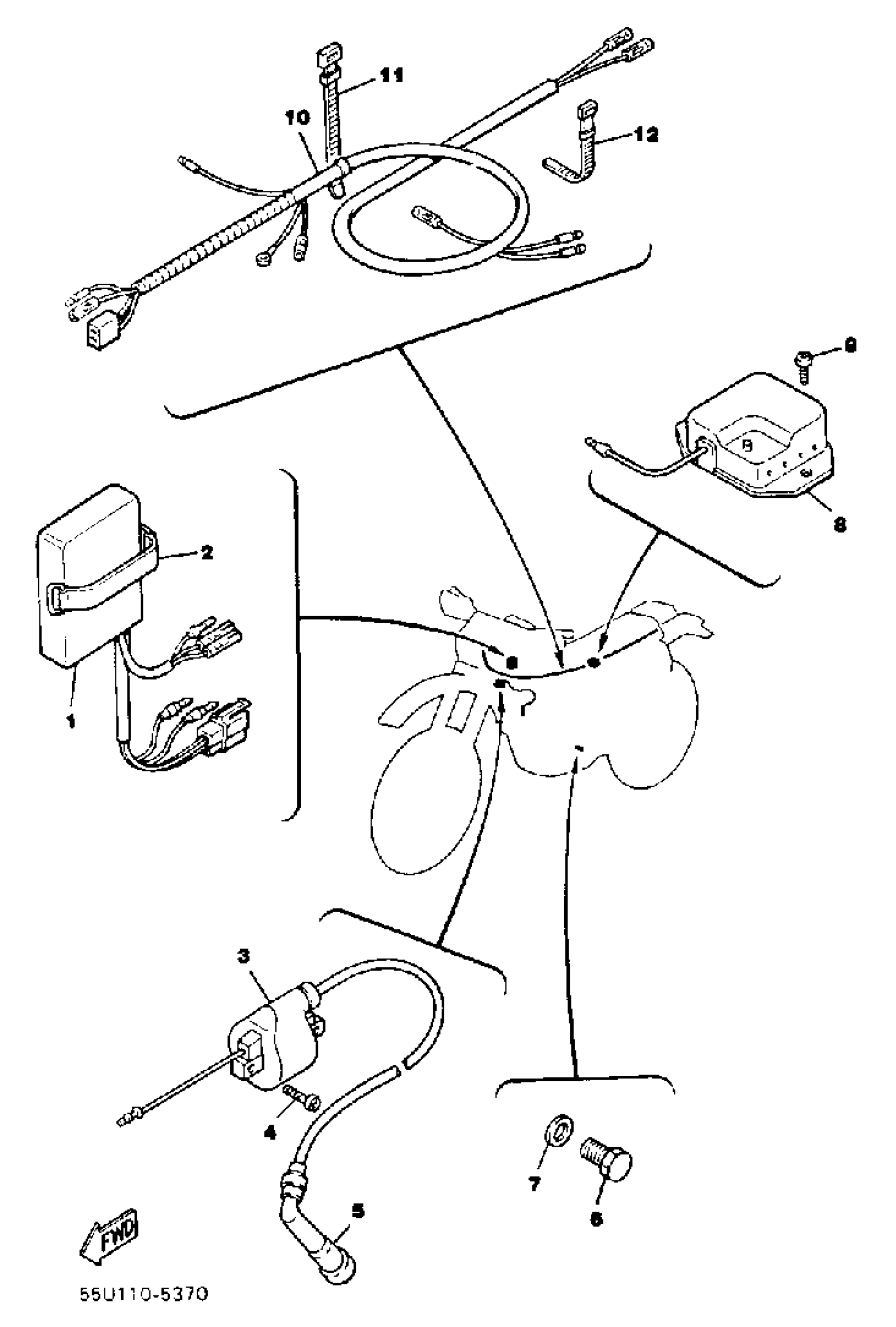

Find the part on the Electrical 1 diagram for your 1986 Yamaha TT600 (TT600S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha TT600 (TT600S) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

55U-85540-51-00

1
Out of stock

2

BAND, BATTERY

26L-82131-00-00

1

$7.05

In stock

3

IGNITION COIL ASSEMBLY

43F-82310-51-00

1
Out of stock

4

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

5

PLUG CAP ASSY

4VW-82370-00-00

1
Out of stock

6

1

$8.44

In stock

7

GASKET (5R6)

90430-10171-00

1

$3.17

In stock

8

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

1

$50.55

In stock

9

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

10

WIRE HARNESS ASSEMBLY

(55U-82590-00-00)

1
Out of stock

11

BAND, SWITCH CORD

25G-83936-01-00

1

$4.12

In stock

12

BAND, SWITCH CORD

437-83936-11-00

1

$3.20

In stock
