1986 Yamaha TT600 (TT600S) Frame Diagram

← All diagrams

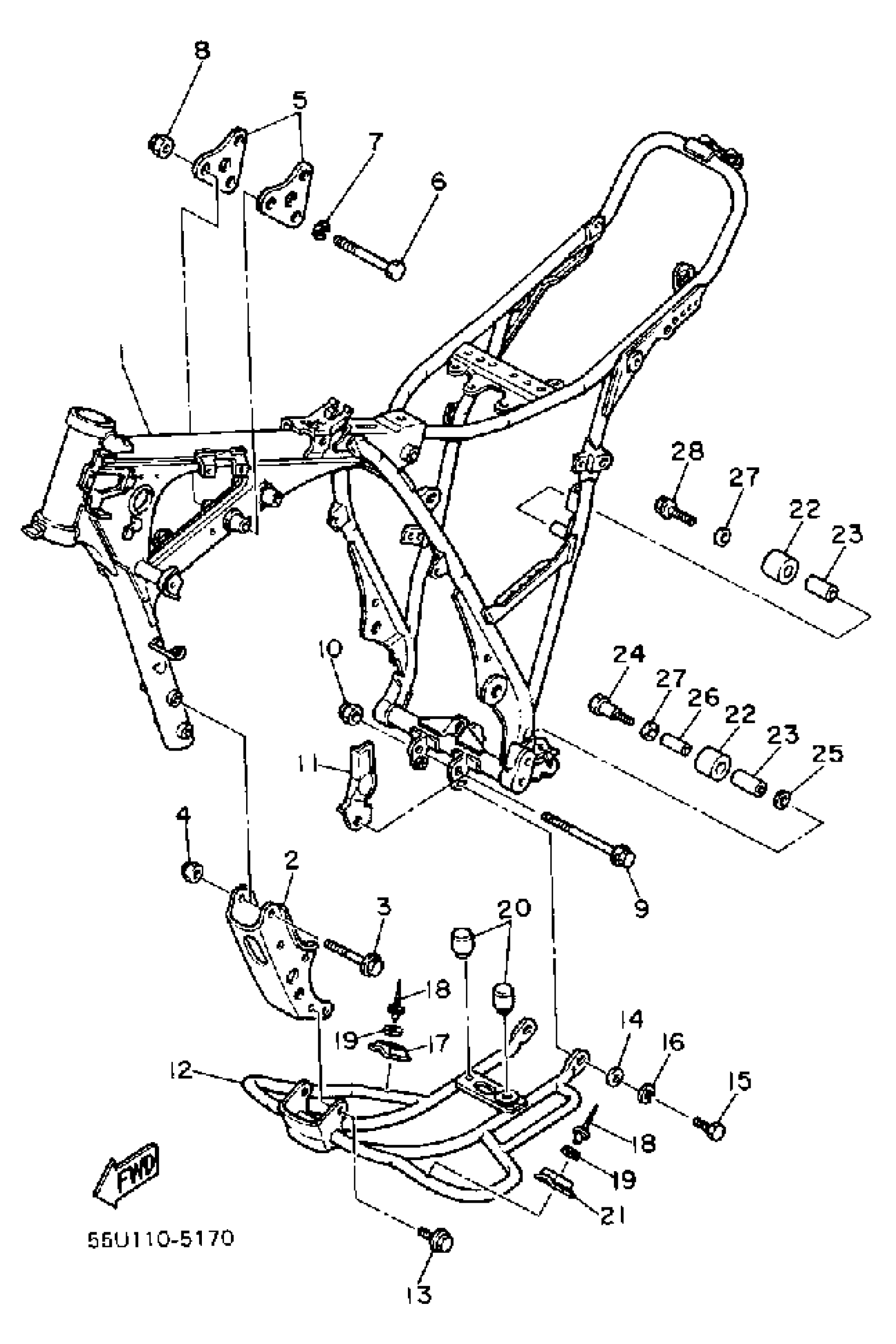

Find the part on the Frame diagram for your 1986 Yamaha TT600 (TT600S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha TT600 (TT600S) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(55U-21110-00-FH)

1
Out of stock

2

STAY, ENGINE 3

(34K-21316-00-FH)

1
Out of stock

3

BOLT, WASHER BASED (39E)

90105-10286-00

1

$6.03

In stock

4

1

$6.02

In stock

5

STAY, ENGINE 2

34K-21315-00-00

1
Out of stock

6

BOLT, WASHER BASED(65J)

90105-10M75-00

1

$6.14

In stock

7

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

8

1

$6.02

In stock

9

BOLT, FLANGE(6TA)

95817-10110-00

1

$5.20

In stock

10

1

$6.02

In stock

11

PLATE

(34K-2176E-00-00)

1
Out of stock

12

PROTECTOR, ENGINE

34K-21471-00-FH

1
Out of stock

13

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock

14

WASHER, PLATE (8K2)

90201-06778-00

1

$3.69

In stock

15

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

DAMPER, RUBBER 1

34K-21485-00-00

1
Out of stock

18

RIVET,BLIND

90267-40080-00

1
Out of stock

19

WASHER, PLATE(26H)

90201-044H9-00

—

$6.68

In stock

20

STOPPER, MAIN STAND

4N0-27114-00-00

—
Out of stock

21

DAMPER 2

34K-21486-00-00

1
Out of stock

22

TENSIONER

30X-22178-00-00

—
Out of stock

23

BUSH

4V4-22184-00-00

—

$3.57

In stock

24

BOLT (23X)

90109-08705-00

—

$12.78

In stock

25

WASHER, PLATE

90201-13013-00

—

$6.29

In stock

26

COLLAR (7R4)

90387-085E1-00

—

$5.37

In stock

27

WASHER, PLATE(8AT)

90201-081R9-00

—
Out of stock

28

BOLT, FLANGE(JN5)

95817-08016-00

—

$4.12

In stock
