1986 Yamaha TT600 (TT600S) AIR Filter Diagram

← All diagrams

Find the part on the AIR Filter diagram for your 1986 Yamaha TT600 (TT600S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

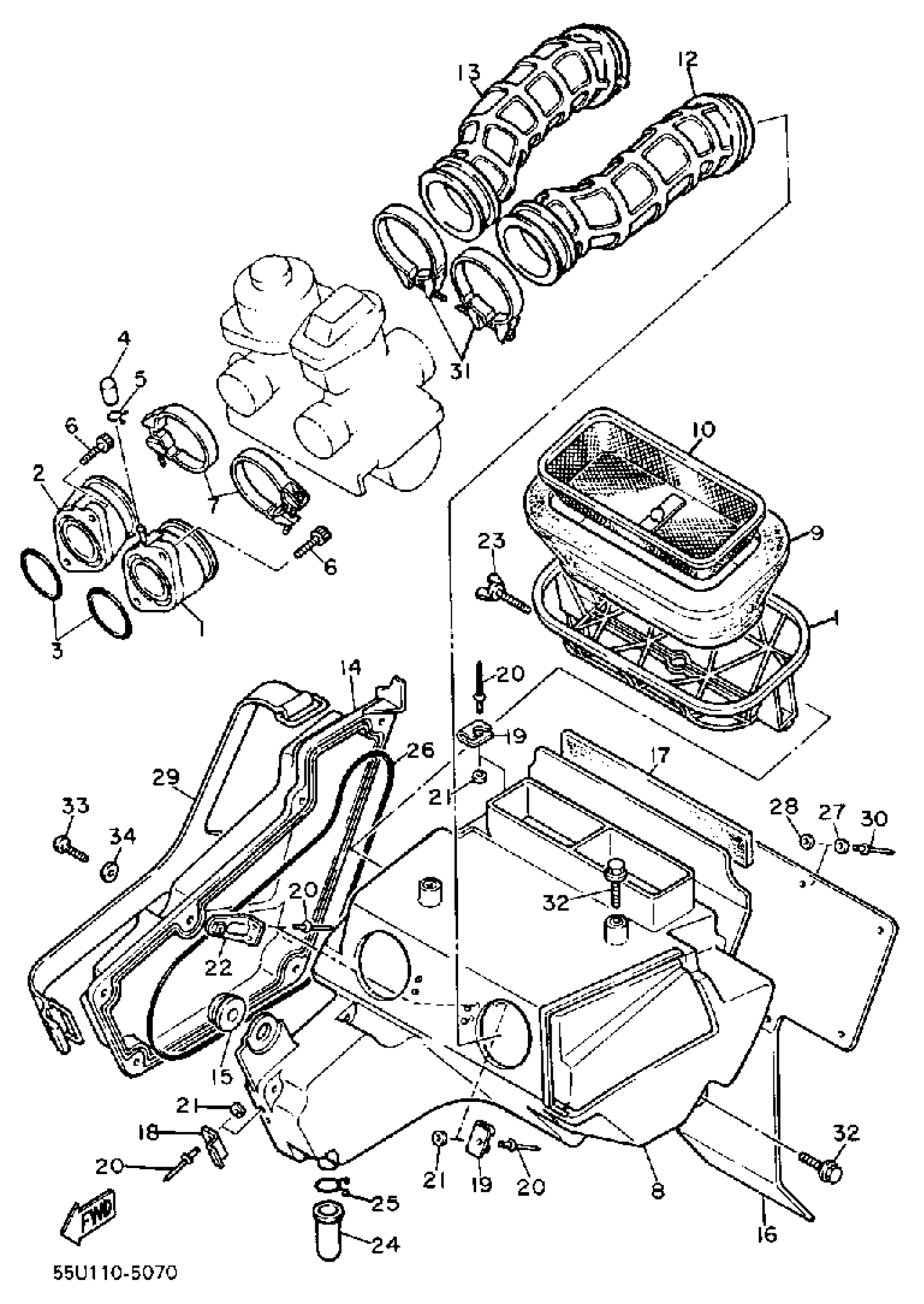

1986 Yamaha TT600 (TT600S) AIR Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

43F-13586-01-00

—

$106.94

In stock

2

JOINT, CARBURETOR 2

43F-13596-01-00

—
Out of stock

3

O-RING(2TY)

93210-36769-00

1
Out of stock

4

PLUG, BLIND

16G-13569-00-00

1
Out of stock

5

CLIP (3G0)

90467-10039-00

1
Out of stock

6

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

7

HOSE CLAMP ASSY

90450-47002-00

1

$7.15

In stock

8

AIR CLNR CASE ASSEMBLYASSY

34K-14401-01-00

1
Out of stock

9

ELEMENT, AIR CLEANER

34K-14451-02-00

—
Out of stock

10

GUIDE, ELEMENT

34K-14458-02-00

1
Out of stock

11

GUIDE, ELEMENT

34K-14473-02-00

1
Out of stock

12

JOINT, AIR CLNR 1

43F-14453-00-00

1
Out of stock

13

JOINT

43F-14454-00-00

1
Out of stock

14

CAP, CLEANER CASE 1

34K-14412-01-00

1
Out of stock

15

GROMMET

90480-13014-00

1

$6.85

In stock

16

FLAP

34K-21621-01-00

1
Out of stock

17

DAMPER 2

34K-14426-00-00

1
Out of stock

18

HOOK

26A-14436-00-00

1
Out of stock

19

PLATE, CLEANER CASE FITTING

34K-14484-00-00

1
Out of stock

20

RIVET, BLIND

90267-40029-00

—

$6.68

In stock

21

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

22

STAY 1

34K-14493-01-00

1
Out of stock

23

BOLT, WING

90122-05010-00

1
Out of stock

24

SEAL

1W4-14457-00-00

1
Out of stock

25

CLIP

90467-20M15-00

1

$6.23

In stock

26

SEAL

51Y-14462-00-00

—

$11.61

In stock

27

WASHER, PLATE (8M6)

90201-047A2-00

—
Out of stock

28

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

29

BAND

34K-14455-00-00

1
Out of stock

30

RIVET, BLIND

90267-40029-00

—

$6.68

In stock

31

CLAMP HOSE 304144550000

90460-51059-00

—

$14.64

In stock

32

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

33

SCREW, PAN HEAD

90157-05M19-00

1

$3.62

In stock

34

WASHER(1RW)

92907-05600-00

—
Out of stock
