1986 Yamaha TT600 (TT600S) Carburetor Diagram

← All diagrams

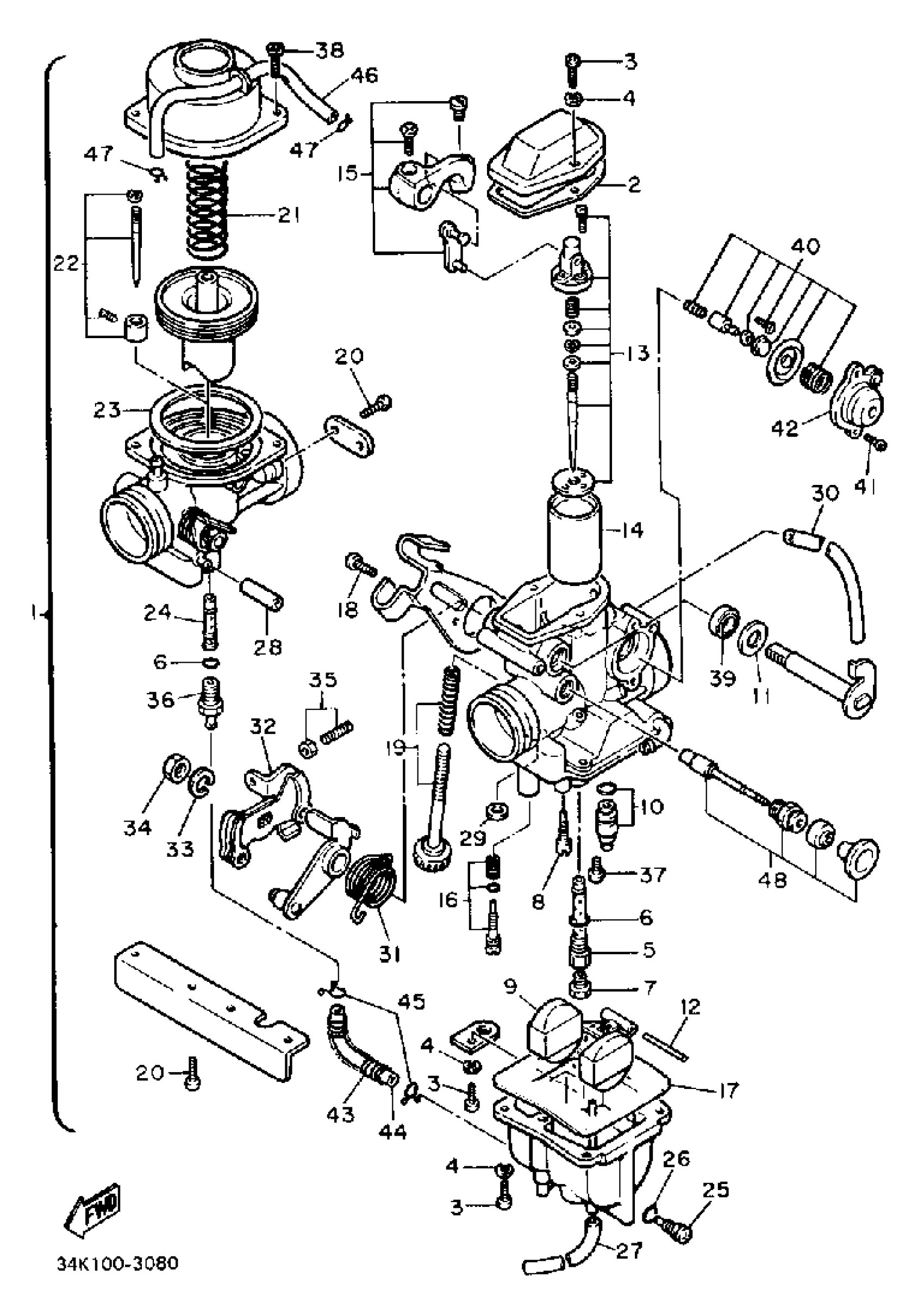

Find the part on the Carburetor diagram for your 1986 Yamaha TT600 (TT600S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha TT600 (TT600S) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASY 1

55U-14301-03-00

1
Out of stock

2

GASKET

5Y1-14198-00-00

1

$6.62

In stock

3

SCREW, PAN HEAD(GA5)

98580-04014-00

1

$2.78

In stock

4

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

5

. NOZZLE, MAIN

5Y3-14341-00-00

1
Out of stock

6

GASKET

360-24512-00-00

1

$8.52

In stock

7

JET, MAIN (# 135)

288-14343-68-00

—
Out of stock

8

JET, PILOT (#48)

43F-14342-24-00

1

$27.77

In stock

9

FLOAT

5Y1-14385-00-00

1
Out of stock

10

NEEDLE VALVE SET

1JK-14107-01-00

1
Out of stock

11

. WASHER, PLAIN

5Y1-14357-00-00

1
Out of stock

12

. PIN, FLOAT

6E5-14386-01-00

1

$5.34

In stock

13

. NEEDLE SET

55U-1490J-10-00

1
Out of stock

14

VALVE, THROTTLE 1

(34K-14312-55-00)

1
Out of stock

15

. CABLE CONNECT SET

5Y1-14203-00-00

1
Out of stock

16

PILOT SCREW SET

50M-14105-00-00

—
Out of stock

17

GASKET, FLOAT CHAMBER

5Y1-14384-00-00

—

$21.11

In stock

18

SCREW, PAN HEAD (E56)

98580-04010-00

—

$6.17

In stock

19

. THROTTLE SCREW SET

34K-14103-00-00

1
Out of stock

20

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

21

. SPRING

5Y1-14286-00-00

1
Out of stock

22

.. NEEDLE SET

43F-1490J-01-00

1
Out of stock

23

GASKET

5Y1-14398-00-00

—
Out of stock

24

. NOZZLE, MAIN

5Y1-14355-00-00

1
Out of stock

25

PLUG, SCREW

5Y1-14115-00-00

—

$35.05

In stock

26

O-RING

5Y1-14397-00-00

—
Out of stock

27

PIPE

5Y1-14396-00-00

—

$3.89

In stock

28

PIPE

5Y1-14349-00-00

—
Out of stock

29

GASKET

5Y1-14536-00-00

—

$5.05

In stock

30

PIPE

5Y1-14197-00-00

—

$5.98

In stock

31

. SPRING, THRTL VALVE

5Y1-14131-00-00

1
Out of stock

32

. THROTTLE LVR COMP

34K-14305-00-00

1
Out of stock

33

. WASHER, SPRING

5Y1-14356-00-00

1
Out of stock

34

. NUT

5Y1-14358-00-00

1
Out of stock

35

. STOP SCREW SET

34K-1490K-00-00

1
Out of stock

36

. JET, MAIN #136

5Y1-14343-68-00

1
Out of stock

37

SCREW, BIND(6L2)

98980-04006-00

1

$4.89

In stock

38

. SCREW, PAN HEAD

98580-04020-00

1

$5.34

In stock

39

O-RING

5Y1-14572-00-00

—

$22.03

In stock

40

DIAPHRAGM SET 1

5Y1-1490A-00-00

—

$25.32

In stock

41

SCREW, PAN HEAD (E56)

98580-04010-00

—

$6.17

In stock

42

. COVER 1

5Y1-14293-01-00

1
Out of stock

43

. SPRING

5Y1-14556-00-00

1
Out of stock

44

. PIPE

5Y1-14148-00-00

1
Out of stock

45

. CLIP

5Y1-14137-00-00

1
Out of stock

46

PIPE

5Y1-14149-00-00

—
Out of stock

47

CLIP

5Y1-14159-00-00

—

$9.05

In stock

48

. PLUNGER, STARTERASSEMBLY

34K-14370-00-00

1
Out of stock
