1985 Yamaha TT600 (TT600N) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1985 Yamaha TT600 (TT600N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

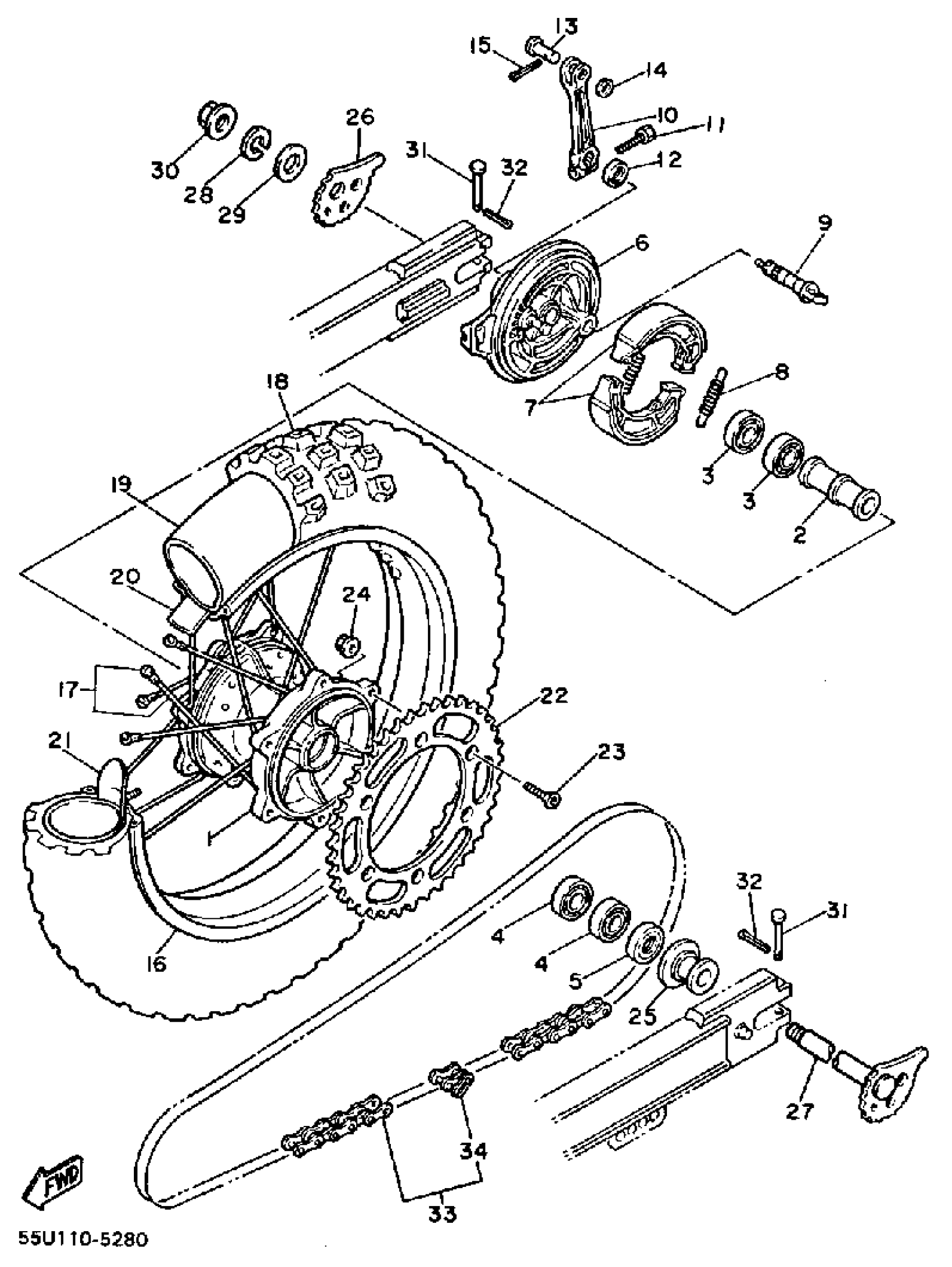

1985 Yamaha TT600 (TT600N) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

56A-25311-00-98

1
Out of stock

2

SPACER

90560-20226-00

1
Out of stock

3

BEARING(8AB)

93306-00444-00

1
Out of stock

4

BEARING(3BN)

93306-00438-00

1
Out of stock

5

OIL SEAL(39X)

93106-28023-00

1
Out of stock

6

PLATE, BRAKE SHOE

26A-25321-00-98

1
Out of stock

7

BRAKE SHOE SET-2PCS

437-W2536-00-00

1
Out of stock

8

SPRING (5T9)

90506-17328-00

—
Out of stock

9

CAMSHAFT

26A-25351-00-00

1
Out of stock

10

LEVER, CAMSHAFT

34L-25355-00-00

1
Out of stock

11

BOLT, HEXAGON (462)

90101-06291-00

1
Out of stock

12

SEAL, CAM SHAFT

148-25359-00-00

1
Out of stock

13

PIN, CLEVIS

1W2-27237-00-00

1
Out of stock

14

WASHER, PLATE (583)

90201-12631-00

1
Out of stock

15

PIN, COTTER(6L5)

91490-25030-00

1
Out of stock

16

RIM 2.50

94425-18409-00

1
Out of stock

17

SPOKE SET, REAR

56A-25304-00-00

1
Out of stock

18

140/90-18 M2A TT

94114-186G1-00

1
Out of stock

19

TUBE

94245-18125-00

1
Out of stock

20

BAND, RIM (2J4)

94340-18086-00

—
Out of stock

21

SPACER, BEAD

2X5-25394-00-00

1
Out of stock

22

SPROCKET, DRIVEN

26A-25450-51-00

1
Out of stock

23

BOLT(1TJ)

90109-081G2-00

—
Out of stock

24

NUT, SELF-LOCKING

90185-08169-00

—
Out of stock

25

COLLAR, WHEEL

26A-25383-00-00

1
Out of stock

26

PULLER, CHAIN 1

4V5-25388-01-00

1
Out of stock

27

AXLE, WHEEL

26A-25381-01-00

1
Out of stock

28

WASHER(N15)

92907-18100-00

—
Out of stock

29

WASHER(3JP)

92903-20600-00

—
Out of stock

30

NUT

90179-18332-00

1
Out of stock

31

PIN, CLEVIS

91701-05045-00

1
Out of stock

32

PIN, COTTER

91490-16020-00

1
Out of stock

33

CHAIN (25Y)

94581-08112-00

1
Out of stock

34

. JOINT, CHAIN (34L) (DID50HDS)

94680-50011-00

1
Out of stock
