1985 Yamaha TT600 (TT600N) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1985 Yamaha TT600 (TT600N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

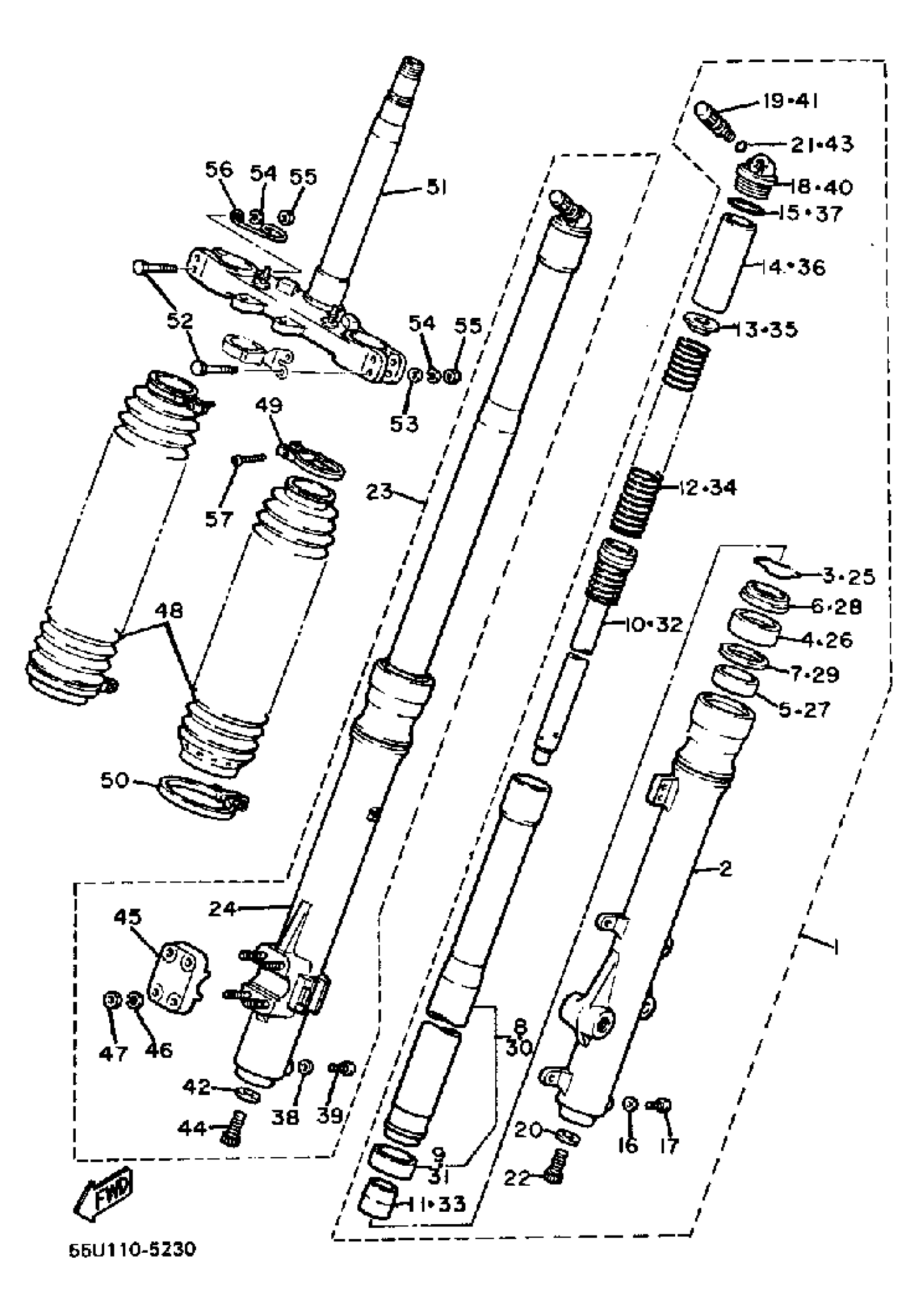

1985 Yamaha TT600 (TT600N) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY L

(55U-23102-00-00)

1
Out of stock

2

TUBE, OUTER 1

(55U-23126-00-00)

1
Out of stock

3

RING, SNAP

4V4-23153-L0-00

1

$8.66

In stock

4

OIL SEAL

23X-23145-L0-00

1

$27.63

In stock

5

METAL, SLIDE 1

5EB-23125-00-00

1
Out of stock

6

SEAL, DUST

23X-23144-L0-00

1

$19.73

In stock

7

WASHER

4V4-23146-L0-00

1

$5.93

In stock

8

INNER TUBE COMP.

55U-23110-00-00

1
Out of stock

9

. PISTON, FRONT FORK

4V4-23171-L0-00

1
Out of stock

10

CYLINDER, FRT FORK

(55U-23170-00-00)

1
Out of stock

11

. SPINDLE, TAPER

4V4-23173-L0-00

1
Out of stock

12

. SPRING, FRONT FORK

55U-23141-00-00

1
Out of stock

13

SEAT, SPRING UPPER

4V4-23142-L0-00

—
Out of stock

14

. SPACER (L=110)

5X6-23118-M0-00

1
Out of stock

15

GASKET

4V4-23158-L0-00

1
Out of stock

16

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

17

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

18

BOLT,CAP

43M-23111-L0-00

1
Out of stock

19

AIR VALVE COMP.

23X-23190-L0-00

—
Out of stock

20

O-RING

4V4-23188-L1-00

—

$4.77

In stock

21

O-RING

3J2-23147-00-00

—
Out of stock

22

. BOLT, HEX SCKT HEADSOCKET HEAD

34K-23181-00-00

1
Out of stock

23

FRONT FORK ASSEMBLY R (R.H)

55U-23103-00-00

1
Out of stock

24

TUBE, OUTER 2

(55U-23136-00-00)

1
Out of stock

25

RING, SNAP

4V4-23153-L0-00

1

$8.66

In stock

26

OIL SEAL

23X-23145-L0-00

1

$27.63

In stock

27

METAL, SLIDE 1

5EB-23125-00-00

1
Out of stock

28

SEAL, DUST

23X-23144-L0-00

1

$19.73

In stock

29

WASHER

4V4-23146-L0-00

1

$5.93

In stock

30

INNER TUBE COMP.

55U-23110-00-00

1
Out of stock

31

. PISTON, FRONT FORK

4V4-23171-L0-00

1
Out of stock

32

CYLINDER, FRT FORK

(55U-23170-00-00)

1
Out of stock

33

. SPINDLE, TAPER

4V4-23173-L0-00

1
Out of stock

34

. SPRING, FRONT FORK

55U-23141-00-00

1
Out of stock

35

SEAT, SPRING UPPER

4V4-23142-L0-00

—
Out of stock

36

. SPACER (L=110)

5X6-23118-M0-00

1
Out of stock

37

GASKET

4V4-23158-L0-00

1
Out of stock

38

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

39

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

40

BOLT,CAP

43M-23111-L0-00

1
Out of stock

41

AIR VALVE COMP.

23X-23190-L0-00

—
Out of stock

42

O-RING

4V4-23188-L1-00

—

$4.77

In stock

43

O-RING

3J2-23147-00-00

—
Out of stock

44

. BOLT, HEX SCKT HEADSOCKET HEAD

34K-23181-00-00

1
Out of stock

45

HOLDER, AXLE

1LX-23167-L0-00

1
Out of stock

46

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

47

NUT(6TA)

95317-06600-00

—

$2.69

In stock

48

BOOT

55U-23191-00-00

1
Out of stock

49

BAND

43M-23192-L0-00

—
Out of stock

50

BAND

3LD-23489-00-00

—

$26.00

In stock

51

UNDER BRACKETCOMP (26A-23340-L0-39)

34K-23340-00-39

1
Out of stock

52

BOLT (1E6)

90101-08340-00

—

$2.72

In stock

53

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

54

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

55

NUT(6L2)

95333-08600-00

—

$3.20

In stock

56

GUIDE, CABLE

4V5-23389-00-00

—

$34.42

In stock

57

SCREW, PAN HEAD

98507-04018-00

—
Out of stock
