1980 Yamaha TT500 (TT500G) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1980 Yamaha TT500 (TT500G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

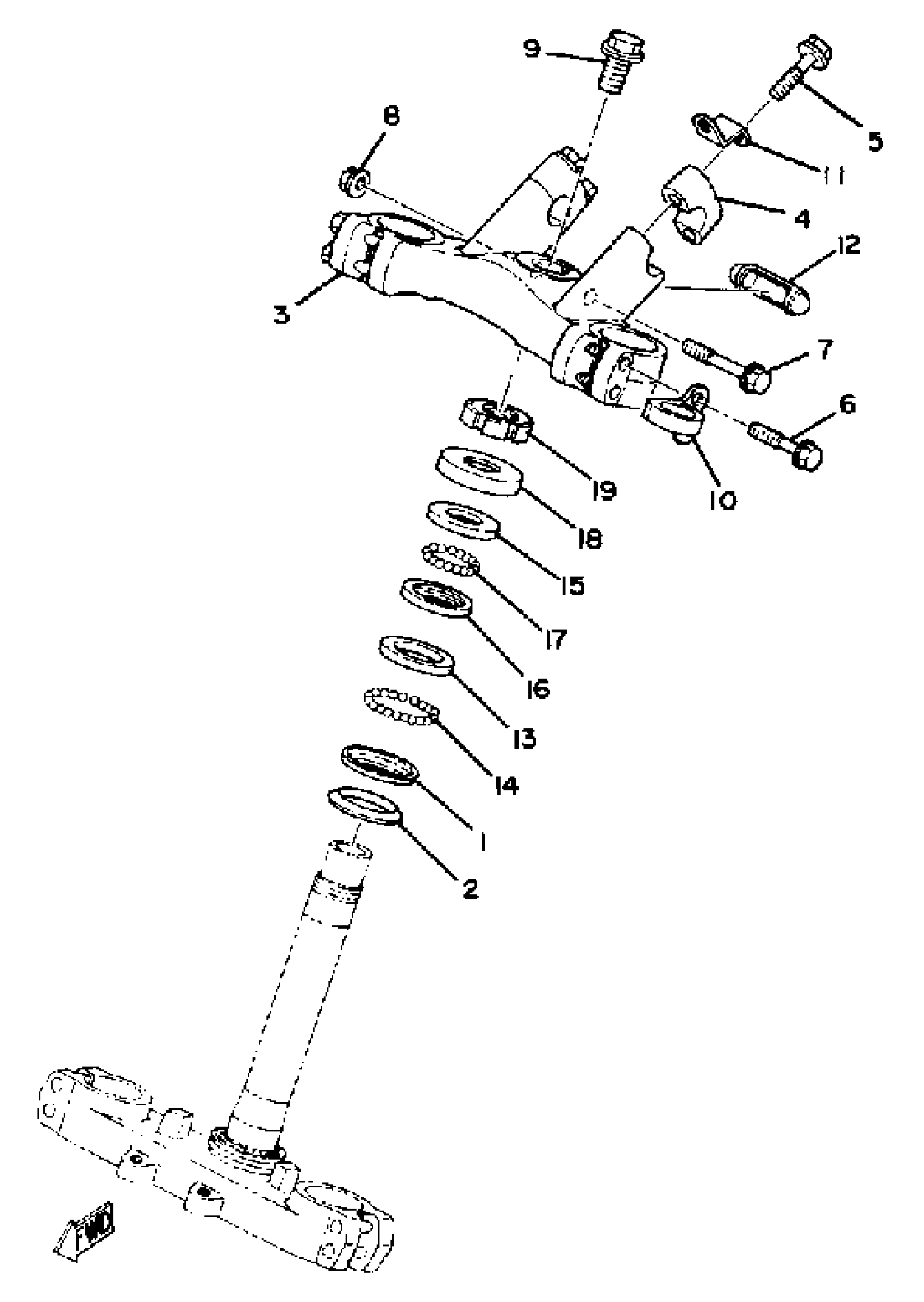

1980 Yamaha TT500 (TT500G) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

2

SEAL, DUST

164-23462-00-00

1

$6.42

In stock

3

CROWN, HANDLE

5X3-23435-01-98

1
Out of stock

4

HOLDER, HANDLE UPPER

1E6-23441-00-00

1

$22.38

In stock

5

BOLT, FLANGE

95817-08035-00

1

$6.68

In stock

6

BOLT, FLANGE

95814-08040-00

1

$3.15

In stock

7

BOLT, FLANGE

95817-08055-00

1

$2.82

In stock

8

NUT, FLANGE

95704-08500-00

1
Out of stock

9

1

$3.91

In stock

10

HOLDER, WIRE

3R4-23317-00-00

1

$29.67

In stock

11

GUIDE, CABLE

1T2-23389-00-00

1
Out of stock

12

CAP, BOLT

583-23469-00-00

1
Out of stock

13

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

14

BALL

93501-04011-00

1
Out of stock

15

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

16

RACE, BALL 2

BP2-23412-00-00

—

$5.71

In stock

17

BALL

93503-16003-00

—

$2.14

In stock

18

COVER, BALL RACE 2

2Y0-23416-00-00

1
Out of stock

19

NUT

90179-25004-00

—

$20.78

In stock
