1980 Yamaha TT500 (TT500G) Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 1980 Yamaha TT500 (TT500G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

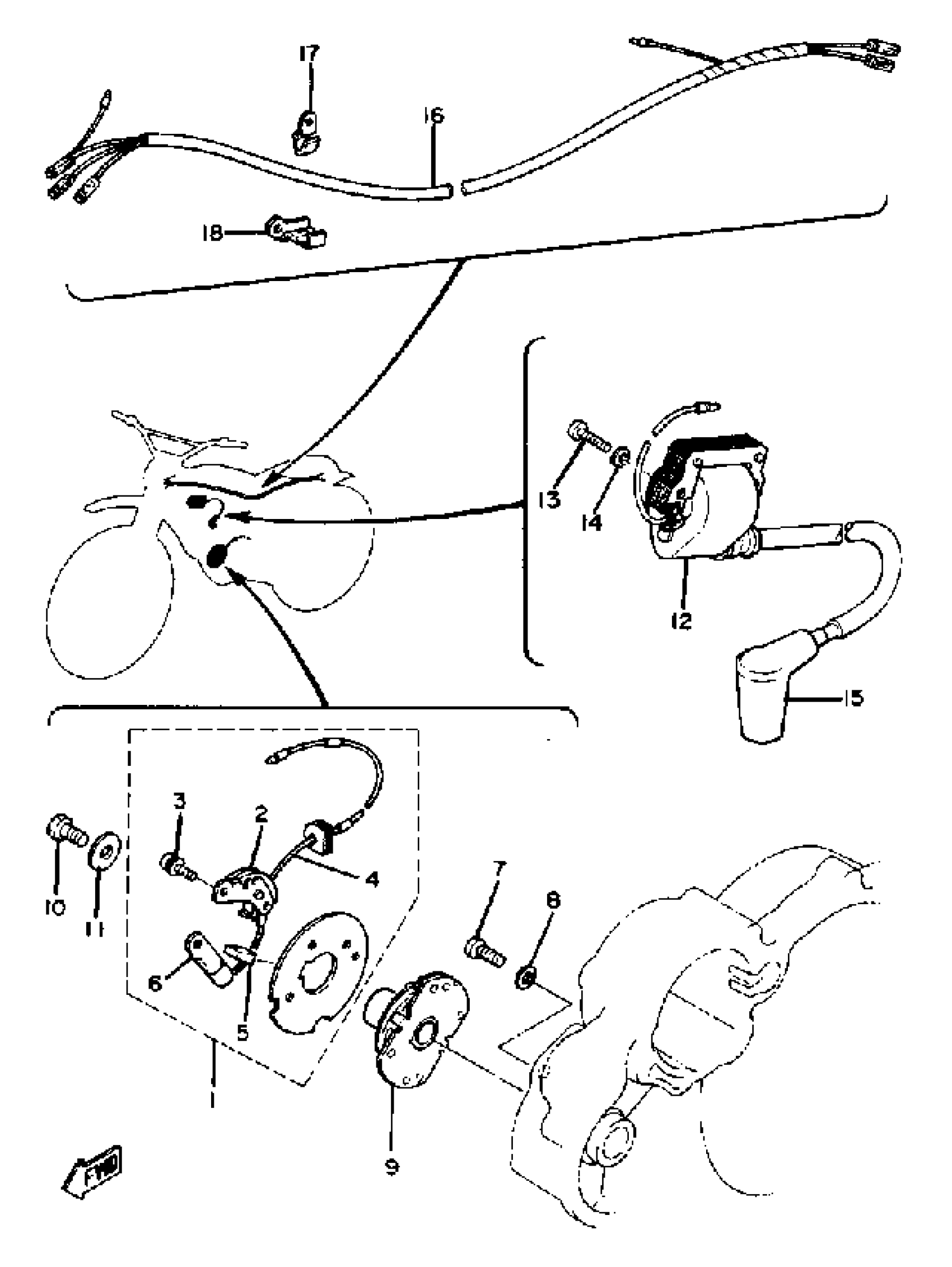

1980 Yamaha TT500 (TT500G) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BREAKER PLATE ASSEMBLY

583-81620-50-00

1
Out of stock

2

CONTACT BREAKER ASSY

583-81621-50-00

1

$77.62

In stock

3

. SCREW, PAN HEAD

98580-04006-00

1

$3.30

In stock

4

. WIRE, LEAD

583-81615-50-00

1
Out of stock

5

. LUBRICATOR

1L9-81631-50-00

1
Out of stock

6

CONDENSER

583-81625-50-00

1

$41.20

In stock

7

SCREW, PAN

98507-06014-00

1

$6.18

In stock

8

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

9

GOVERNOR ASSEMBLY

583-81653-50-00

1
Out of stock

10

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

11

WASHER, PLATE

90201-06020-00

1

$6.28

In stock

12

IGNITION COIL ASSEMBLY

583-82310-50-00

1
Out of stock

13

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

14

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

15

PLUG CAP ASSY

7KA-82370-00-00

1

$62.25

In stock

15

PLUG CAP ASSY

56J-82370-00-00

—

$56.63

In stock

16

WIRE HARNESS ASSEMBLY

2Y0-82590-00-00

1
Out of stock

17

CLAMP

(90465-06086-00)

1
Out of stock

18

CLAMP

90465-10090-00

1
Out of stock
← Steering Flywheel Magneto →
