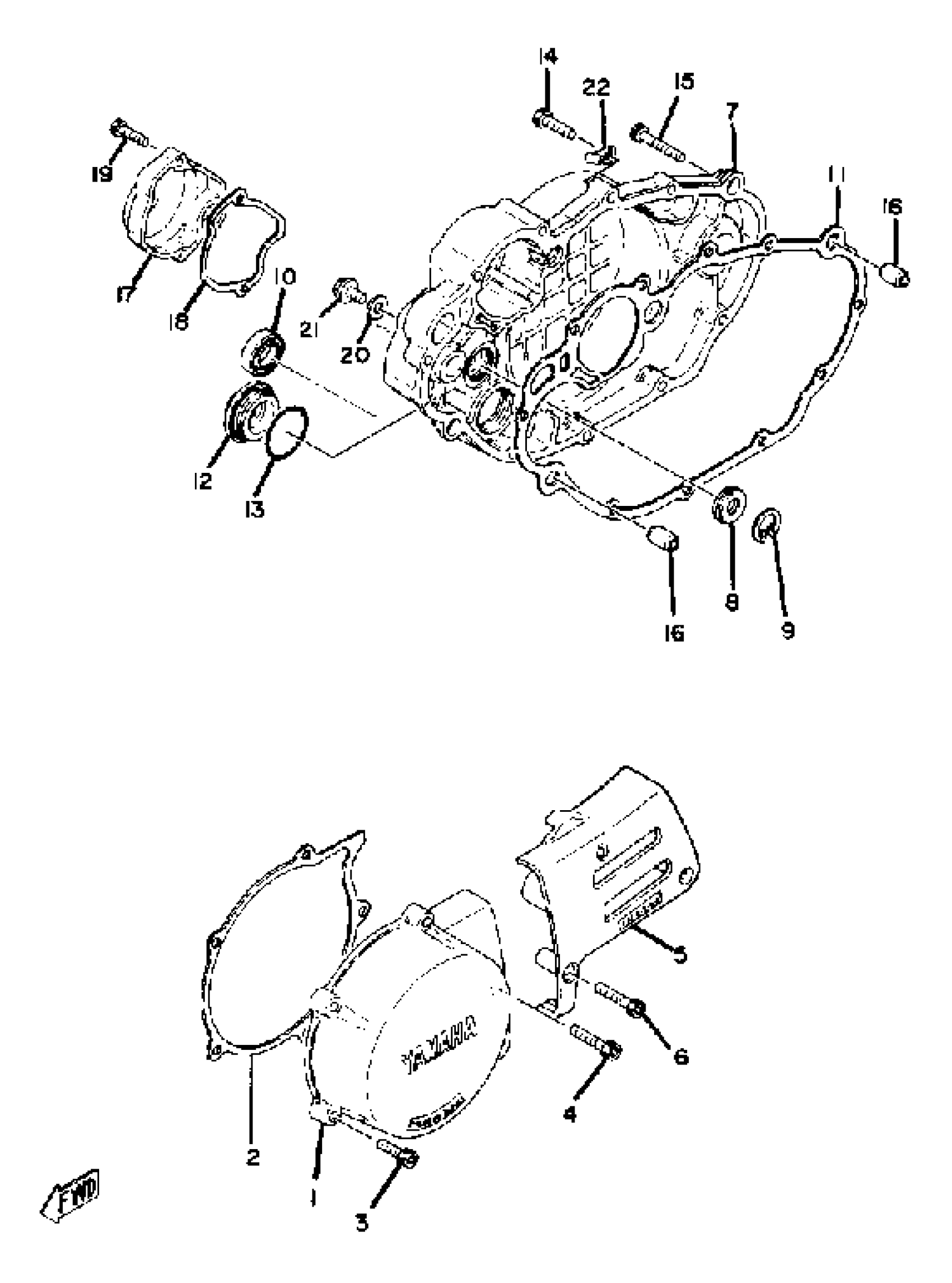

Yamaha TT500G (TT500) 1980 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE L

583-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER 1

3HT-15451-00-00

$20.00

3

BOLT,SOCKET

91317-06025-00

$1.91

4

BOLT,SOCKET

91317-06035-00

$3.27

5

COVER, CRANKCASE R

583-15421-00-00

Unavailable

6

BOLT,SOCKET

91317-06035-00

$3.27

7

COVER, CRANKCASE 3 (583-15431-02-98)

583-W1542-00-00

Unavailable

8

OIL SEAL (14X25X5.5-583)

93101-14089-00

$9.81

9

CIRCLIP

99009-25500-00

$5.23

10

OIL SEAL (15X26X5-583)

93102-15147-00

$7.79

11

CRANKCASE COVER 3 GASKET

3HT-15462-R1-00

Unavailable

12

COVER, GENERATOR R

583-15425-00-00

Unavailable

13

O-RING (5H0)

93210-34474-00

$4.94

14

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.56

15

BOLT,SOCKET

91317-06040-00

$3.22

16

PIN, DOWEL

99530-12016-00

Unavailable

17

COVER, CAP

583-15417-00-00

Unavailable

18

GASKET

3HT-15457-00-00

Unavailable

19

BOLT,SOCKET

91317-06025-00

$1.91

20

GASKET (5R6)

90430-10171-00

Unavailable

21

PLUG STRAIGTSCREW 367185880000

90340-10003-00

Unavailable

22

CLAMP

90465-08076-00

Unavailable
