1978 Yamaha TT500 (TT500E) Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1978 Yamaha TT500 (TT500E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

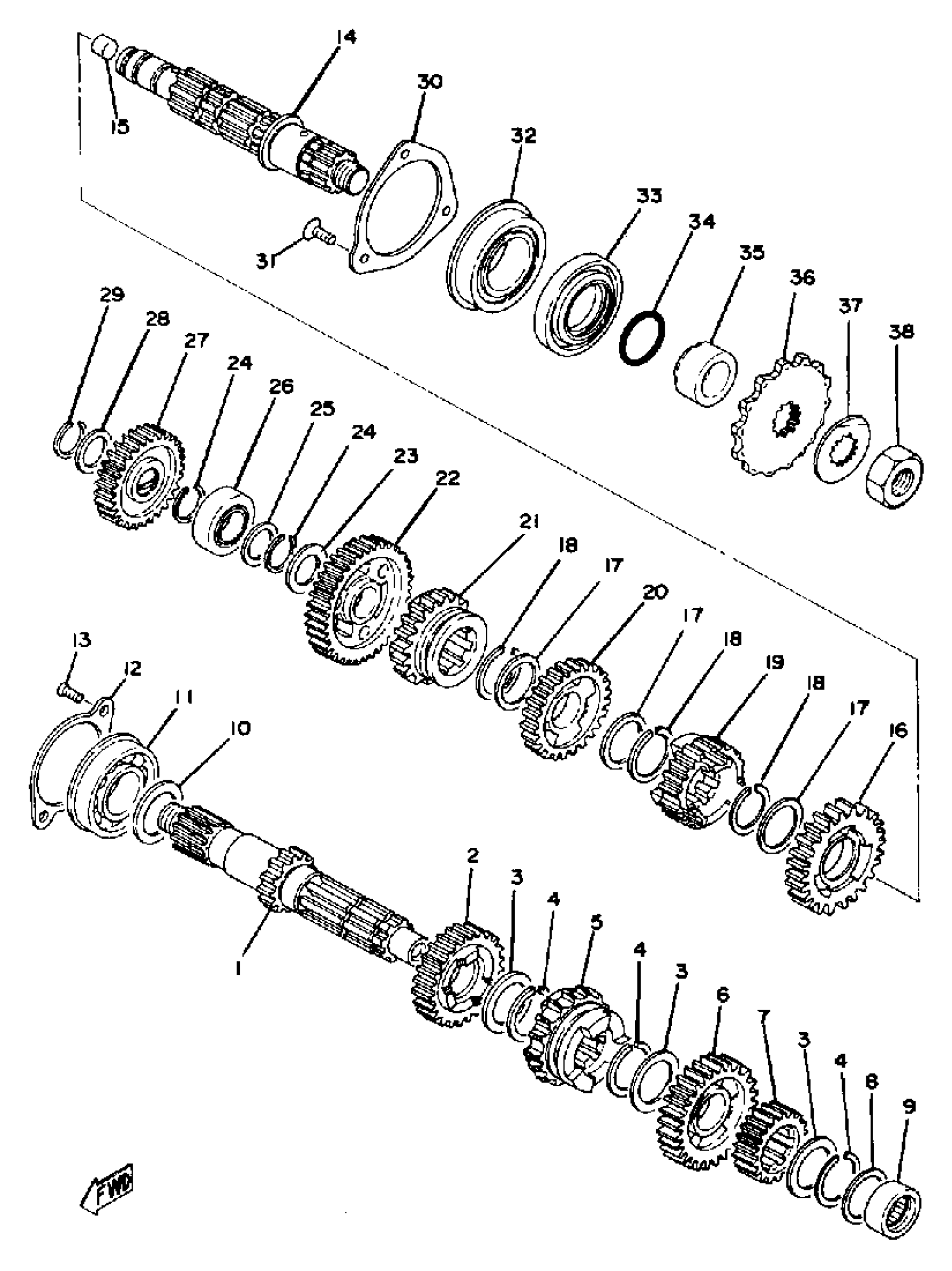

1978 Yamaha TT500 (TT500E) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

583-17411-01-00

—

$162.62

In stock

2

GEAR, 4TH PINION

583-17141-00-00

1
Out of stock

3

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

4

CIRCLIP

93440-25020-00

1
Out of stock

5

GEAR, 3RD PINION

583-17131-02-00

1
Out of stock

6

GEAR, 5TH PINION

583-17151-01-00

1
Out of stock

7

GEAR, 2ND PINION

583-17121-00-00

—
Out of stock

8

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

9

BEARING

93311-42077-00

1
Out of stock

10

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

1
Out of stock

10

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

1
Out of stock

11

BRG,R-B 4205 52MM 185G KY

93304-20501-00

1

$90.57

In stock

12

PLATE, BEARING COVER

583-15383-00-00

—
Out of stock

13

SCREW, FLAT

98707-06014-00

1
Out of stock

14

AXLE, DRIVE

99999-01986-00

1
Out of stock

15

PLUG, SPEC''L SHAPE

90338-09066-00

1
Out of stock

16

GEAR, 2ND WHEEL

583-17221-00-00

—
Out of stock

17

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

18

CIRCLIP

93440-25020-00

1
Out of stock

19

GEAR, 5TH WHEEL

583-17251-01-00

1
Out of stock

20

GEAR, 3RD WHEEL

583-17231-01-00

1
Out of stock

21

GEAR, 4TH WHEEL

583-17241-00-00

—
Out of stock

22

GEAR, 1ST WHEEL

583-17211-00-00

—
Out of stock

23

WASHER PLATE 168171160000

90201-20278-00

—
Out of stock

24

CIRCLIP (525)

93410-20038-00

—

$2.62

In stock

25

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

26

BRG,CYL-CAL ROLLER 52G TM

93313-32008-00

—
Out of stock

27

GEAR, KICK IDLE

583-15651-00-00

—
Out of stock

28

WASHER, PLATE (30X)

90201-177G4-00

—
Out of stock

29

CIRCLIP(1EY)

99009-17400-00

—
Out of stock

30

PLATE, BRNG COVER

(363-15381-00-00)

1
Out of stock

31

SCREW, FLAT

98707-05012-00

—
Out of stock

32

BRG,R-B 6305 62MM 232.35G NT

93306-30517-00

—
Out of stock

33

OIL SEAL, SD-TYPE

93102-35180-00

1
Out of stock

34

O-RING

93210-22298-00

—

$6.57

In stock

35

COLLAR

90387-25507-00

1
Out of stock

36

SPROCKET, DRIVE (14T)

9383E-14215-00

—

$20.42

In stock

36

SPROCKET, DRIVE

4DN-17460-00-00

—

$50.31

In stock

36

SPROCKET, DRIVE 16T (16T)

9383E-16106-00

1
Out of stock

37

WASHER, LOCK(3LD)

90215-21290-00

—
Out of stock

38

NUT 152174630000

90179-18020-00

—
Out of stock
