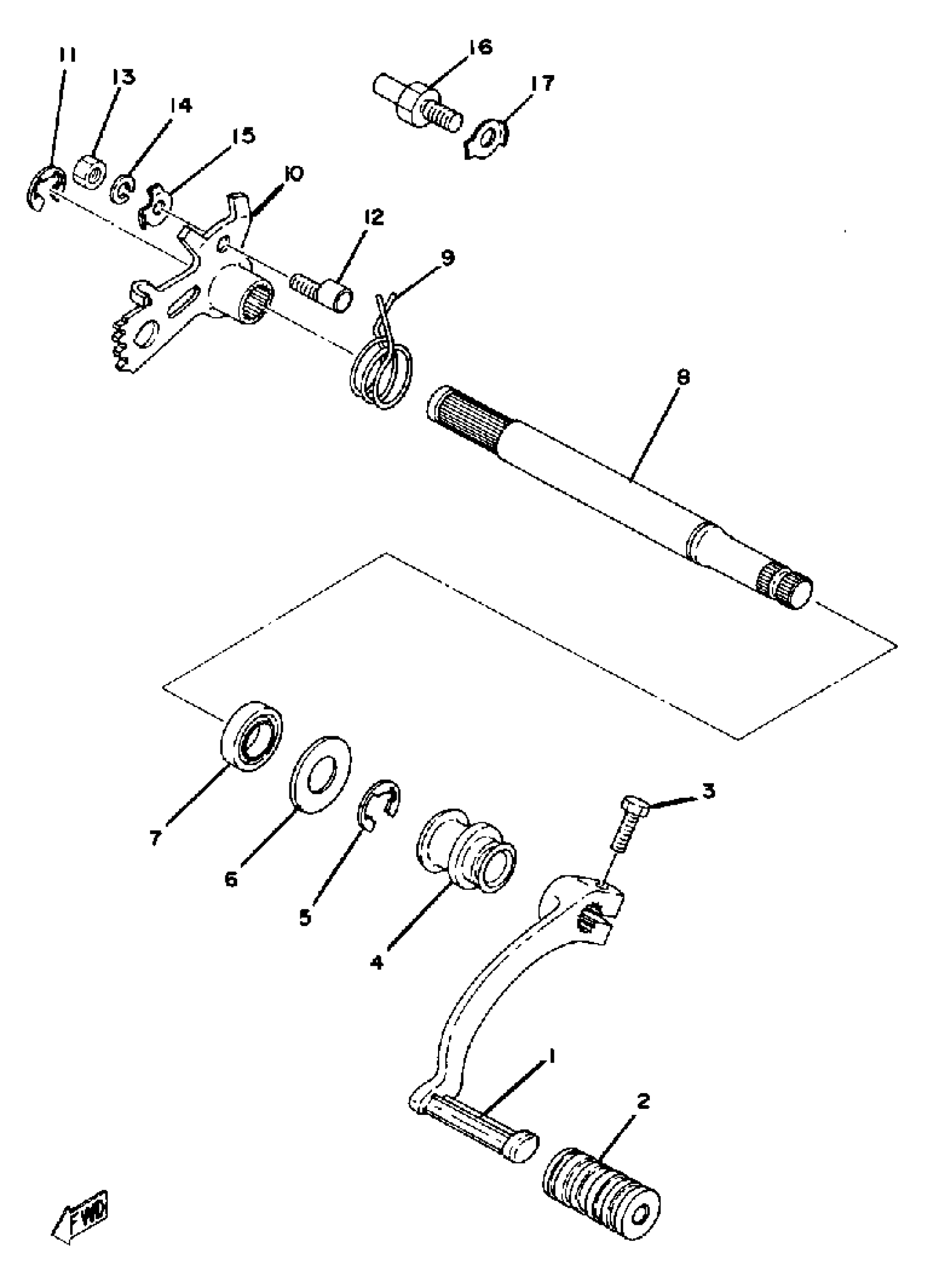

Yamaha TT500E (TT500) 1978 SHIFT SHAFT Diagram

#

Description
Price

1

PEDAL, SHIFT

3UL-18111-00-00

Unavailable

2

COVER, CHANGE PEDAL

132-18113-01-00

$5.96

3

BOLT, HEXAGON

97017-06020-00

$2.37

4

BOOTS, SEALING

583-18131-00-00

$15.21

5

. CIRCLIP

99001-12600-00

$5.30

6

WASHER PLATE 248181370000

90201-14220-00

$5.75

7

OIL SEAL (14X24X6-256)

93109-14010-00

$9.94

8

SHAFT, SHIFT

583-18125-00-00

Unavailable

9

SPRING TORSION 214181240000

90508-32052-00

$5.23

10

LEVER, CHANGE 1

434-18121-00-00

Unavailable

11

CIRCLIP

99006-10600-00

$6.45

12

SCREW 214181860000

90149-06017-00

$5.59

13

NUT, HEXAGON

95380-06600-00

$4.11

14

WASHER, SPRING

92995-06100-00

$2.95

15

WASHER, LOCK

90215-06016-00

$2.21

16

STOPPER, SCREW

278-18127-01-00

Unavailable

17

WASHER, LOCK (583 SHIFT)

90215-08115-00

Unavailable
