1978 Yamaha TT500 (TT500E) Stand-Footrest Diagram

← All diagrams

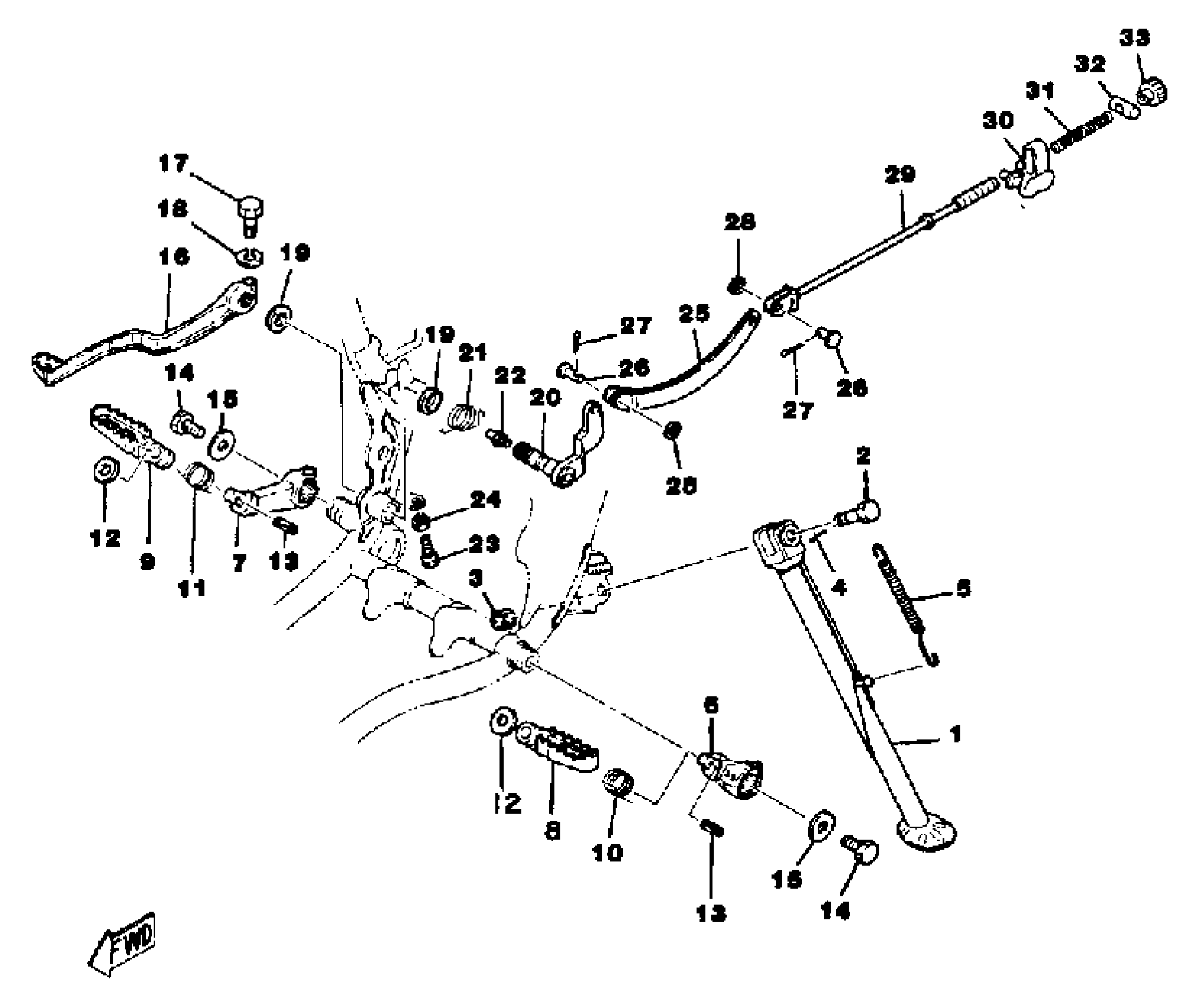

Find the part on the Stand-Footrest diagram for your 1978 Yamaha TT500 (TT500E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha TT500 (TT500E) Stand-Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, SIDE (583-27311-00)

1T1-27311-00-33

1
Out of stock

2

1

$9.10

In stock

3

NUT, CASTLE

95307-10900-00

—

$7.55

In stock

4

PIN, COTTER

91490-20025-00

1

$1.31

In stock

5

SPRING, TENSION (498)

90507-29021-00

1

$19.82

In stock

6

BRACKET, FOOTREST 1

2Y0-27412-00-33

1
Out of stock

7

BRACKET, FOOTREST 2

2Y0-27422-00-33

1
Out of stock

8

FOOTREST 1

583-27411-00-00

1
Out of stock

9

FOOTREST 2

583-27421-00-00

1
Out of stock

10

SPRING, TORSION

90508-26277-00

1
Out of stock

11

SPRING, TORSION

90508-26276-00

1
Out of stock

12

WASHER, PLATE (583)

90201-12631-00

1
Out of stock

13

PIN, SPRING (6H4)

91690-30020-00

1

$3.07

In stock

14

BOLT,HEXAGON

97017-10016-00

—

$6.85

In stock

15

WASHER (583)

90201-10639-00

1
Out of stock

16

PEDAL, BRAKE

1U6-27211-00-93

1
Out of stock

17

BOLT (1T1)

90109-06470-00

—
Out of stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

COVER, DUST

498-27235-00-00

—

$9.49

In stock

20

LEVER, BRAKE PEDAL

1E6-27252-00-00

1
Out of stock

21

SPRING, TORSION

90508-32278-00

1
Out of stock

22

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

23

SCREW 341272170000

90153-06008-00

—

$5.75

In stock

24

NUT, HEXAGON (371 447)

90170-06184-00

—

$5.02

In stock

25

ROD, JOINT

583-27241-00-00

1
Out of stock

26

PIN, CLEVIS

90240-08051-00

1
Out of stock

27

PIN, COTTER

91490-20025-00

1

$1.31

In stock

28

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

29

ROD, BRAKE

583-27231-00-00

1
Out of stock

30

COVER

(583-27244-00-00)

1
Out of stock

31

SPRING, (180-27236-00)

90501-10245-00

—

$6.17

In stock

32

PIN 1562723700

90249-12008-00

—

$4.70

In stock

33

NUT, SPEC''L SHAPE

90179-06006-00

1
Out of stock
