1978 Yamaha TT500 (TT500E) Fender Diagram

← All diagrams

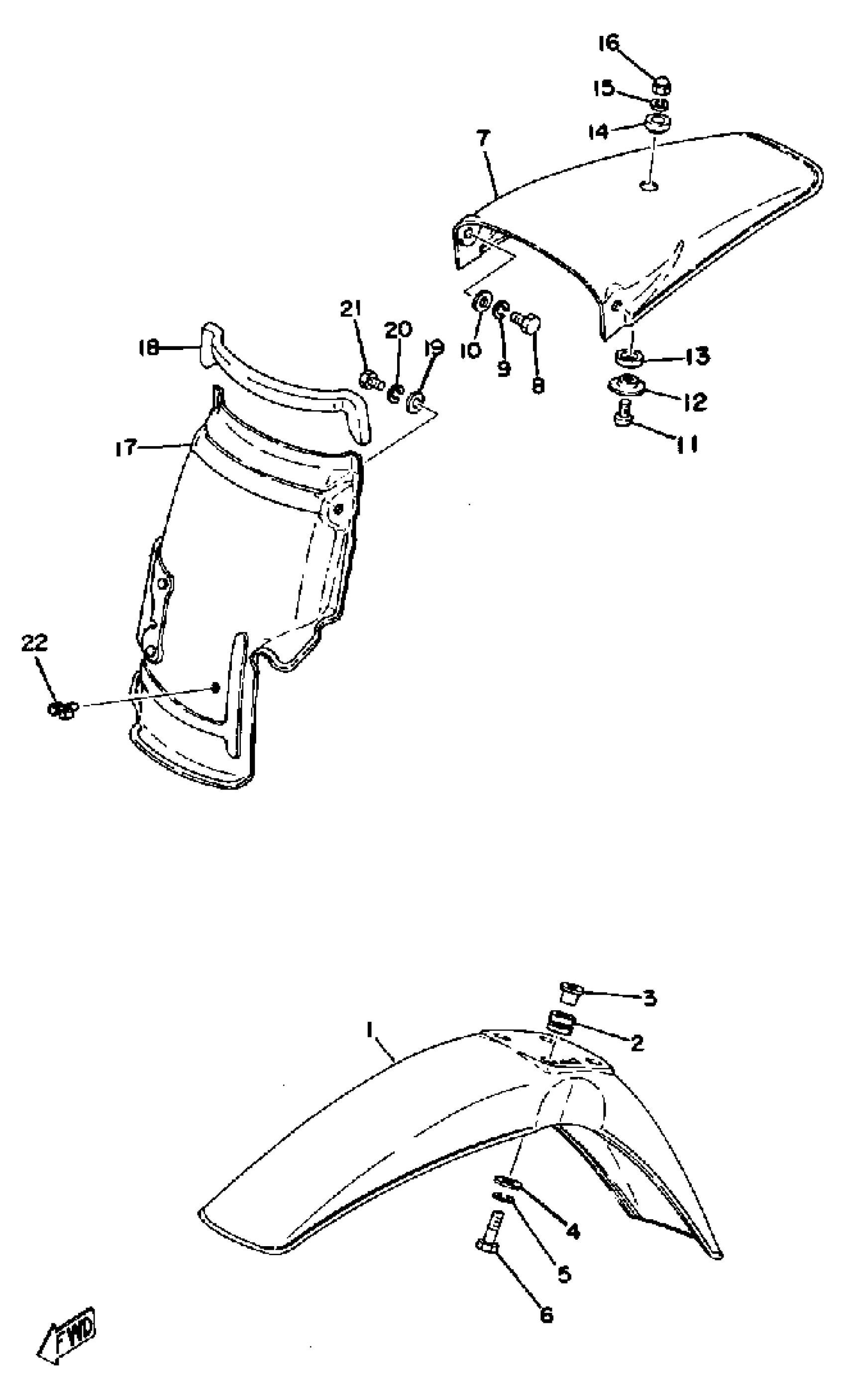

Find the part on the Fender diagram for your 1978 Yamaha TT500 (TT500E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha TT500 (TT500E) Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT

(1T1-21511-10-00)

1
Out of stock

2

GROMMET

90480-14198-00

1
Out of stock

3

COLLAR

90387-06158-00

1

$6.17

In stock

4

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

7

FENDER, REAR

(1T1-21611-10-00)

1
Out of stock

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

1

$6.42

In stock

11

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

12

WASHER, SPECIAL SHAPE

90209-06087-00

1
Out of stock

13

DAMPER 2

(322-21639-00-00)

1
Out of stock

14

DAMPER, FENDER

322-21541-00-00

1

$6.72

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

NUT (J17)

95380-06800-00

—

$6.74

In stock

17

MUD GUARD COMP.

1T1-21620-00-00

—

$68.92

In stock

18

DAMPER

583-21746-00-00

1
Out of stock

19

1

$6.42

In stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

22

CLAMP (1A0)

90464-08020-00

—

$9.12

In stock
