- TT500E (TT500) 1978
FRAME-SIDE COVER

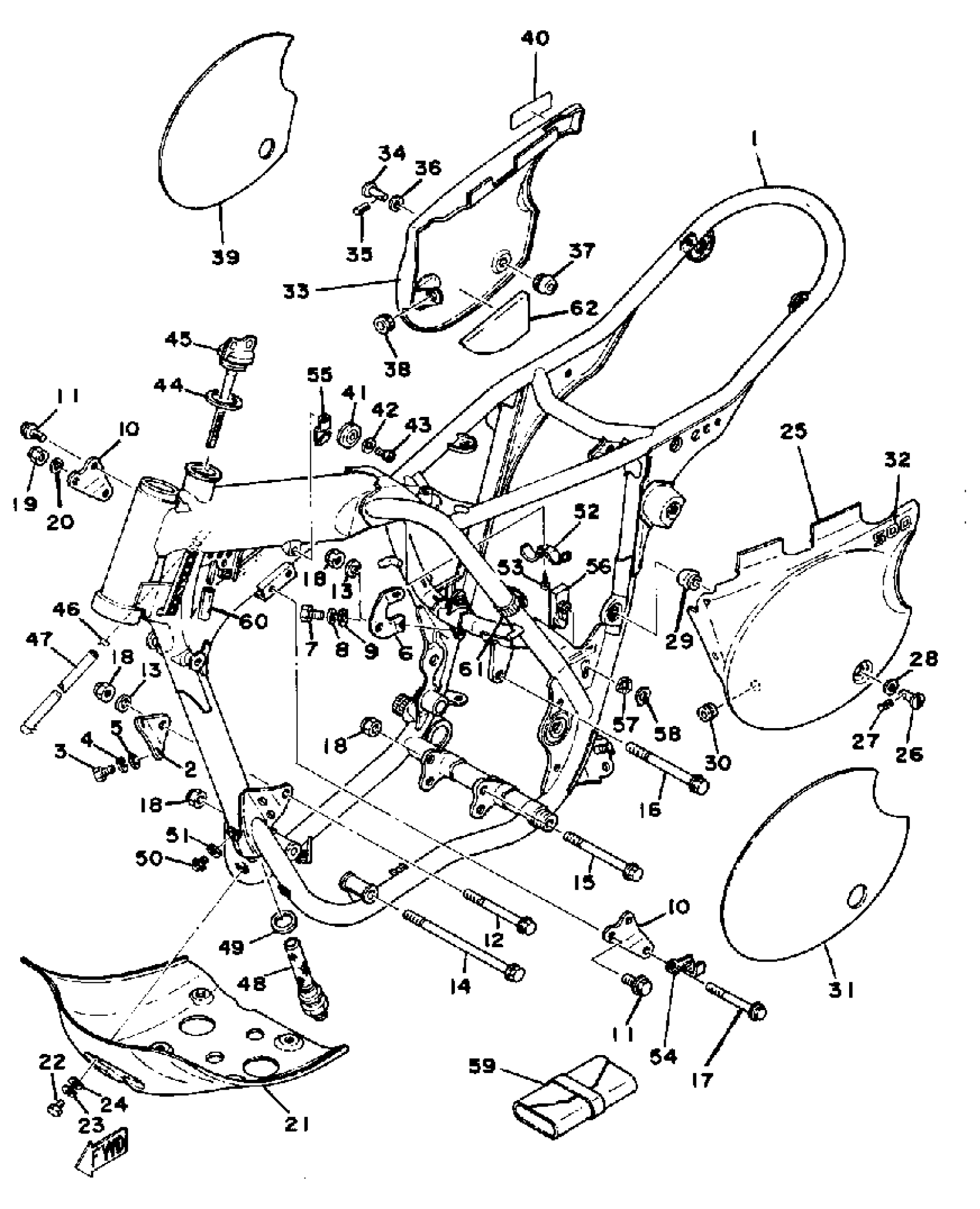

1978 Yamaha TT500 (TT500E) Frame-Side Cover Diagram
Find the part on the Frame-Side Cover diagram for your 1978 Yamaha TT500 (TT500E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
UNAVAILABLE IN PRICE BOOK
1T-12111-00-03
2
STAY, ENGINE 3
583-21316-00-00
6
STAY, ENGINE 4
1T1-21317-00-00
10
STAY,ENGINE 2
583-21315-00-00
12
BOLT, WASHER BASED(1RU)
90105-10747-00
15
BOLT, WASHER BASED (2H7)
90105-10105-00
17
BOLT, FLANGE
95814-08080-00
20
WASHER, CONICAL SPRING
90208-08011-00
21
PROTECTOR, ENGINE
1T1-21471-01-00
25
COVER, SIDE 1
1T1-21711-10-00
29
DAMPER, SIDE COVER
583-21747-00-00
31
EMBLEM 6
(583-21786-00-00)
32
UNAVAILABLE IN PRICE BOOK
1T-12178-41-00
33
COVER, SIDE 2
1T1-21721-10-00
37
DAMPER, SIDE COVER
583-21747-00-00
39
UNAVAILABLE IN PRICE BOOKRIGHT
1T-12178-70-00
40
UNAVAILABLE IN PRICE BOOK
1T-12178-41-00
41
DAMPER, LOCATING 1
583-24181-00-00
42
YBS67-5 WASHER, SPRING
92990-05100-00
44
GASKET (583 OIL TANK CAP)
90430-27124-00
45
BODY, CAP
2J2-21771-10-00
46
CLIP
90467-100A1-00
47
HOSE (L200)
90445-11289-00
48
NET, OIL TANK FILTER
583-21756-00-00
52
UNAVAILABLE IN PRICE BOOK
58-32175-50-00
53
SCREW, TAPPING(6U1)
97780-50610-00
54
CLAMP
90465-10090-00
55
UNAVAILABLE IN PRICE BOOK
90-46506-08-60
56
PORTECTOR, CHAIN
583-22147-01-00
59
TOOL KIT (1E6-28100-10)
1JN-W2810-00-00
60
HOSE
(90446-07114-00)
62
INSULATOR, SIDE CVR (1T1-2174A-01)
1T1-2174A-02-00
