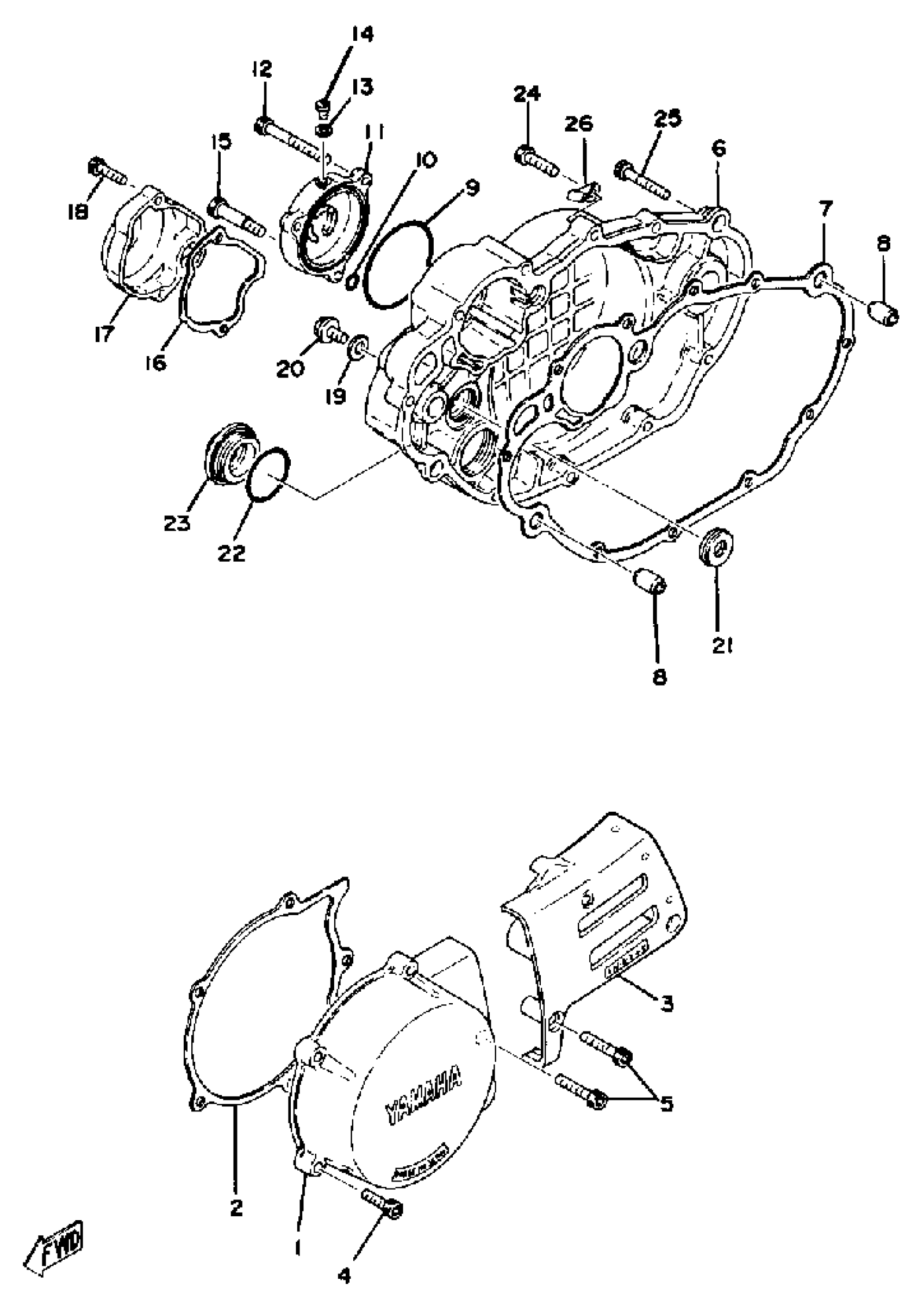

Yamaha TT500E (TT500) 1978 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE L

583-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER 1

3HT-15451-00-00

$20.00

3

COVER, CRANKCASE R

583-15421-00-00

Unavailable

4

BOLT,SOCKET

91317-06025-00

$1.91

5

BOLT,SOCKET

91317-06035-00

$3.27

6

COVER, CRANKCASE 3 (583-15431-02-98)

583-W1542-00-00

Unavailable

7

CRANKCASE COVER 3 GASKET

3HT-15462-R1-00

Unavailable

8

PIN, DOWEL

99530-12016-00

$3.85

9

O-RING (583 OIL CLEANER)

93210-64297-00

$6.66

10

O-RING

93210-07438-00

$5.75

11

COVER, OIL ELEMENT

583-13447-01-00

$22.71

12

BOLT,SOCKET

91317-06060-00

$3.05

13

GASKET

90430-05126-00

$5.61

14

SCREW (583)

90149-05110-00

$6.77

15

BOLT (583 OIL DRAIN)

90109-06419-00

$5.75

16

GASKET

3HT-15457-00-00

Unavailable

17

COVER, CAP

583-15417-00-00

Unavailable

18

BOLT,SOCKET

91317-06025-00

$1.91

19

GASKET (5R6)

90430-10171-00

Unavailable

20

PLUG STRAIGTSCREW 367185880000

90340-10003-00

Unavailable

21

OIL SEAL (14X25X5.5-583)

93101-14089-00

Unavailable

22

O-RING (5H0)

93210-34474-00

Unavailable

23

COVER, GENERATOR R

583-15425-00-00

Unavailable

24

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

25

BOLT,SOCKET

91317-06040-00

Unavailable

26

CLAMP

90465-08076-00

Unavailable
