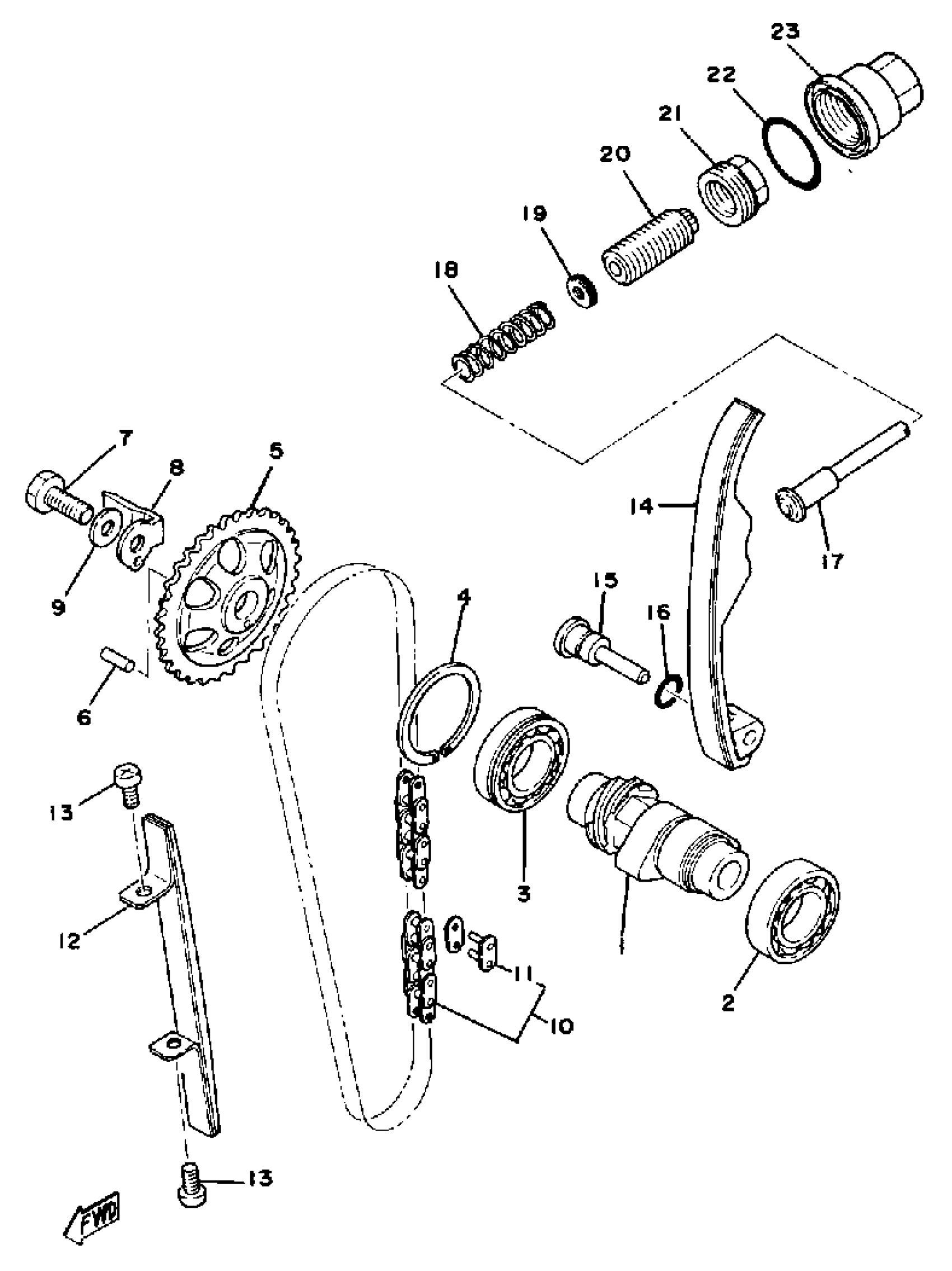

Yamaha TT500E (TT500) 1978 CAMSHAFT-CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

583-12171-02-00

Unavailable

2

BEARING(1FF)

93306-00519-00

$29.98

3

BEARING(1FF)

93306-00519-00

$29.98

4

CIRCLIP (583 CAM SHAFT)

93440-47044-00

$10.61

5

SPROCKET, CAM CHAIN DRIVEN

583-12176-00-00

$48.71

6

PIN, DOWEL (409)

93604-16092-00

$1.86

7

BOLT (583)

90101-10303-00

$5.81

8

PLATE

1T1-12279-00-00

Unavailable

9

WASHER, PLATE (3L6)

90201-10774-00

$5.81

10

CHAIN, CAM SHAFT (583)

94500-02106-00

$54.08

11

JOINT, CHAIN (583)

94600-02001-00

$6.29

12

GUIDE, STOPPER 1

583-12231-01-00

Unavailable

13

SCREW, PAN

98507-06014-00

$5.76

14

GUIDE, STOPPER 2

341-12241-04-00

Unavailable

15

SHAFT, CHAIN TENSIONER

583-12247-00-00

Unavailable

16

O-RING (256)

93210-12152-00

Unavailable

17

ROD, CHAIN TENSIONER

583-12217-00-00

Unavailable

18

SPRING COMPRESSION341122160200

90501-14095-00

Unavailable

19

DAMPER (583-12232-00)

583-12232-01-00

Unavailable

20

SCREW (34F)

90149-18191-00

Unavailable

21

NUT (583 CHAIN TENSIONER)

90179-18199-00

Unavailable

22

O-RING (341)

93210-32172-00

Unavailable

23

CAP, CHAIN TENSIONER

583-12212-00-00

Unavailable
