1977 Yamaha TT500 (TT500D) Steering Diagram

← All diagrams

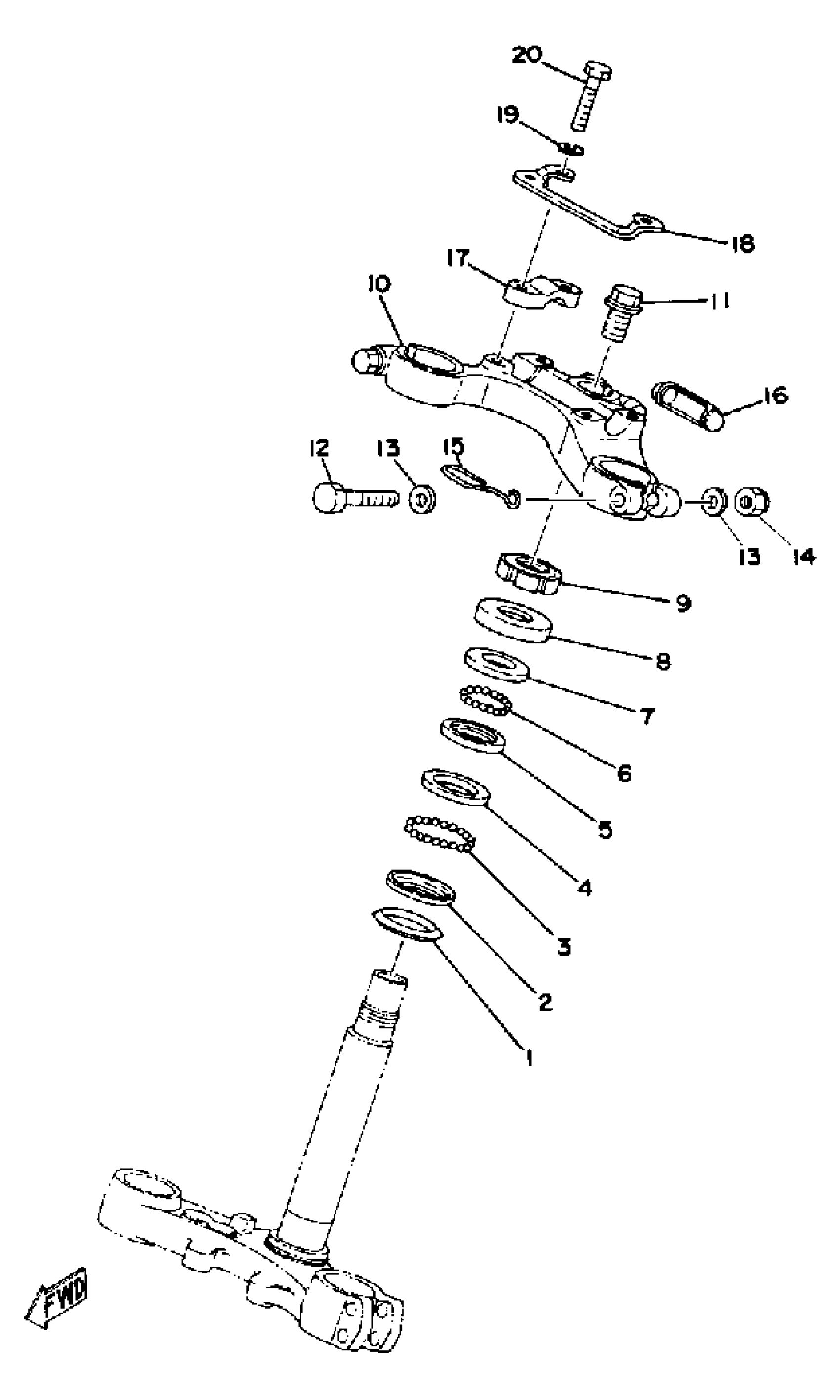

Find the part on the Steering diagram for your 1977 Yamaha TT500 (TT500D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha TT500 (TT500D) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAL, DUST

164-23462-00-00

1

$6.42

In stock

2

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

3

BALL

93501-04011-00

1
Out of stock

4

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

5

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

6

BALL

93503-16003-00

1

$2.14

In stock

7

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

8

COVER, BALL RACE 2

1T1-23416-00-00

1
Out of stock

9

NUT

90179-25004-00

1

$20.78

In stock

10

CROWN, HANDLE

(583-23435-01-98)

1
Out of stock

11

1

$3.91

In stock

12

BOLT, HEXAGON

97013-08055-00

1

$3.25

In stock

13

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

14

NUT, U

95617-08100-00

1

$6.78

In stock

15

HOLDER, CABLE

(583-23317-00-00)

1
Out of stock

16

CAP, BOLT

583-23469-00-00

1
Out of stock

17

HOLDER, HANDLE UPPER

401-23441-00-98

1
Out of stock

18

GUIDE, CABLE

(583-23389-00-00)

1
Out of stock

19

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

20

BOLT

97013-08035-00

—

$4.80

In stock
