1977 Yamaha TT500 (TT500D) Front Fork Diagram

← All diagrams

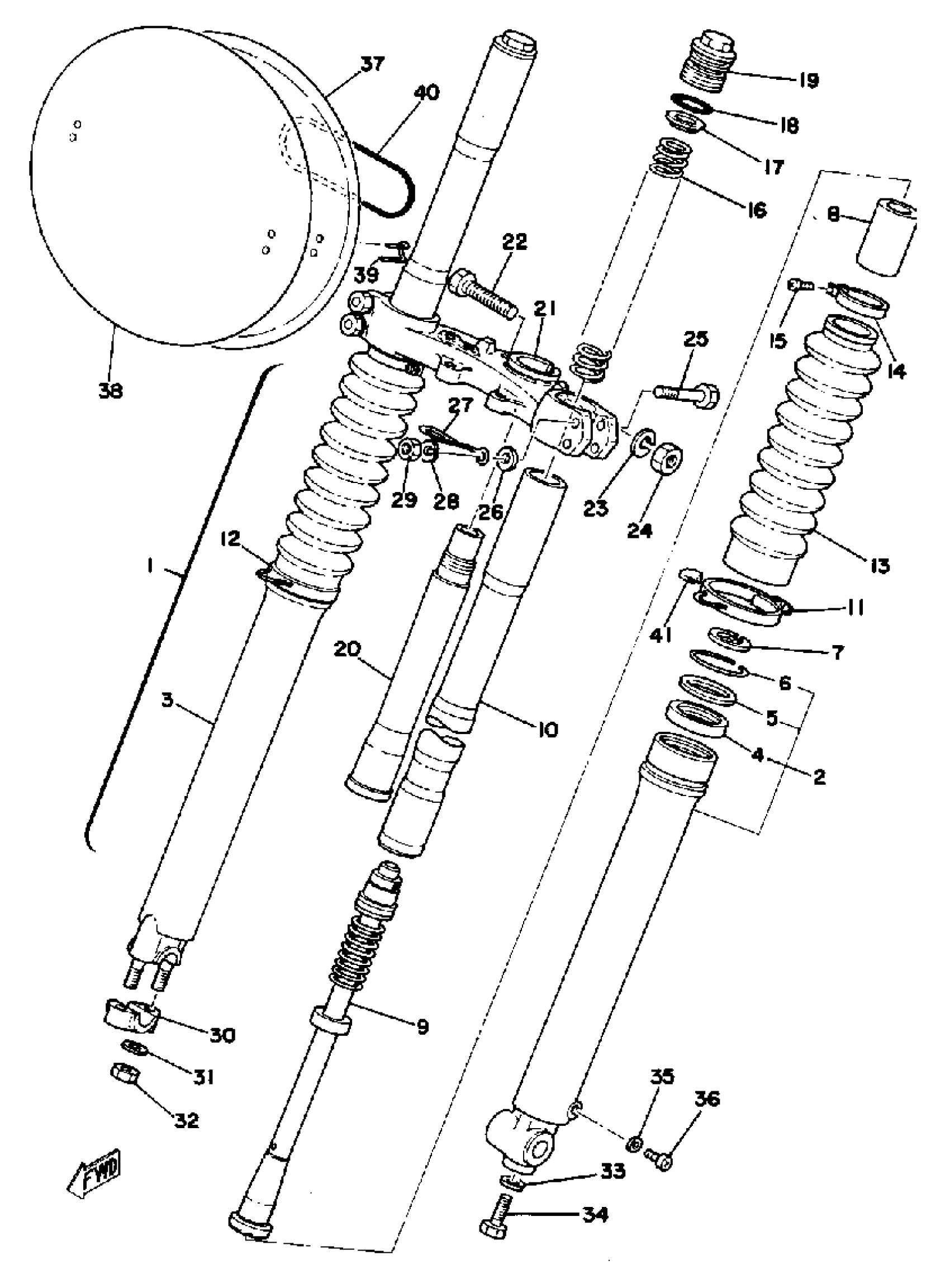

Find the part on the Front Fork diagram for your 1977 Yamaha TT500 (TT500D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha TT500 (TT500D) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(1T1-23101-01-00)

1
Out of stock

2

TUBE, OUTER 1

(1T2-23126-00-00)

1
Out of stock

3

TUBE, OUTER 2

(1T2-23136-00-00)

1
Out of stock

4

OIL SEAL

48Y-23145-00-00

1
Out of stock

5

WASHER, OIL SEAL

341-23146-50-00

1

$8.72

In stock

6

CLIP, OIL SEAL

341-23156-50-00

1

$29.03

In stock

7

CIRCLIP, INNER

(93450-30039-00)

1
Out of stock

8

PISTON, FRONT FORK

(583-23171-00-00)

1
Out of stock

9

CYLINDER, FRTFRK

(1T1-23170-00-00)

1
Out of stock

10

TUBE, INNER 1

(1T1-23124-00-00)

1
Out of stock

11

HOLDER, CABLE 1

(583-23318-00-00)

1
Out of stock

12

BAND

509-23489-L0-00

1
Out of stock

13

BOOT, FRONT FORK

(509-23191-L1-00)

1
Out of stock

14

BAND, BOOT

341-92090-60-00

1
Out of stock

15

SCREW

509-23194-L0-00

1

$4.12

In stock

16

SPRING, FRONT FORK

(1T1-23141-00-00)

1
Out of stock

17

. SEAT, SPRING UPPER

583-23142-00-00

1
Out of stock

18

GASKET

240-23114-00-00

—

$12.27

In stock

19

. BOLT, CAP (583-23111-00)

2W6-23111-00-00

1
Out of stock

19

. UNAVAILABLE IN PRICE BOOK

5W6-23111-00-00

1
Out of stock

20

SHAFT, STEERING

(1E6-23341-00-00)

1
Out of stock

21

UNDER BRACKET

(2H1-23340-00-33)

1
Out of stock

22

BOLT 2

(322-23356-00-00)

1
Out of stock

23

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

24

NUT

(322-23357-00-00)

1
Out of stock

25

BOLT (1E6)

90101-08340-00

—

$2.72

In stock

26

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

27

HOLDER, CABLE

(583-23317-00-00)

1
Out of stock

28

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

29

NUT, HEXAGON

(90170-08180-00)

1
Out of stock

30

. HOLDER, AXLE (291-23167-60)

291-23167-61-00

1
Out of stock

31

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

32

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

33

GASKET

509-23158-L0-00

—

$14.34

In stock

34

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

35

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

36

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

37

PLATE, NUMBER

583-23485-00-00

1
Out of stock

38

EMBLEM

322-23395-00-00

1
Out of stock

39

STAY, PLATE

431-23486-02-00

1
Out of stock

40

O-RING (802)

93210-99103-00

—
Out of stock

41

HOLDER

(509-26393-00-00)

1
Out of stock
