1977 Yamaha TT500 (TT500D) Front Wheel Diagram

← All diagrams

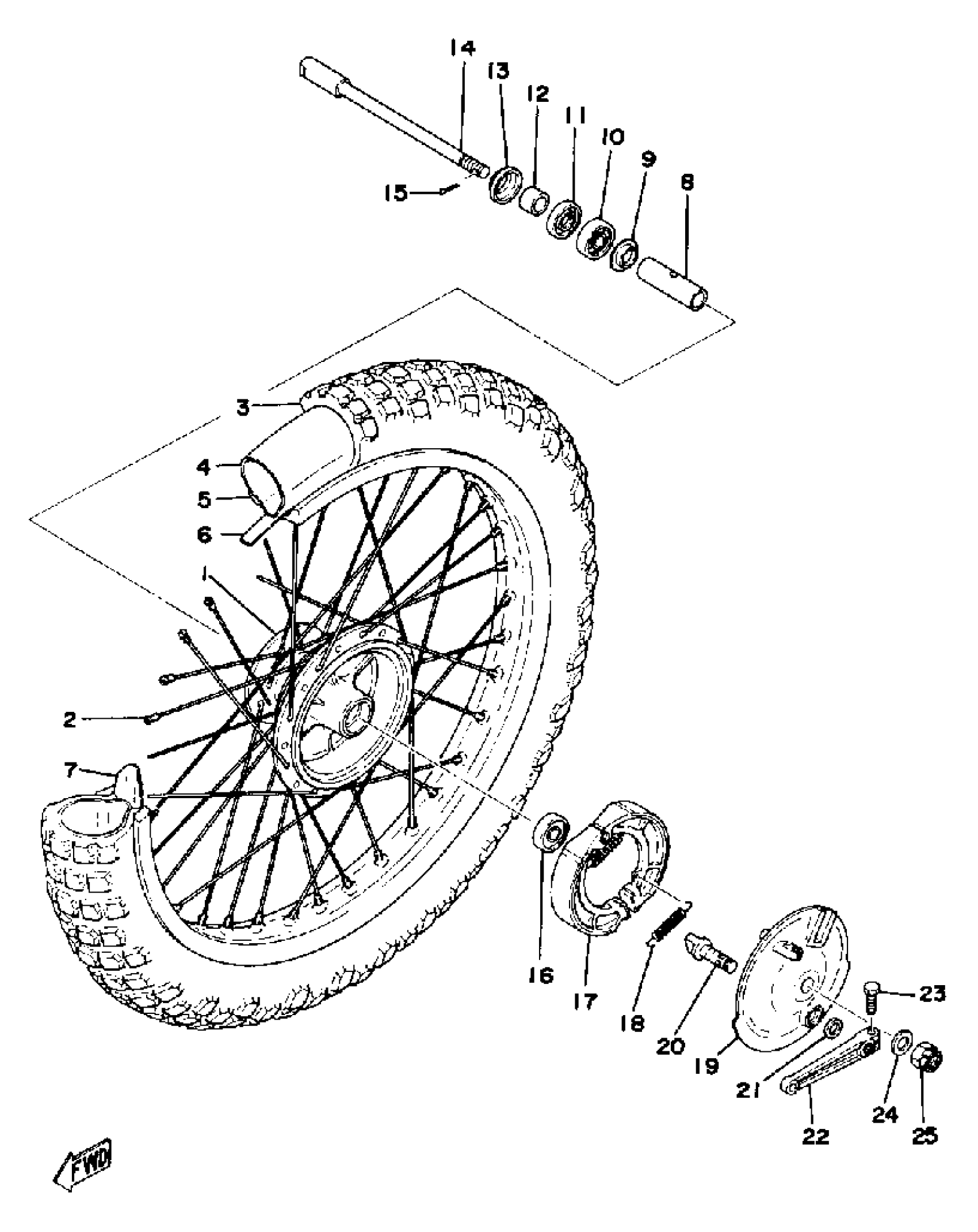

Find the part on the Front Wheel diagram for your 1977 Yamaha TT500 (TT500D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha TT500 (TT500D) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

1K7-25111-10-98

1
Out of stock

2

SPOKE SET, FRONT

2W6-25104-02-00

1
Out of stock

3

300X21 DUN SR SPRT

(94130-21248-00)

1
Out of stock

4

TUBE, FRONT (2A6)

94227-21123-00

1

$43.59

In stock

5

RIM 1.60X21

94416-21326-00

1
Out of stock

6

BAND, RIM

(94327-21024-00)

1
Out of stock

7

SPACER, BEAD

1T1-25194-00-00

—

$53.98

In stock

8

SPACER

90560-15116-00

1
Out of stock

9

FLANGE, SPACER

146-25116-00-00

1
Out of stock

10

BEARING

93306-20205-00

1

$32.63

In stock

11

OIL SEAL (20X35X7-136)

93102-20009-00

1

$9.10

In stock

12

COLLAR (322-25183-00)

90387-15418-00

1
Out of stock

13

COVER, HUB DUST

322-25118-00-00

1

$16.17

In stock

14

AXLE, WHEEL

583-25181-00-00

1
Out of stock

15

PIN, COTTER

91490-30030-00

1

$7.15

In stock

16

BEARING(3DL)

93306-20226-00

—

$33.15

In stock

17

BRAKE SHOE KIT

322-W253A-10-00

—

$31.99

In stock

18

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

19

PLATE, BRAKE SHOE

(483-25121-00-98)

1
Out of stock

20

CAMSHAFT

23X-25151-00-00

1
Out of stock

21

SEAL, CAMSHAFT

137-25159-00-00

1
Out of stock

22

LEVER, CAMSHAFT 1

322-25155-00-00

1
Out of stock

23

BOLT, HEXAGON (462)

90101-06291-00

—

$6.68

In stock

24

WASHER, PLAIN

92990-14200-00

—

$1.71

In stock

25

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock
