1986 Yamaha TT350 (TT350S) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1986 Yamaha TT350 (TT350S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

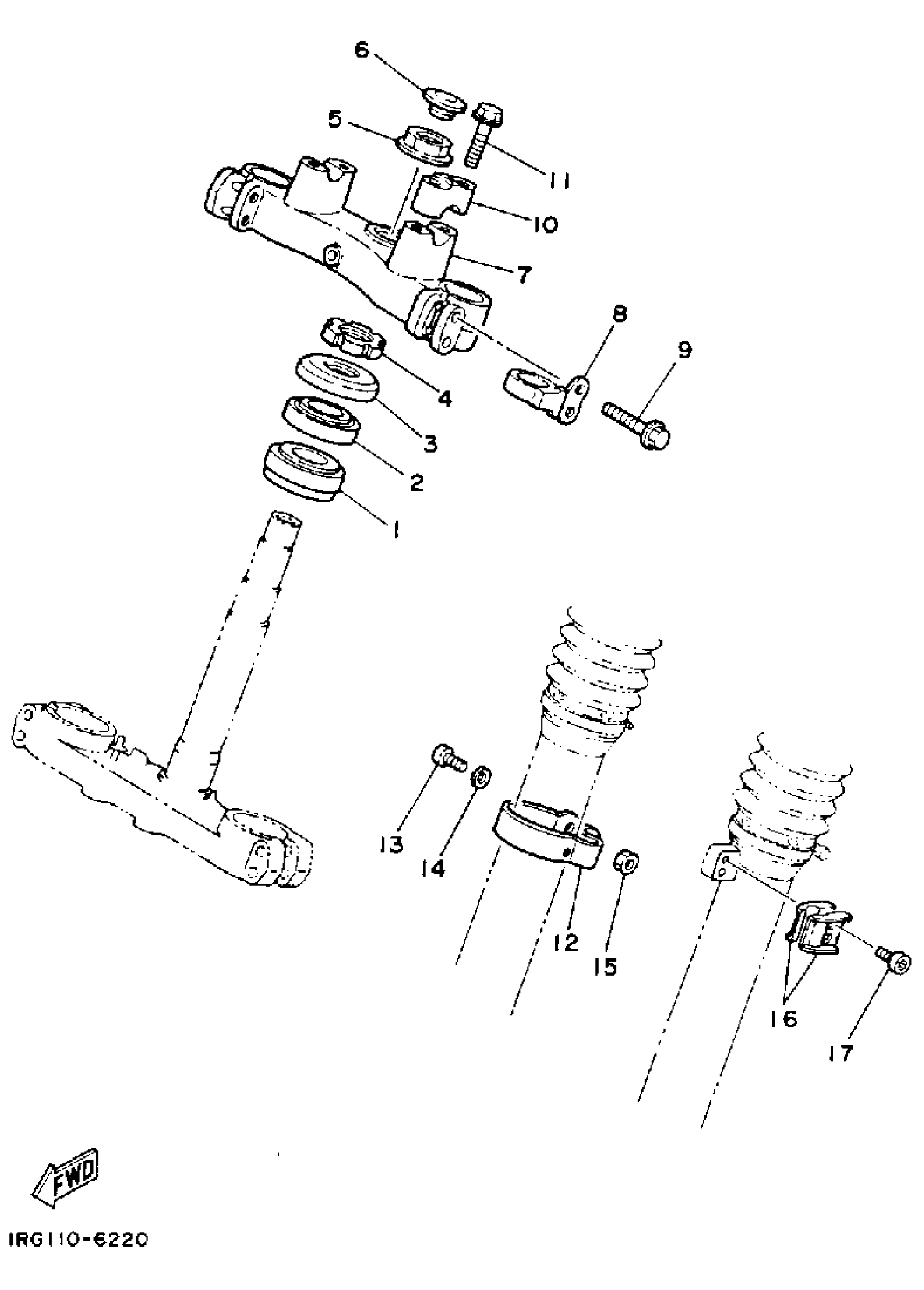

1986 Yamaha TT350 (TT350S) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$60.13

In stock

2

BRG, TAPERED ROLLER (409)

93332-00001-00

1
Out of stock

3

COVER, BALL RACE 2

1W1-23416-00-00

—

$25.83

In stock

4

NUT

90179-25004-00

1

$20.78

In stock

5

NUT

90179-22330-00

1
Out of stock

6

CAP

34K-2319U-00-00

1
Out of stock

7

CROWN, HANDLE

1LN-23435-01-98

1
Out of stock

8

HOLDER, WIRE

3R4-23317-00-00

1

$29.67

In stock

9

BOLT, FLANGE

95814-08040-00

1

$3.15

In stock

10

HOLDER, HANDLE UPPER

1E6-23441-00-00

1

$22.38

In stock

11

BOLT, FLANGE

95817-08035-00

1

$6.68

In stock

12

HOLDER, CABLE 1

26A-23318-00-00

1

$33.20

In stock

13

SCREW, PANHEAD (A93)

98580-05525-00

1

$1.54

In stock

14

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

15

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

16

CLAMP(26A)

90465-16258-00

—
Out of stock

17

BOLT,SOCKET

91317-06012-00

—

$6.17

In stock
