1986 Yamaha TT350 (TT350S) Handlebar - Cable Diagram

← All diagrams

Find the part on the Handlebar - Cable diagram for your 1986 Yamaha TT350 (TT350S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

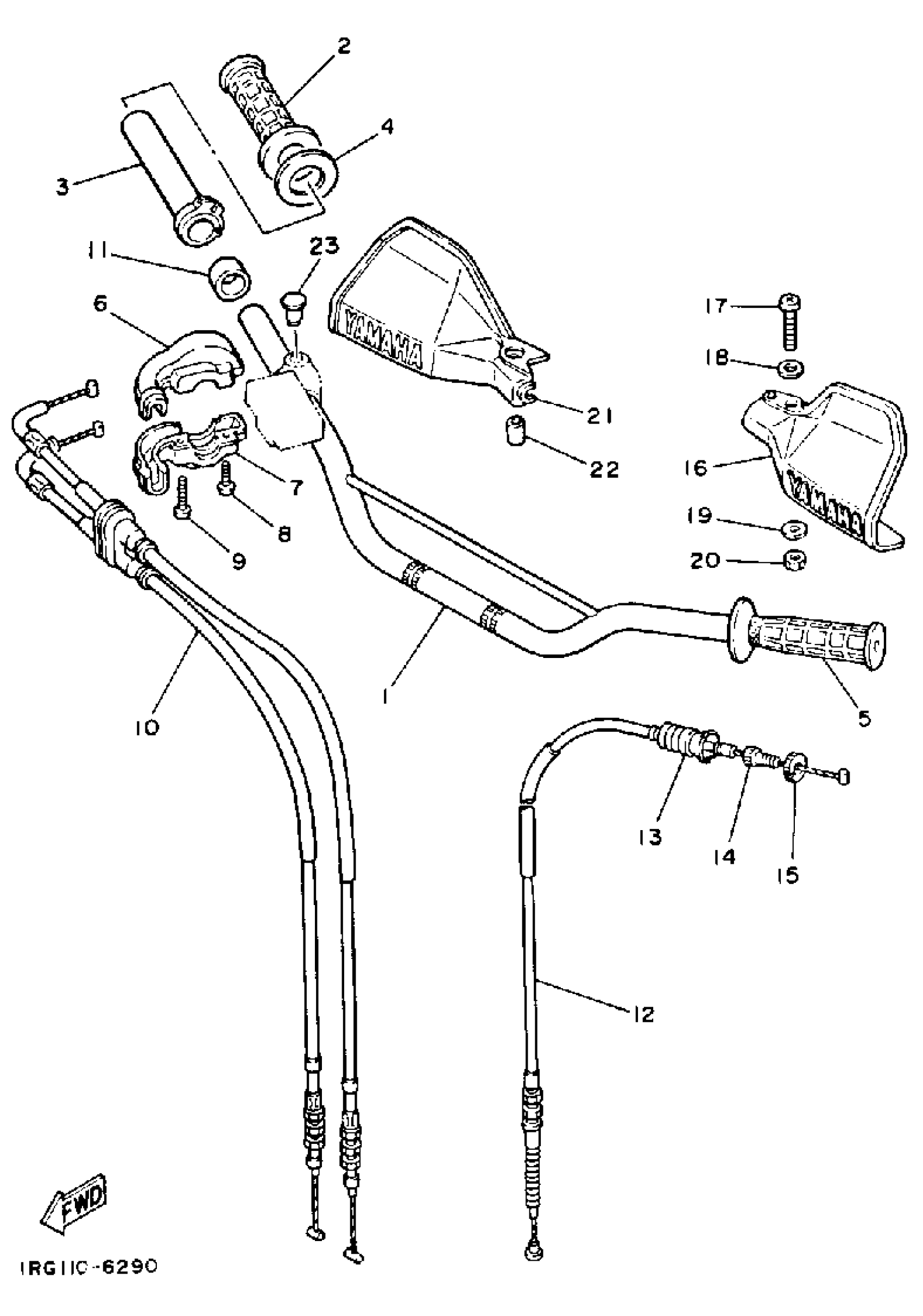

1986 Yamaha TT350 (TT350S) Handlebar - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

1LN-26111-00-00

1
Out of stock

2

GRIP (R.H)

1LX-26242-01-00

1

$29.77

In stock

3

TUBE, THROTTLE GUIDE

1RF-26243-00-00

1
Out of stock

4

RING, LEAF

3Y1-26249-00-00

1

$8.54

In stock

5

GRIP (L.H)

1LX-26241-01-00

1

$28.30

In stock

6

CAP, GRIP UPPER

34K-26281-00-00

—
Out of stock

7

CAP, GRIP LOWER

1VJ-26282-00-00

—
Out of stock

8

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

9

SCREW, PAN HEAD(4MY)

98507-05025-00

1

$6.18

In stock

10

THROTTLE CABLE ASSY

30X-26302-01-00

1
Out of stock

11

COLLAR(38W)

90387-224L9-00

1

$6.98

In stock

12

CABLE, CLUTCH

1LN-26335-00-00

1
Out of stock

13

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

14

BOLT (23X)

90123-08090-00

1

$14.46

In stock

15

NUT

90179-08401-00

1
Out of stock

16

GUARD, BRUSH 1

1LN-26141-00-00

1
Out of stock

17

SCREW, PAN HEAD(6H4)

97885-06035-00

1

$6.38

In stock

18

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

19

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

20

NUT(650)

95380-06700-00

—

$6.17

In stock

21

GUARD, BRUSH 2

3TB-26142-00-00

1
Out of stock

22

COLLAR (899 INTAKE)

90387-06500-00

—
Out of stock

23

PLUG (341-26329-00)

90338-09012-00

—

$7.26

In stock
