1982 Yamaha TT250 (TT250J) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 1982 Yamaha TT250 (TT250J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

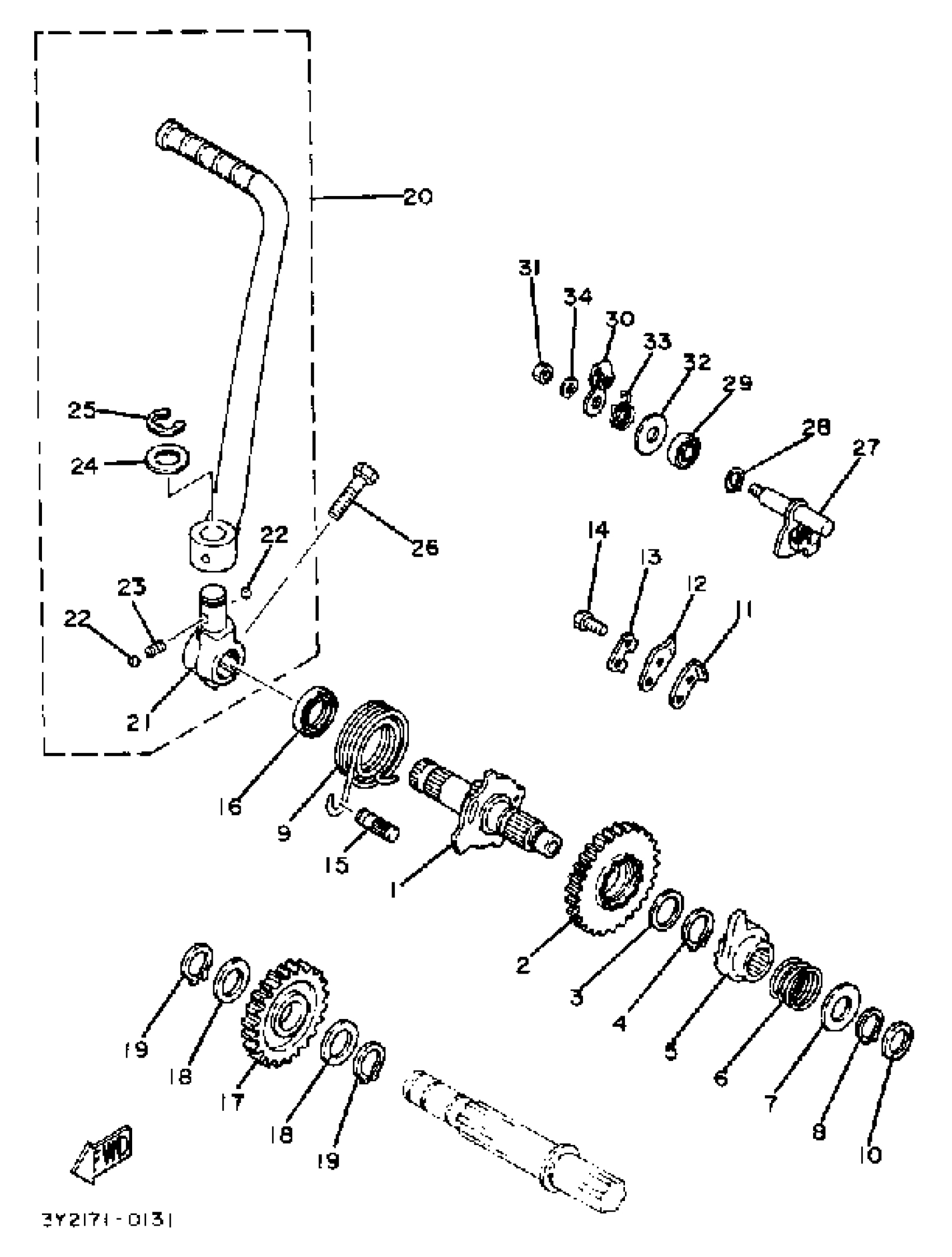

1982 Yamaha TT250 (TT250J) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK AXLE ASSY

3Y1-15660-00-00

1
Out of stock

2

GEAR, KICK

30X-15641-01-00

1
Out of stock

3

WASHER, PLATE (2K7)

90201-20685-00

1

$5.69

In stock

4

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

5

WHEEL, RATCHET

3Y1-15671-00-00

—
Out of stock

6

SPRING COMPRESSION168156750000

90501-16107-00

—
Out of stock

7

WASHER, PLAIN (1JL)

90201-155K6-00

—
Out of stock

8

CIRCLIP(1AR)

99009-15400-00

1

$5.10

In stock

9

SPRING, TORSION

90508-324B5-00

—
Out of stock

10

WASHER (566)

90201-15701-00

1

$6.17

In stock

11

STOPPER

2NX-15668-00-00

1
Out of stock

12

GUIDE, RATCHET WHEEL

2NX-15674-00-00

1

$8.71

In stock

13

WASHER, LOCK

214-15686-00-00

1

$6.38

In stock

14

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

15

STOPPER, KICK SPRING

248-15668-00-00

1
Out of stock

16

OIL SEAL (20X30X7-371)

93102-20108-00

—

$9.17

In stock

17

GEAR, KICK IDLE

3Y1-15651-00-00

—

$66.37

In stock

18

WASHER PLATE 328171160000

90201-20276-00

—
Out of stock

19

CIRCLIP(1AR)

99009-20400-00

—
Out of stock

20

KICK CRANK ASSEMBLY

3Y1-15620-01-00

1
Out of stock

21

. BOSS, KICK CRANK

3Y1-15621-01-00

1
Out of stock

22

BALL (12R)

93507-32031-00

—
Out of stock

23

. SPRING, COMPRESSION

90501-10589-00

1
Out of stock

24

WASHER (3XVC)

90201-153A1-00

—

$6.71

In stock

25

CIRCLIP

99006-10600-00

—

$6.91

In stock

26

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

27

LEVER DCOMP ASSEMBLY

3Y1-1561A-02-00

1
Out of stock

28

CIRCLIP(10W)

99009-10400-00

—

$3.91

In stock

29

SEAL,OIL(SD 10-21-5 HS,3Y1)

93102-10207-00

—
Out of stock

30

LEVER, CABLE

(3Y1-1561G-02-00)

1
Out of stock

31

NUT(JN5)

95317-06700-00

—

$6.69

In stock

32

WASHER, PLATE(52H)

90201-105J4-00

—

$6.88

In stock

33

SPRING, TORSION

(90508-14481-00)

1
Out of stock

34

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock
