1982 Yamaha TT250 (TT250J) Electrical 1 Diagram

← All diagrams

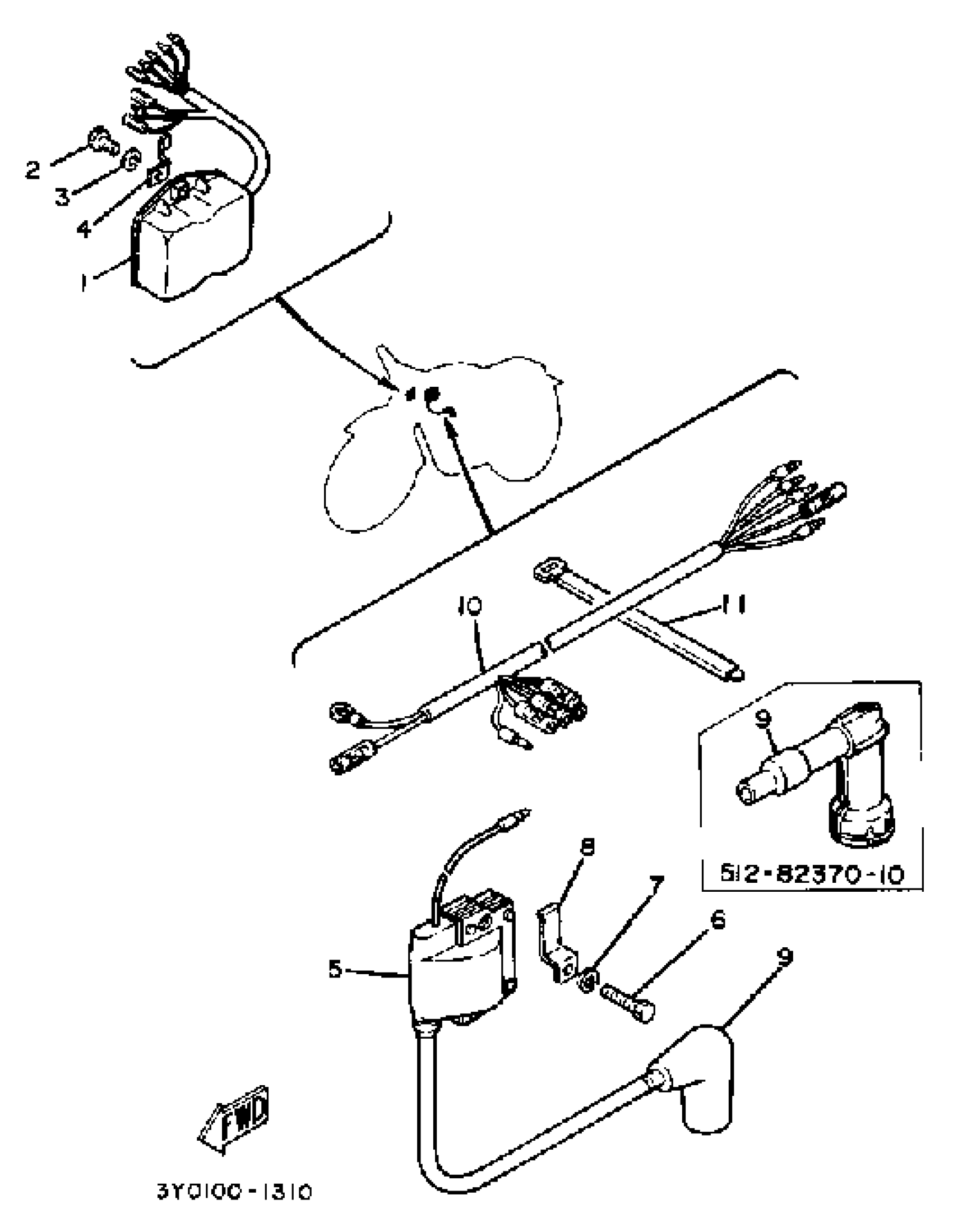

Find the part on the Electrical 1 diagram for your 1982 Yamaha TT250 (TT250J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha TT250 (TT250J) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

3Y1-85540-20-00

1
Out of stock

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

CLAMP

(90462-08068-00)

1
Out of stock

5

IGNITION COIL ASSY

355-82310-40-00

—

$182.78

In stock

6

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

CLAMP

(90463-14016-00)

1
Out of stock

9

PLUG CAP ASSY

7KA-82370-00-00

1

$62.25

In stock

9

PLUG CAP ASSY

56J-82370-00-00

1

$56.63

In stock

10

WIRE, LEAD

(3Y0-82521-01-00)

1
Out of stock

11

BAND

341-26397-01-00

1
Out of stock
