1982 Yamaha TT250 (TT250J) Lighting KIT Diagram

← All diagrams

Find the part on the Lighting KIT diagram for your 1982 Yamaha TT250 (TT250J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

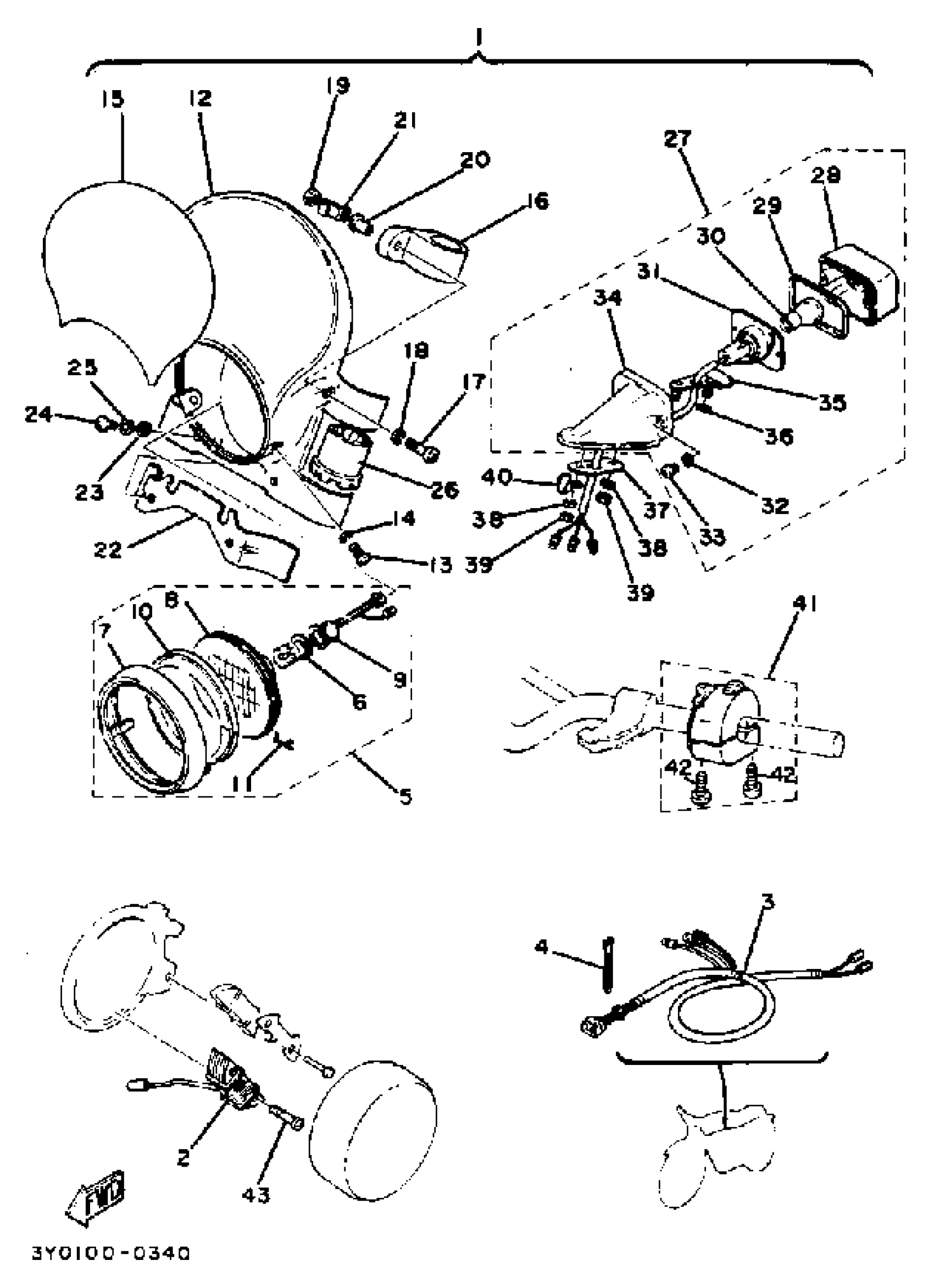

1982 Yamaha TT250 (TT250J) Lighting KIT Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TT250JHG LIGHT KIT

3Y0-W0089-00-00

1
Out of stock

2

. COIL, LIGHTING

3Y0-85533-20-00

1
Out of stock

3

WIRE HARNESS ASSEMBLY

(3Y0-82590-91-00)

1
Out of stock

4

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

5

UNAVAILABLE IN PRICE BOOK

3R-88411-06-00

1
Out of stock

6

. BULB, HL 6V25/25W

527-84114-09-XX

1
Out of stock

7

.. RIM, HEADLIGHT

3R8-84115-60-00

1
Out of stock

8

. LENS ASSEMBLY

3R8-84120-60-00

1
Out of stock

9

. SOCKET

1W2-84112-60-00

1
Out of stock

10

. COVER, HEADLIGHT

1W2-84144-60-00

1
Out of stock

11

. SPRING, REFLECTOR

1W2-84324-60-00

1
Out of stock

12

. BODY ASSEMBLY, HEADLIGHT

3Y0-84130-00-00

1
Out of stock

13

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

15

. EMBLEM, HEADLIGHT

3R8-84141-01-00

1
Out of stock

16

DAMPER

(3R8-84163-00-00)

1
Out of stock

17

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

18

WASHER, PLATE

90201-06747-00

—

$6.17

In stock

19

NUT SELFLOCKING (656)

90185-06062-00

—

$6.86

In stock

20

. COLLAR, SCREW

3R8-84133-00-00

1
Out of stock

21

CLAMP 363154850100

90462-05005-00

—

$6.92

In stock

22

. BRACKET, LOWER 1

3R8-84181-00-00

1
Out of stock

23

—

$6.42

In stock

24

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

. DAMPER

3R8-84164-00-00

1
Out of stock

27

TAILLIGHT ASSEMBLY

434-84500-64-00

1
Out of stock

28

LENS, TAIL LAMP

434-84521-69-00

—
Out of stock

29

RIM,TAILLIGHT

5AU-83323-01-00

1
Out of stock

30

BULB,TAIL LAMP(6V17/5.3W)

122-84514-30-00

1
Out of stock

31

. CORD, TAILLIGHT

434-84517-61-00

1
Out of stock

32

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

33

. SCREW, LENS FITTING

434-84524-61-00

1
Out of stock

34

. BRACKET, TAILLIGHT

434-84519-64-00

1
Out of stock

35

TAILLIGHT ASSEMBLY

434-84500-64-00

1
Out of stock

36

COLLAR

(434-84557-60-00)

1
Out of stock

37

WASHER, SPECIAL

1W2-84525-00-00

1
Out of stock

38

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

39

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

40

CLAMP 363154850100

90462-05005-00

—

$6.92

In stock

41

. SWITCH, HANDLE 2

3Y0-83975-00-00

1
Out of stock

42

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

43

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock
