1986 Yamaha TT225 (TT225S) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1986 Yamaha TT225 (TT225S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

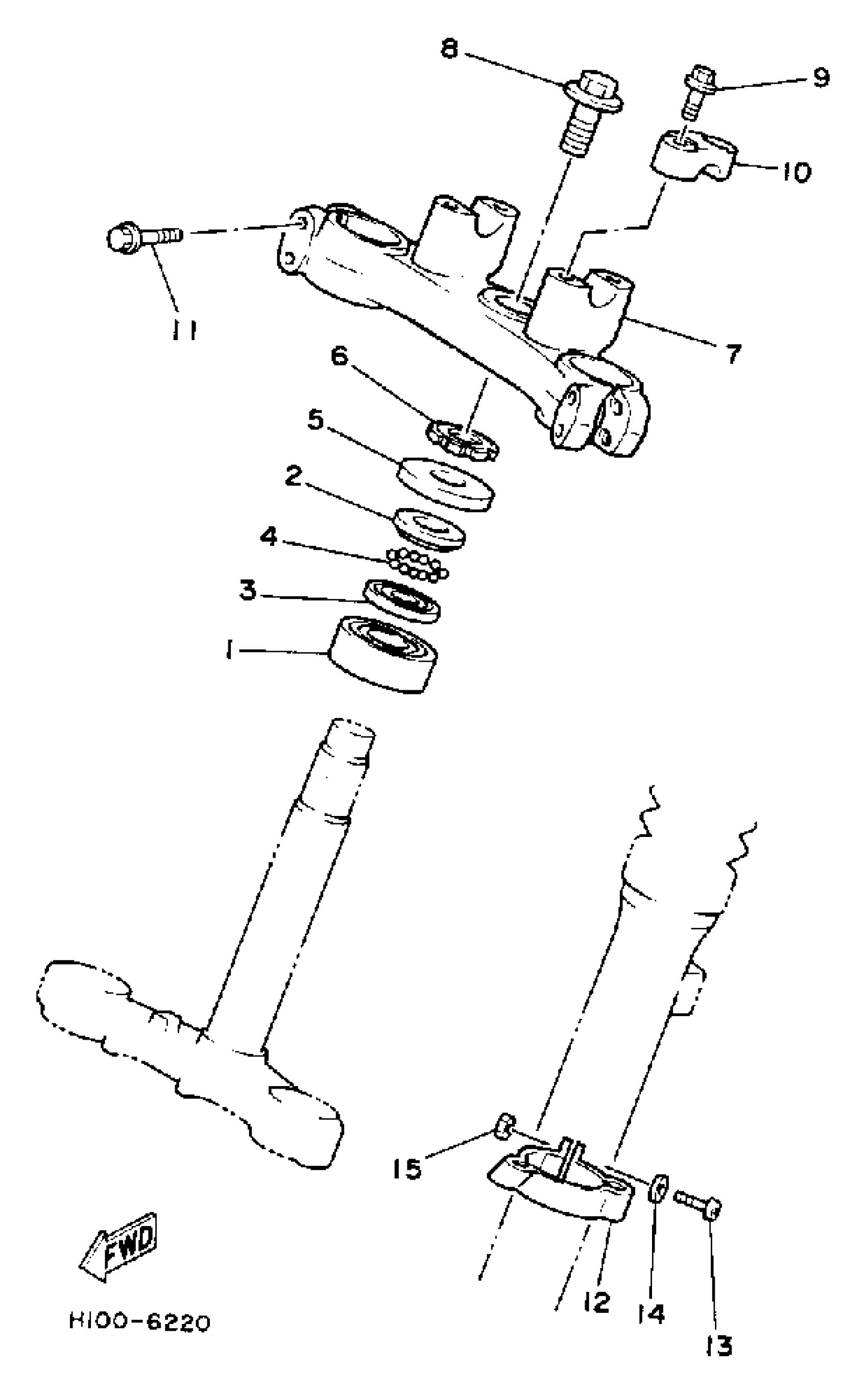

1986 Yamaha TT225 (TT225S) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$60.13

In stock

2

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

3

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

4

BALL

93503-16003-00

1

$2.14

In stock

5

COVER BALL RACE

10V-23416-01-00

—
Out of stock

6

NUT

90179-25004-00

1

$20.78

In stock

7

CROWN,HANDLE

99999-02625-00

1
Out of stock

8

BOLT, WASHER BASED(34X)

90105-14329-00

1
Out of stock

9

BOLT, FLANGE

95817-08040-00

1

$5.43

In stock

10

HOLDER, HANDLE UPPER

1E6-23441-00-00

1

$22.38

In stock

11

BOLT, FLANGE

95817-08035-00

1

$6.68

In stock

12

HOLDER, CABLE

34X-23317-00-00

1

$6.52

In stock

13

SCREW, PAN HEAD(4MY)

98507-05018-00

1

$2.48

In stock

14

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

15

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock
